Rear
Rear

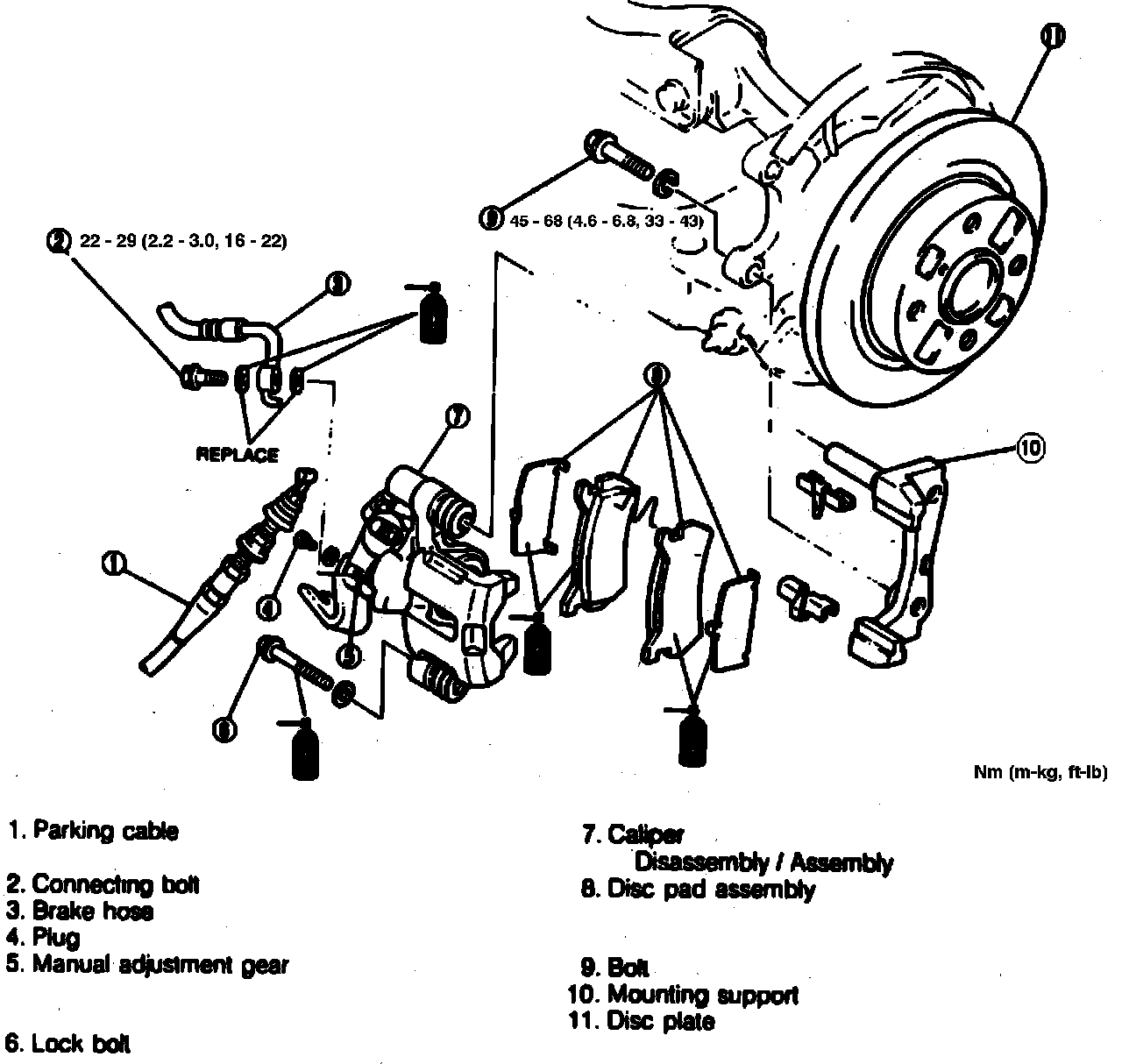

Fig. 8 Rear Disc Brake Caliper Replacement Procedure:
Remove and install parts in order as shown in
Fig. 8.
