Solenoid Valve Inspection

1. Disconnect six pin hydraulic unit connector.
2. Measure resistance between terminals 4f and 4a, 4f and 4b, then 4e and 4c, 4e and 4d, Fig. 132; resistance should be approximately 3 ohms.

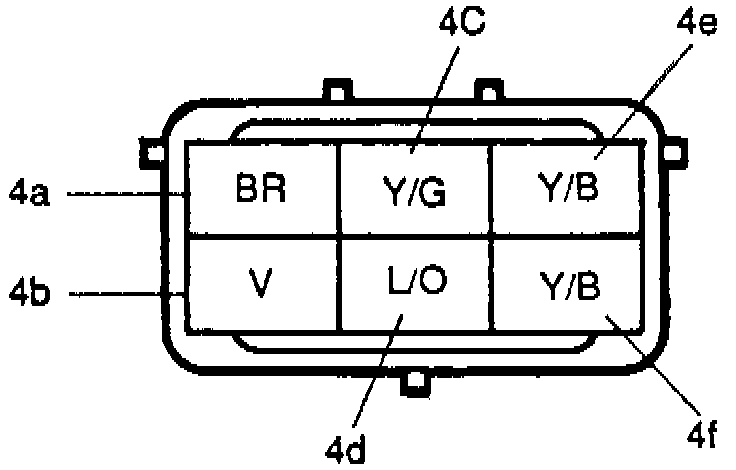

Fig. 132 6-pin Hydraulic Unit Connector Identification:

3. If not as specified, check hydraulic unit wiring harness or replace hydraulic unit if necessary.
