Torque Converter Clutch Solenoid: Service and Repair

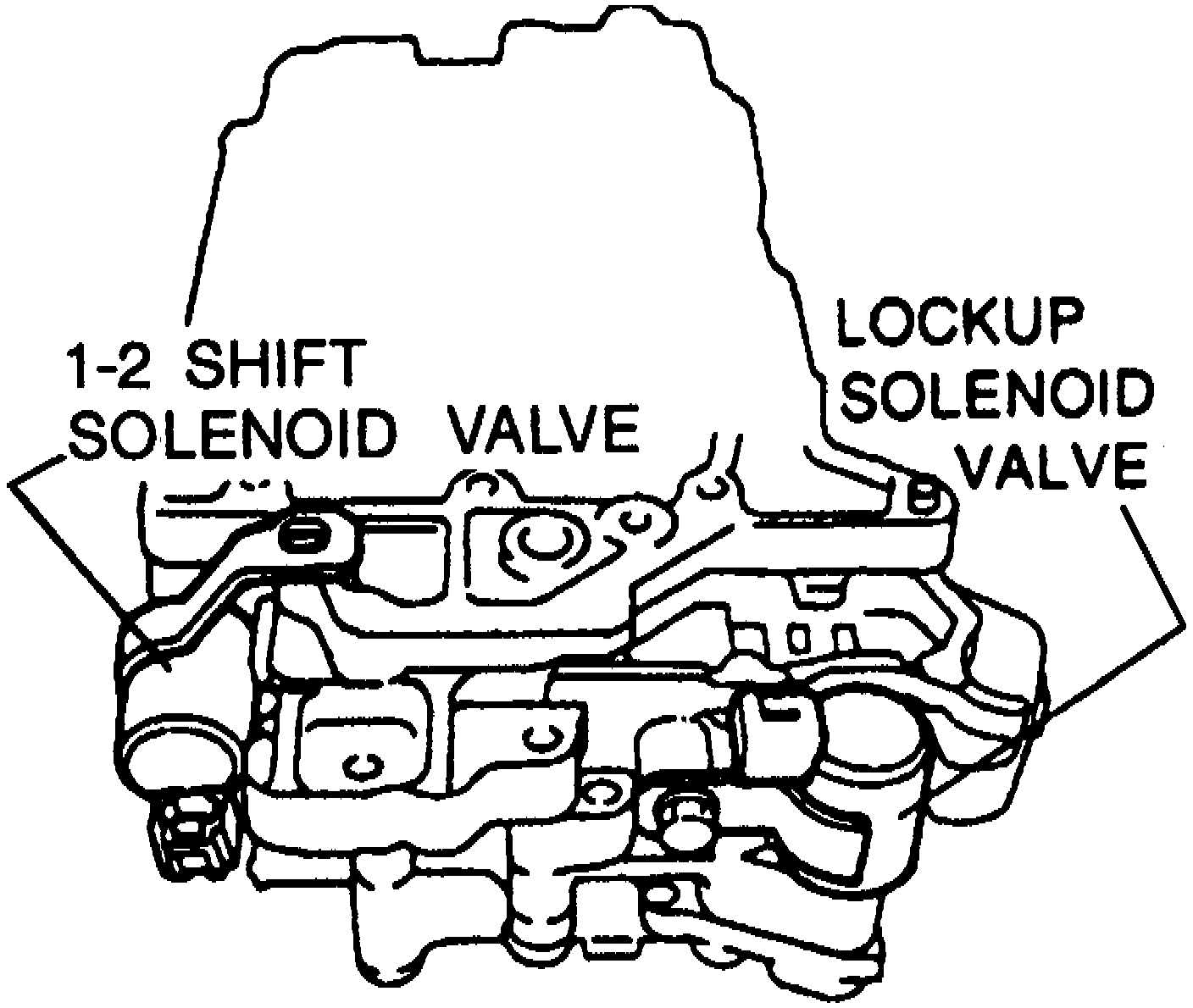

View: Solenoid Valve Locations On Control Valve Body:

REMOVAL
1. Disconnect the solenoid connector.
2. Remove the control valve body.
Valve Body
3. Remove the solenoid valve.

INSTALLATION
1. Apply ATF to a new 0-ring and install it, the new solenoid valve, and the oil strainer assembly.

Tightening torque: 7.8 - 11 Nm (69 - 95 in.lb.)

2. Install the control valve body.

CAUTION: Apply a light coat of silicone sealant to both sides of a new gasket, and install it to the oil pan.

Tightening torque: 8.3 - 11 Nm (74 - 95 in.lb.)

3. Connect the solenoid connector.
4. Refill automatic transaxle to the proper level and check for leaks.
5. Drive the vehicle and check the shift points, shift schedule, and shift shock.
