Home
>>
Mazda
>>
1994
>>
MX-3 L4-1598cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

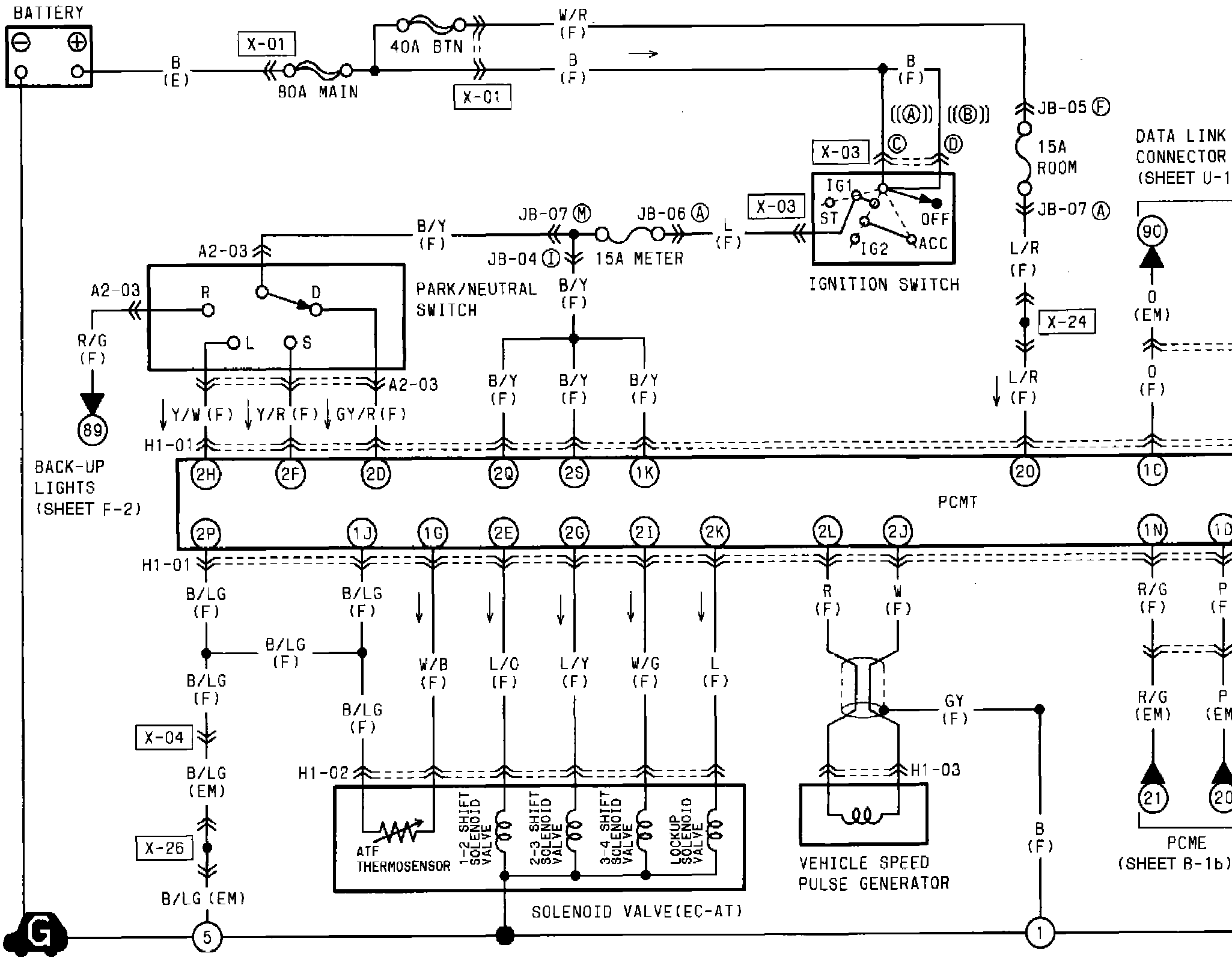

�QzQEC-AT Control System:
