Symptom Related Diagnostic Procedures

Refer to Fig. 7 through 9 when troubleshooting the starting system.

Fig. 7 Starting System Troubleshooting: Engine Will Not Crank, Starter Motor Does Not Operate:

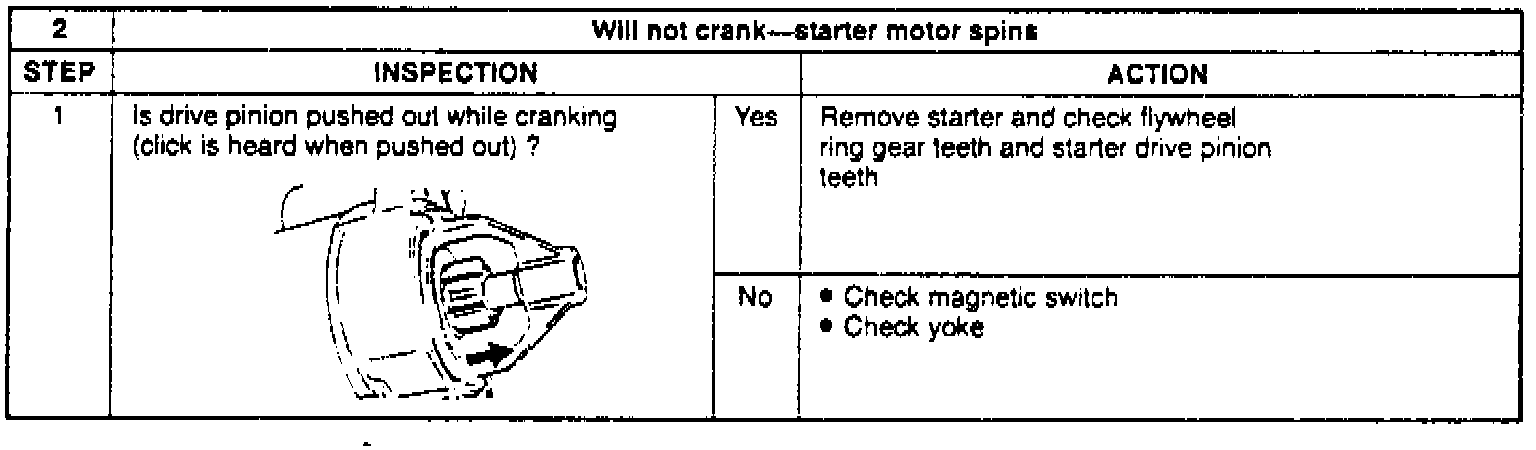

Fig. 8 Starting System Troubleshooting: Engine Will Not Crank, Starter Motor Operates:





Fig. 9 Starting System Troubleshooting: Engine Cranks Slowly:
