Throttle Cable/Linkage: Adjustments

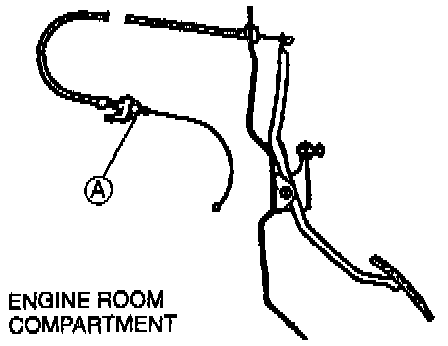

View: (A) Adjustment Nut:

1. Depress the accelerator pedal fully. Check if the throttle valve is fully opened.
2. Inspect the accelerator cable play.

Play 1.0 - 3.0 mm (0.04 - 0.12 in.).

3. Loosen nut (A) to adjust the play if necessary.
