Accelerator Pedal: Testing and Inspection

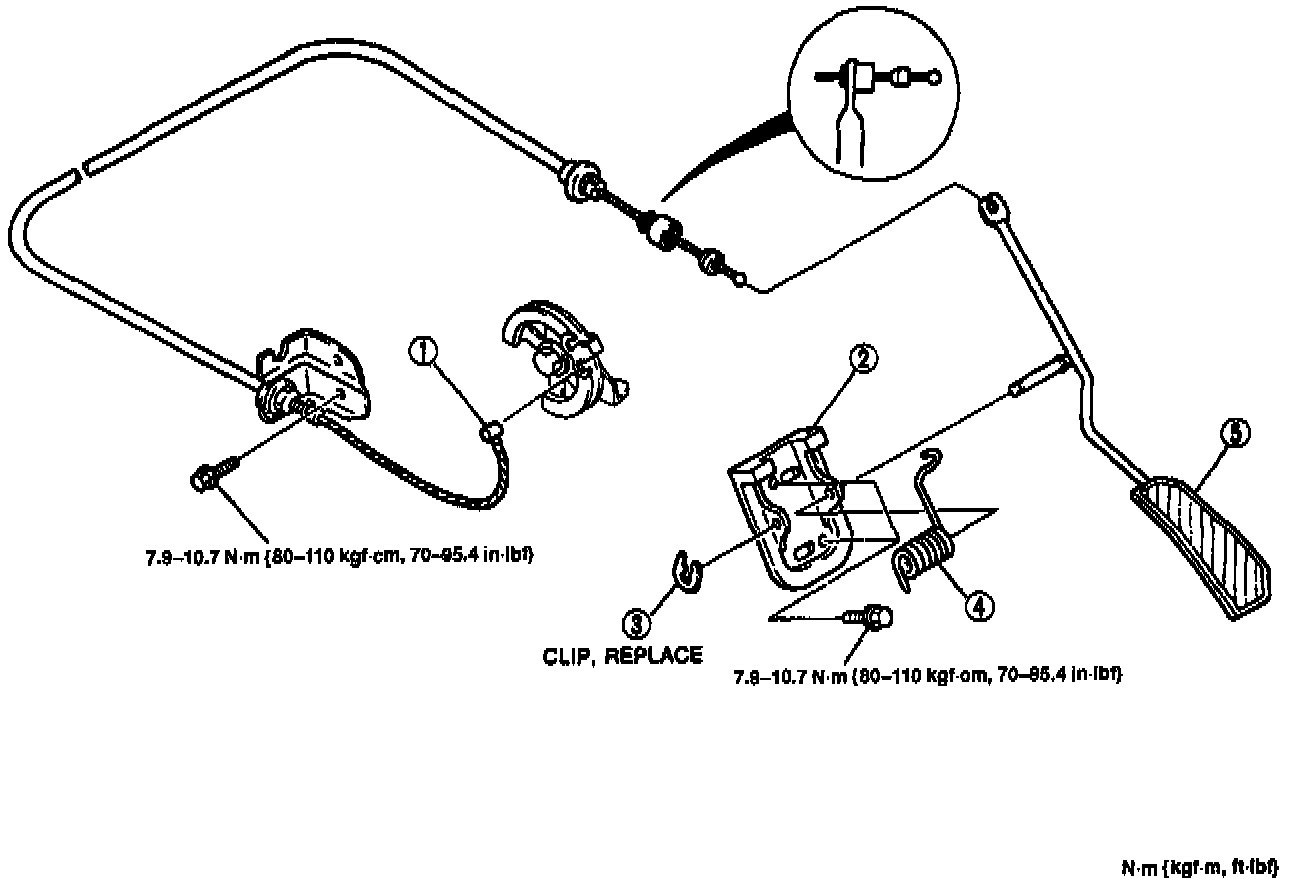

View: Accelerator Pedal And Cable:

1. Accelerator cable
2. Retainer
3. Clip
4. Return spring
5. Accelerator pedal

Visually check the accelerator pedal and retainer for cracks and damage. Repair or replace as necessary.
