Home
>>
Mazda
>>
1994
>>
MX-3 L4-1598cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
A-1 MTX
A-1 MTX

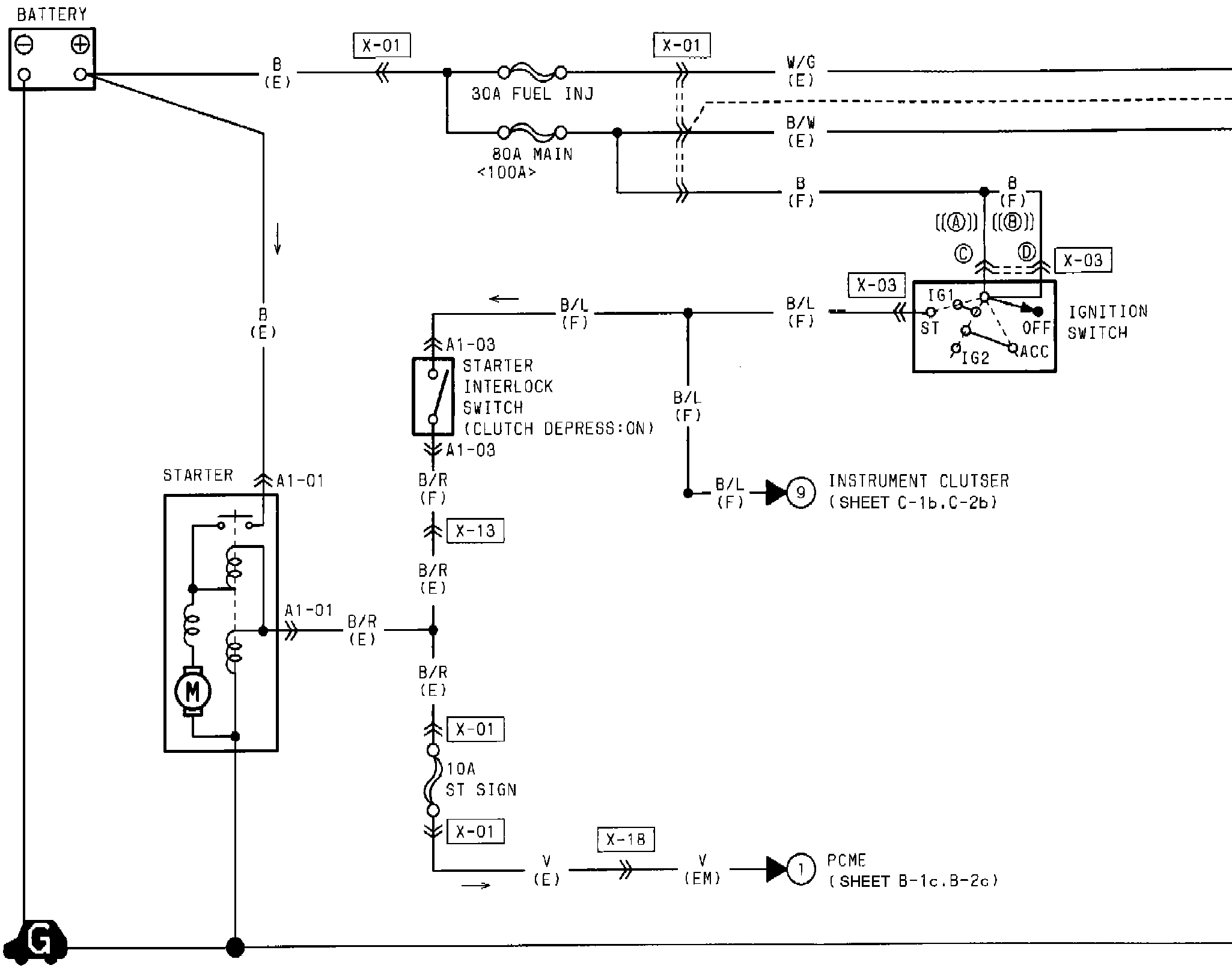

�]MTX Starting System, Charging System:
