Home >> Mazda >> 1994 >> MX-3 L4-1598cc 1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit Diagrams >> I-2

I-2

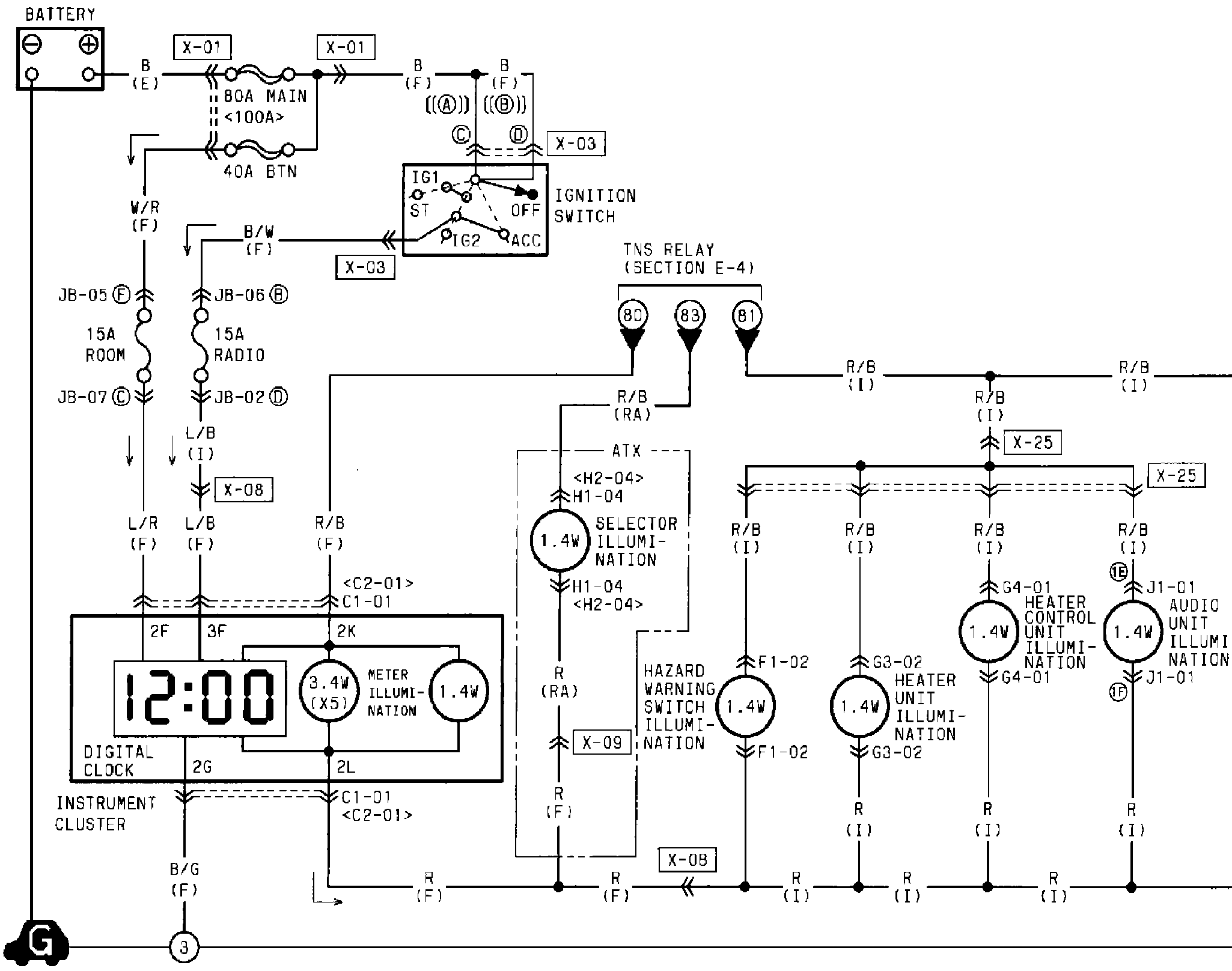

�rIllumination Lights-Digital Clock:
