Mazda
>>
1994
>>
MX-3 L4-1598cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Circuit Diagrams
>>
D-2
D-2

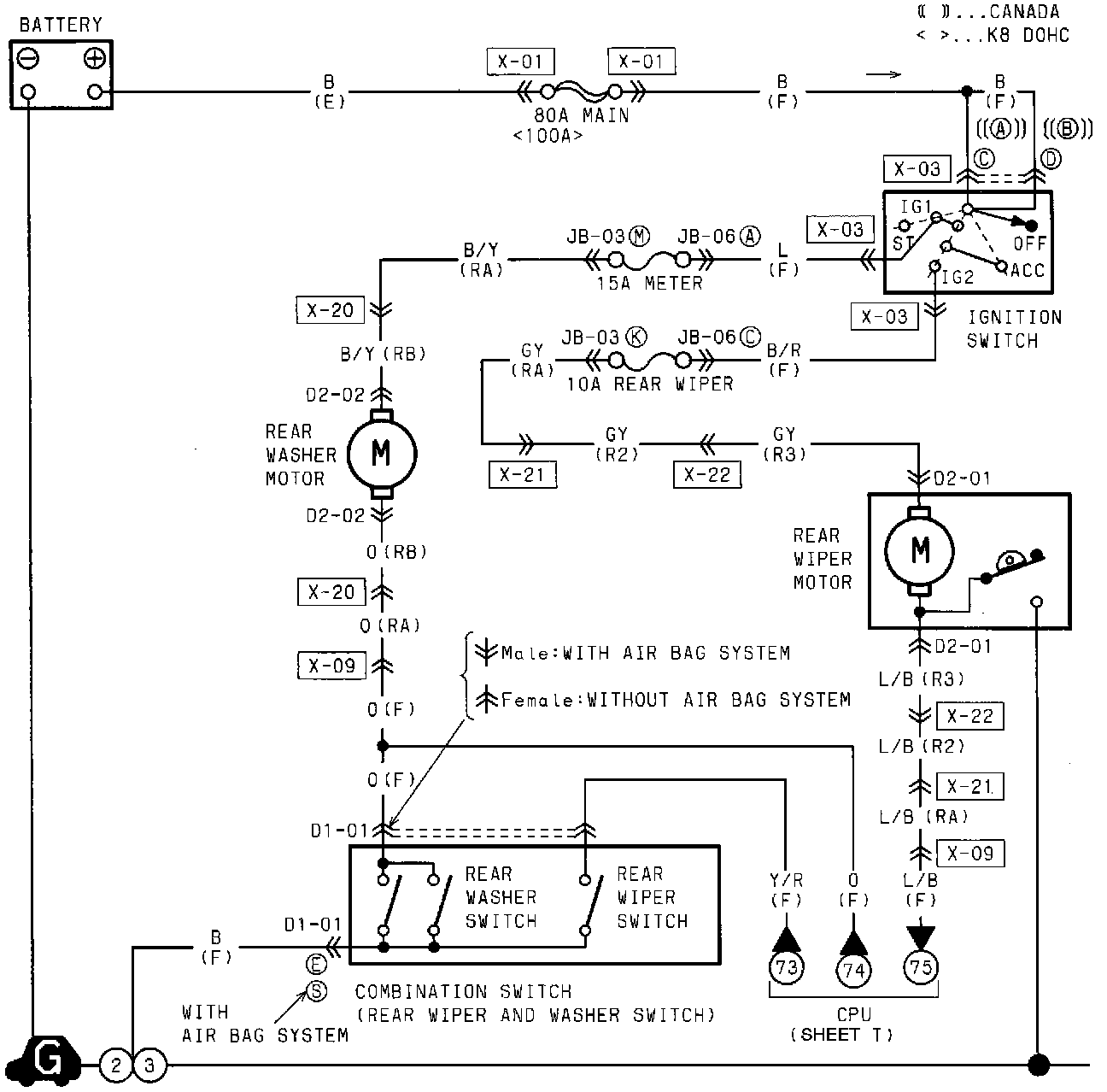

Rear Wiper And Washer:
