Home >> Mazda >> 1994 >> MX-3 L4-1598cc 1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit Diagrams >> B-1B

B-1B

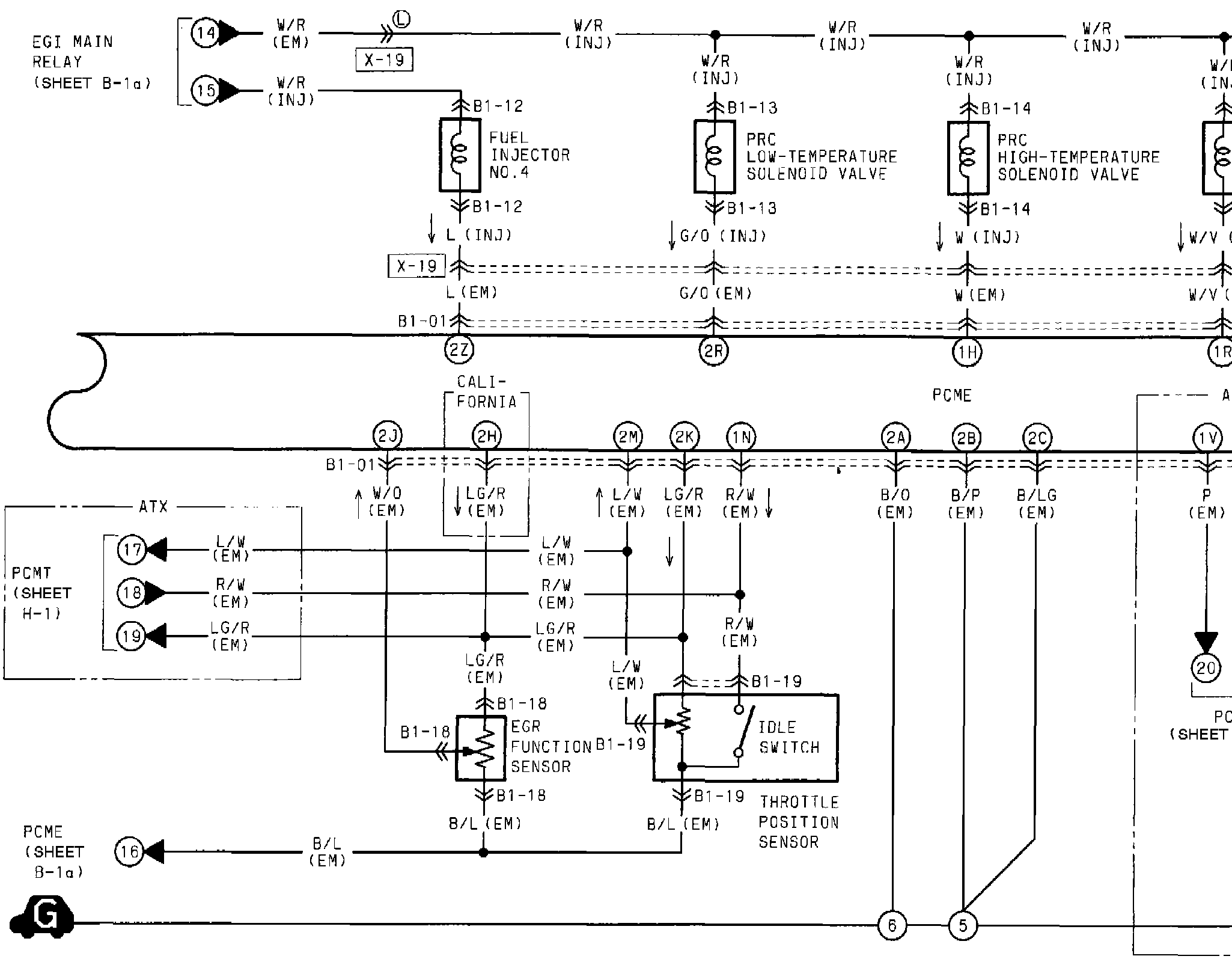

�/q{Engine Control System:
