Antilock Brakes /Traction Control System

Refer to diagnostic trouble code interpretation chart, Fig. 42, then to diagnostic charts, Fig. 43, as directed.

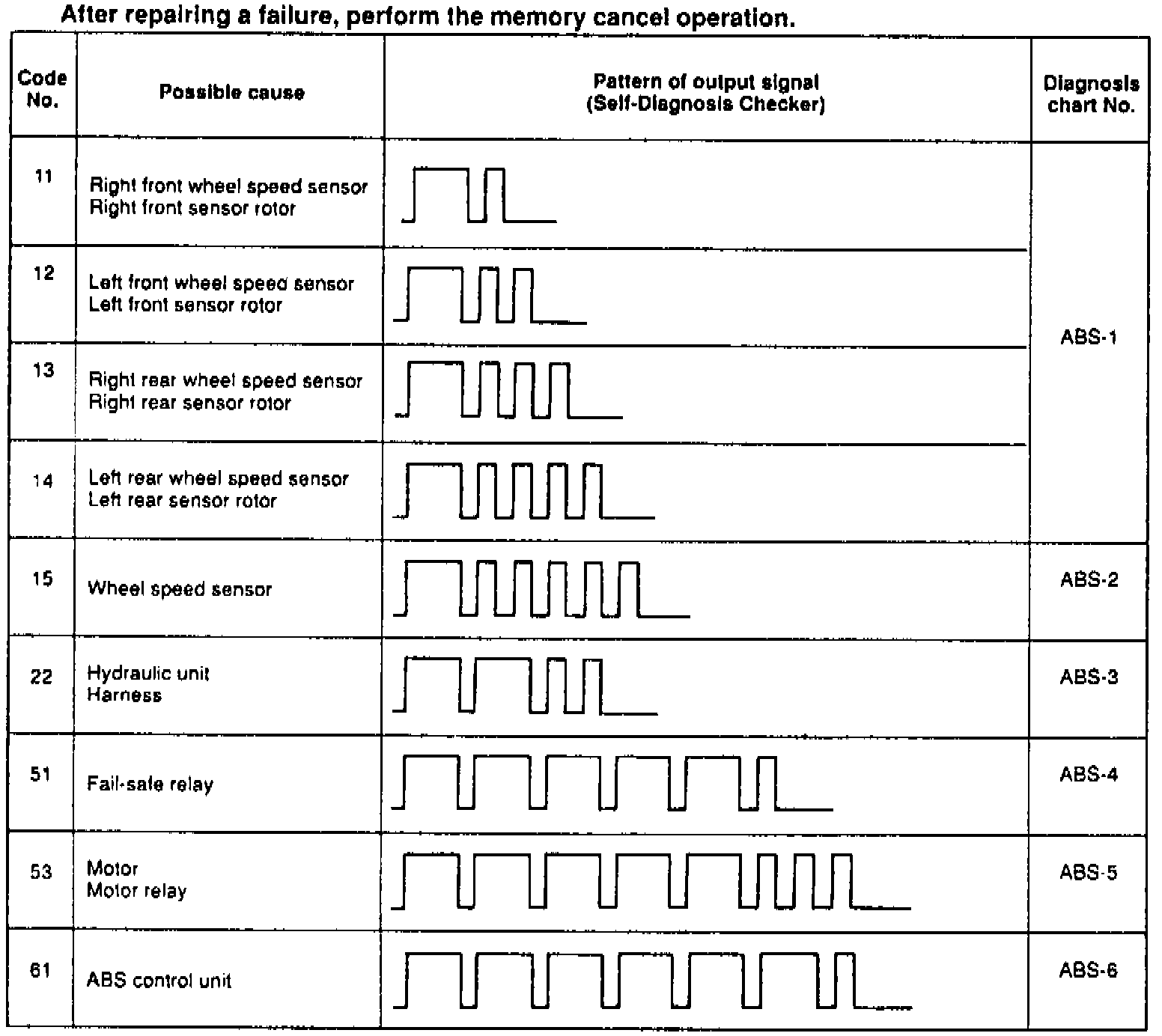

Fig. 42 Diagnostic Trouble Code Chart:

Fig. 43 Anti-lock Brake System Diagnosis (part 1 Of 3):

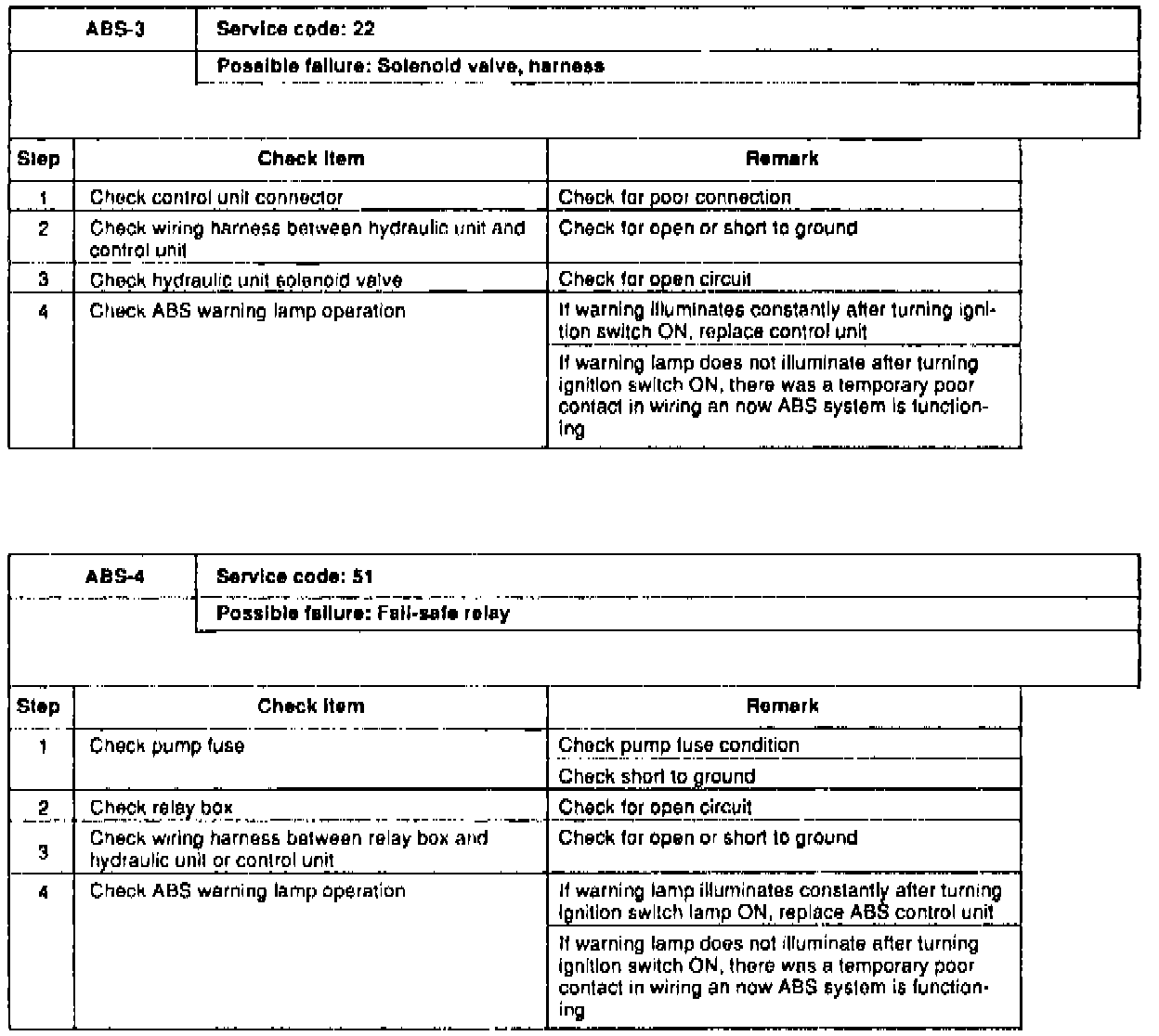

Fig. 43 Anti-lock Brake System Diagnosis (part 3 Of 3):

Fig. 43 Anti-lock Brake System Diagnosis (part 3 Of 3):
