Automatic Transaxle

Disassemble driveshaft in numerical order Fig. , noting the following:

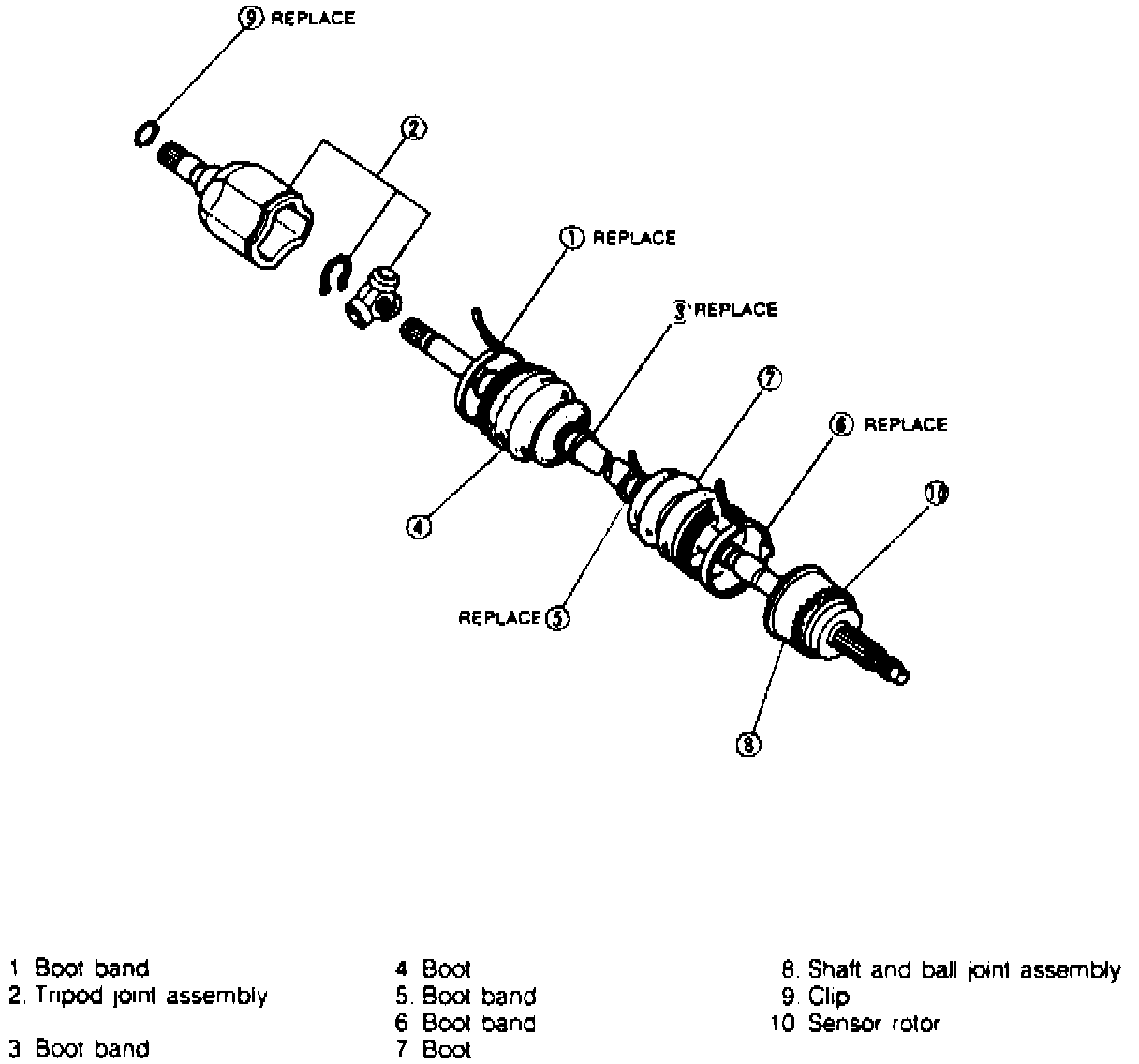

Fig. 21 Exploded View Of Driveshaft:

1. Disassemble tripod joint as follows:
a. Remove snap ring using snap ring pliers, then remove tripod joint bearing.
b. Disassemble joint shaft assembly.
