Pinion Gear: Service and Repair

DISASSEMBLY

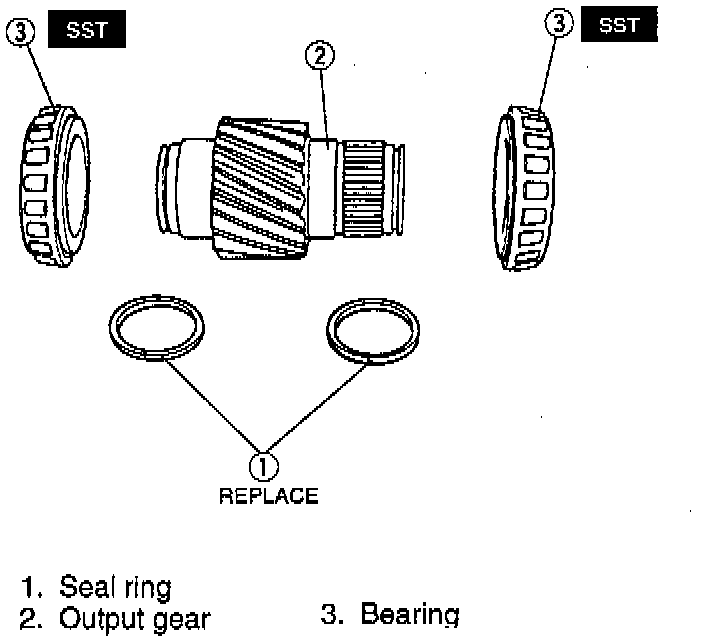

- Disassemble in the order shown in the illustration, referring to the following note:





Bearing
^ Remove the bearings from the output gear by using the Special Service Tool (SST).

ASSEMBLY
- Assemble in the reverse order of disassembly, referring to the following steps.

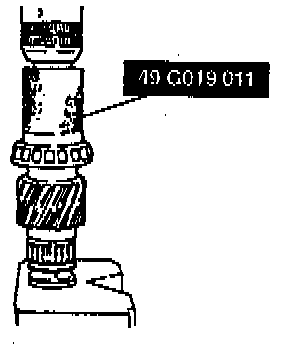

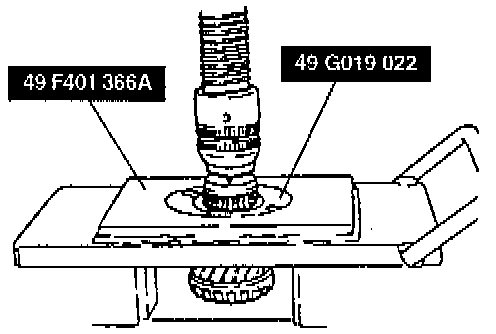

1. Press the new bearings onto the output gear by using the SST.

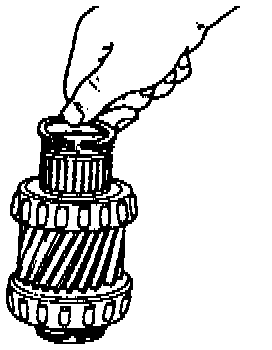

2. Apply ATF to new seal rings and assemble them to each side of the output gear. Seal ring outer diameter is 36.9 mm (1.45 inch).
