Air Bag Module Disposal Procedure

Before scrapping a vehicle with an undeployed air bag module, deploy the air bag. Never dispose of a live air bag module. If the Mazda deployment tool is not available, consult the nearest Mazda representative for assistance.

AIR BAG DEPLOYMENT

1. Move vehicle to an open space, away from strong winds, and open all vehicle doors.
2. Deactivate the audio antitheft system, if installed.
3. Disconnect negative battery cable.
4. Follow appropriate procedure for driver side or passenger side module.

Driver Side Air Bag Module

Driver Side Air Bag Module Deployment:

1. Make sure module is firmly mounted to steering wheel.
2. Remove driver side undercover and lower panel.
3. Disconnect the orange and blue clock spring connectors.
4. Inspect the Mazda service tool.

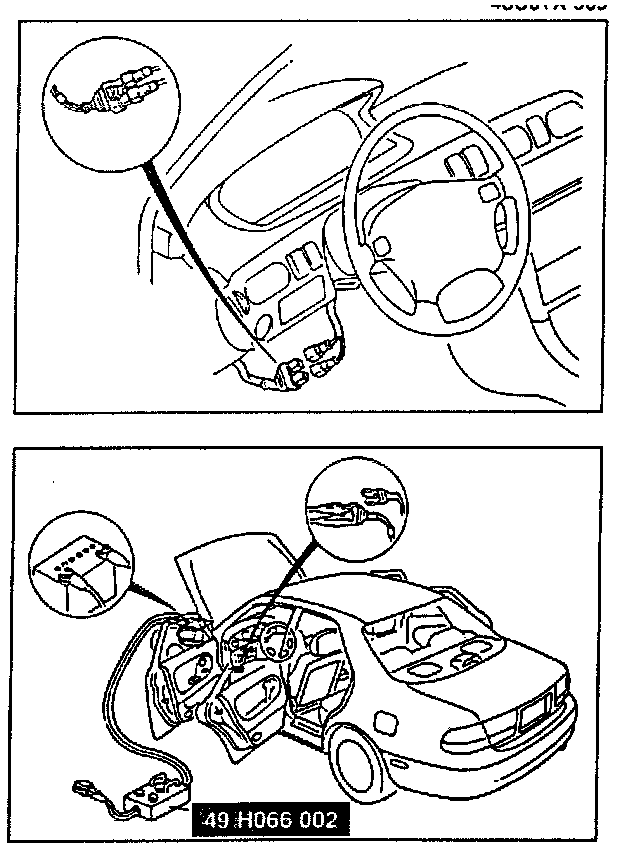

5. Connect service tool to clock spring connector as shown.


Passenger Side Air Bag Module

Air Bag Modules Connectors Locations:

1. Remove glove compartment.
2. Disconnect the orange and blue module connector.
3. Inspect Mazda service tool.
4. Connect the service tool to the module.

5. Connect the red clip of the service tool to the positive batter terminal and the black clip to the negative terminal.
6. Verify that red light on service tool is illuminated.
7. Make sure all persons are standing at least 20 feet (6 m) from vehicle.
7. Press activation switch to deploy air bag.

AIR BAG DISPOSAL

WARNING: The air bag is hot immediately after it deploys. You can be burned. Do not touch the air bag module for at least 15 minutes after deployment.

WARNING: Pouring water on a deployed air bag is dangerous. The water will mix with the residual gases to form a gas that can make breathing difficult if inhaled. Do not pour water on the deployed air bag module.

WARNING: A deployed air bag module may contain deposits of sodium hydroxide, a caustic by-product of the gas-generated combustion. If this substance gets in your eyes or on your hands, it can cause irritation and itching. When handling a deployed air bag module, wear gloves and safety glasses.

1. Put on gloves and safety glasses.
2. Place the deployed module in a plastic bag, seal it, and then dispose of it.
3. Wash your hands when finished.
