Throttle Cable/Linkage: Adjustments

Accelerator Cable Adjustment:

1. Verify throttle valve is fully closed.

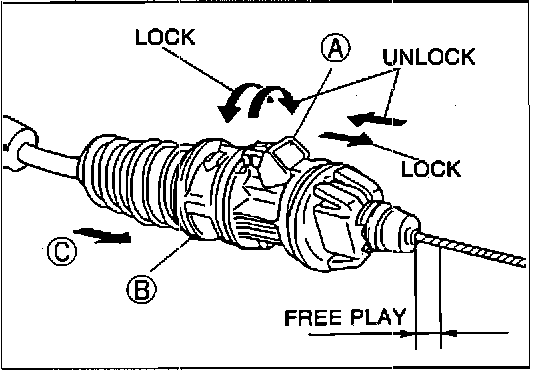

2. Check cable free play at engine end:

FREE PLAY: 0.06 - 0.17 in (1.5 - 4.5 mm)

3. If not as specified, adjust free play by turning stopper B while pressing lock button A to release lock.
4. Push spring in direction C and adjust free play.
5. Lock stopper B, then stopper A.
