Resistance Check

Injector Resistance Check:

CAUTION: Do not remove injectors from fuel distributor if not necessary.

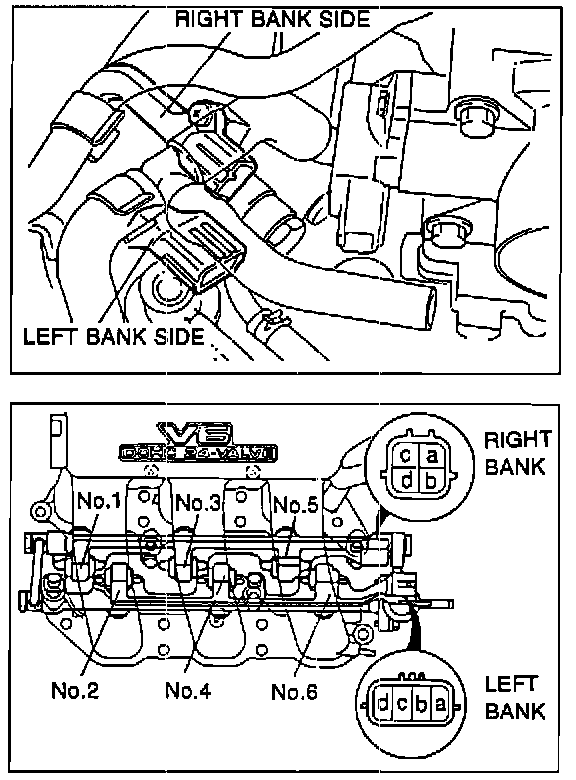

1. Unplug injector connectors.

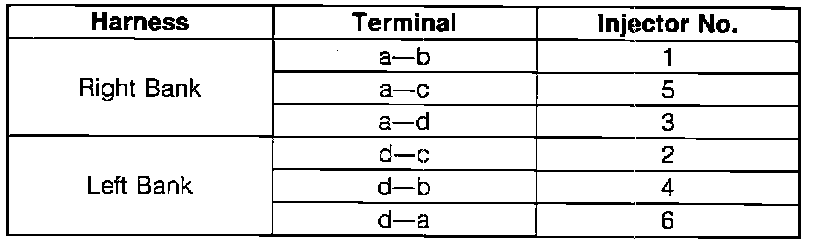

Injector Resistance Chart:

2. Measure resistance as shown on image chart. It should be approximately 13.8 ohms @ 68°F (20°C).
3. If not as specified, check for poor connections and check harness continutiy.
4. If harness is okay, replace injector(s).
