Intake Manifold: Service and Repair

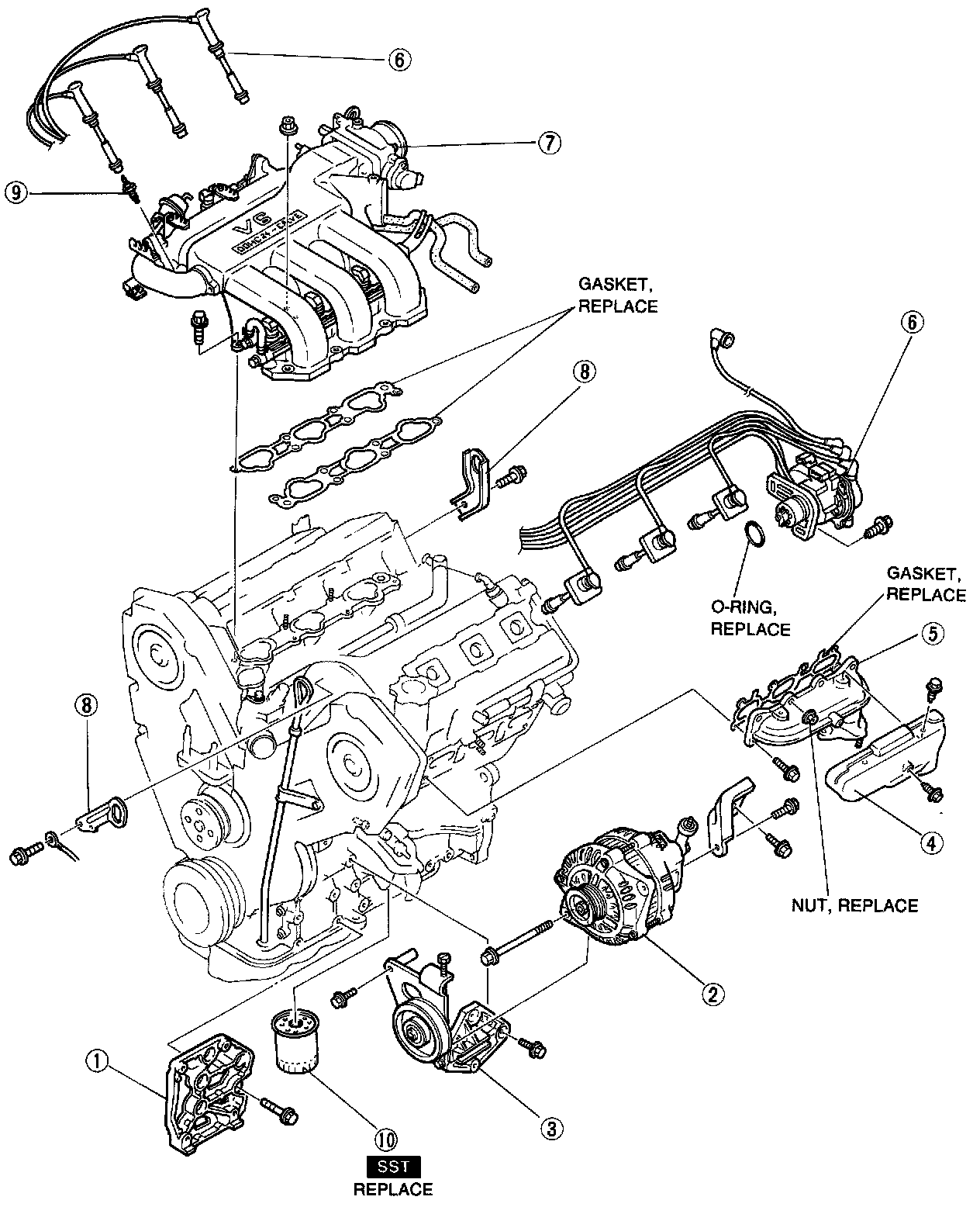

DISASSEMBLY
1. Drain the engine oil.
2. Disassemble in the order shown in the figure.






1. A/C compressor bracket (if equipped)
2. Alternator
3. Bracket and tensioner
4. Exhaust manifold insulator (LH)
5. Exhaust manifold (LH)
6. Distributor and high-tension lead
7. Intake manifold assembly






Intake Manifold Assembly

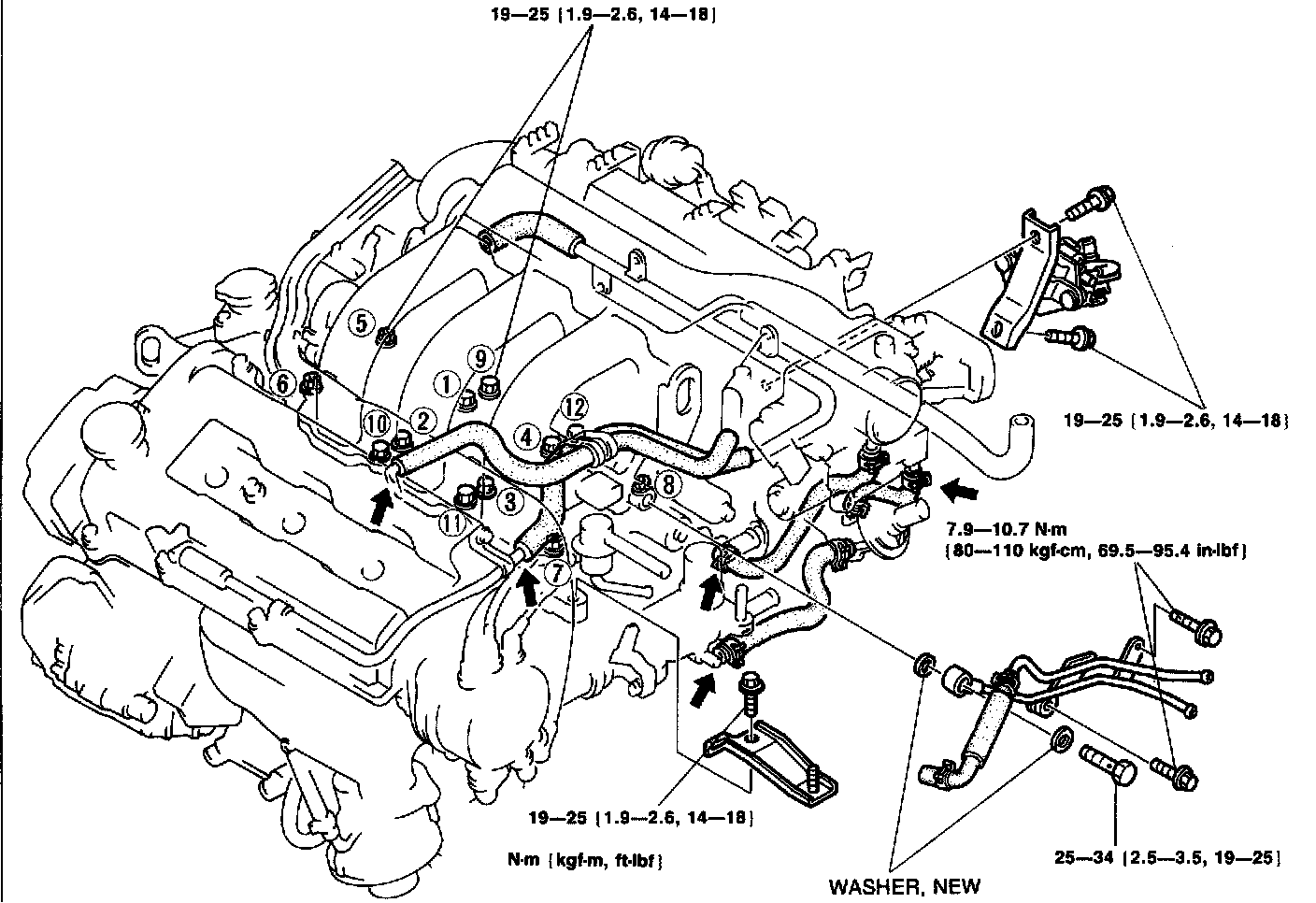

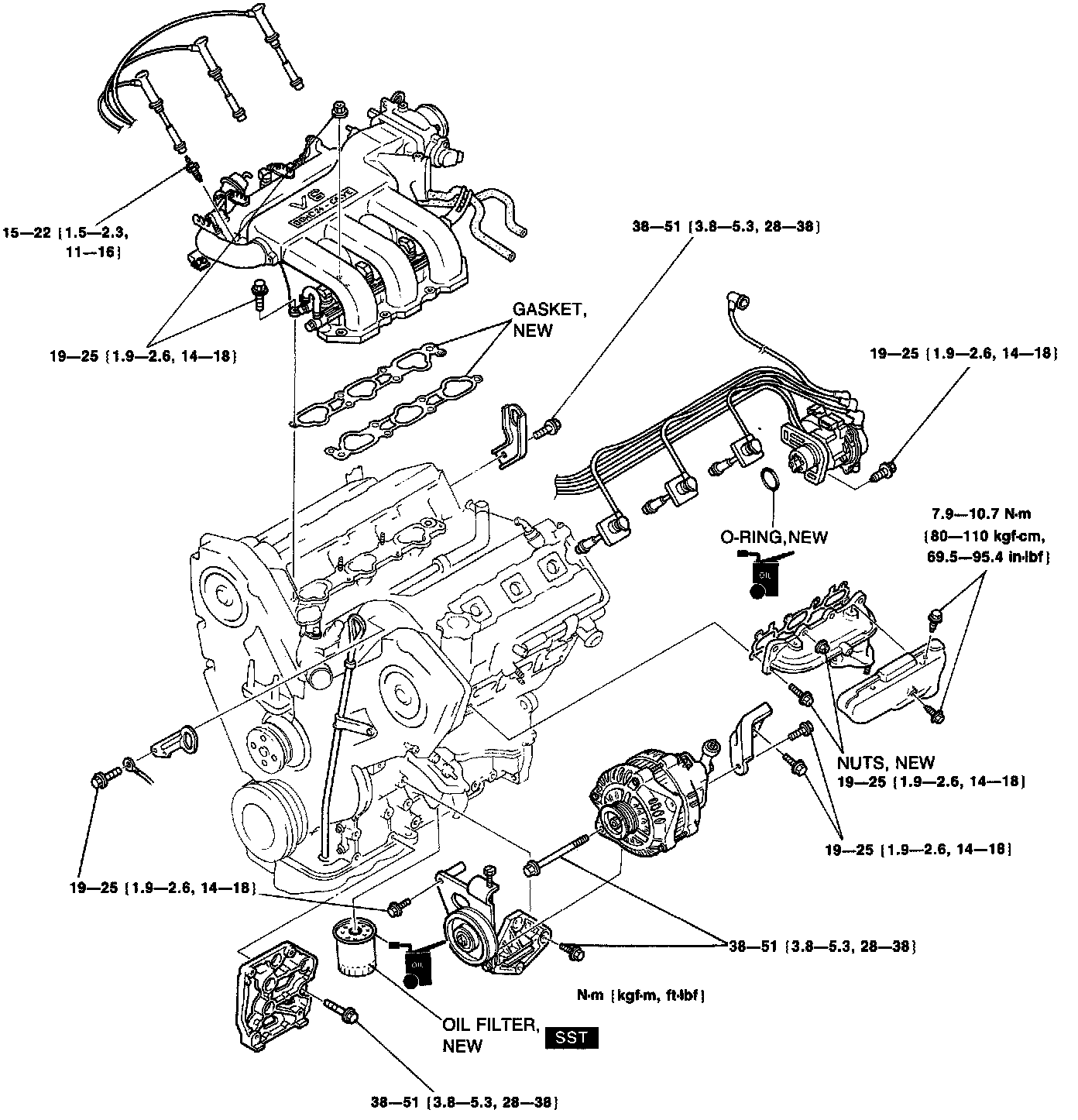

1. Install new gaskets and the intake manifold assembly Loosely tighten the bolts and nuts.






2. Connect the stays, bracket, fuel pipe, and hoses in the order shown in the figure.

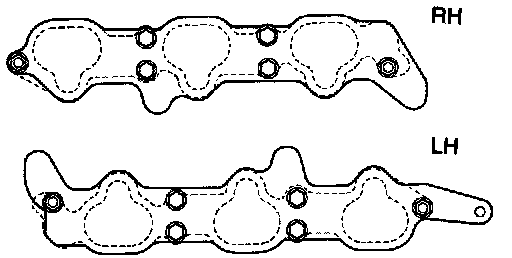

3. Tighten the intake manifold bolts and nuts in two or three steps.


Caution: Position the hose clamp in the original location on the hose, and squeeze the clamp lightly with large pliers to ensure a good fit.

DISTRIBUTOR


1. Apply clean engine oil to new 0-ring and position it on the distributor.
2. Apply engine oil to the drive blade.

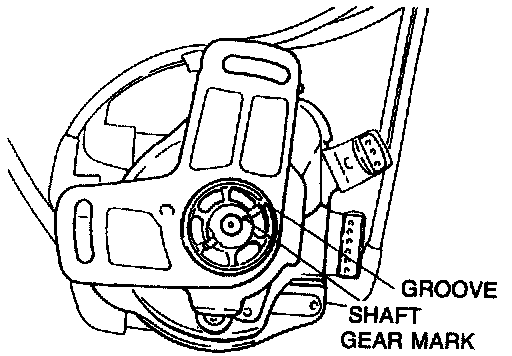

3. Align the groove of the distributor body and shaft gear mark as shown.
4. Install the distributor with the blade fit into the camshaft groove.
