Oil Cooler: Service and Repair

OIL COOLER

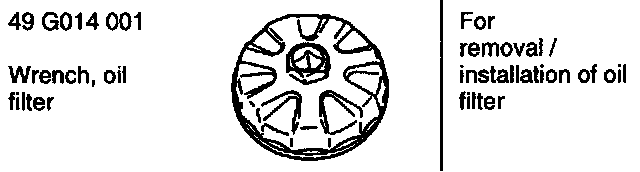

PREPARATION SST

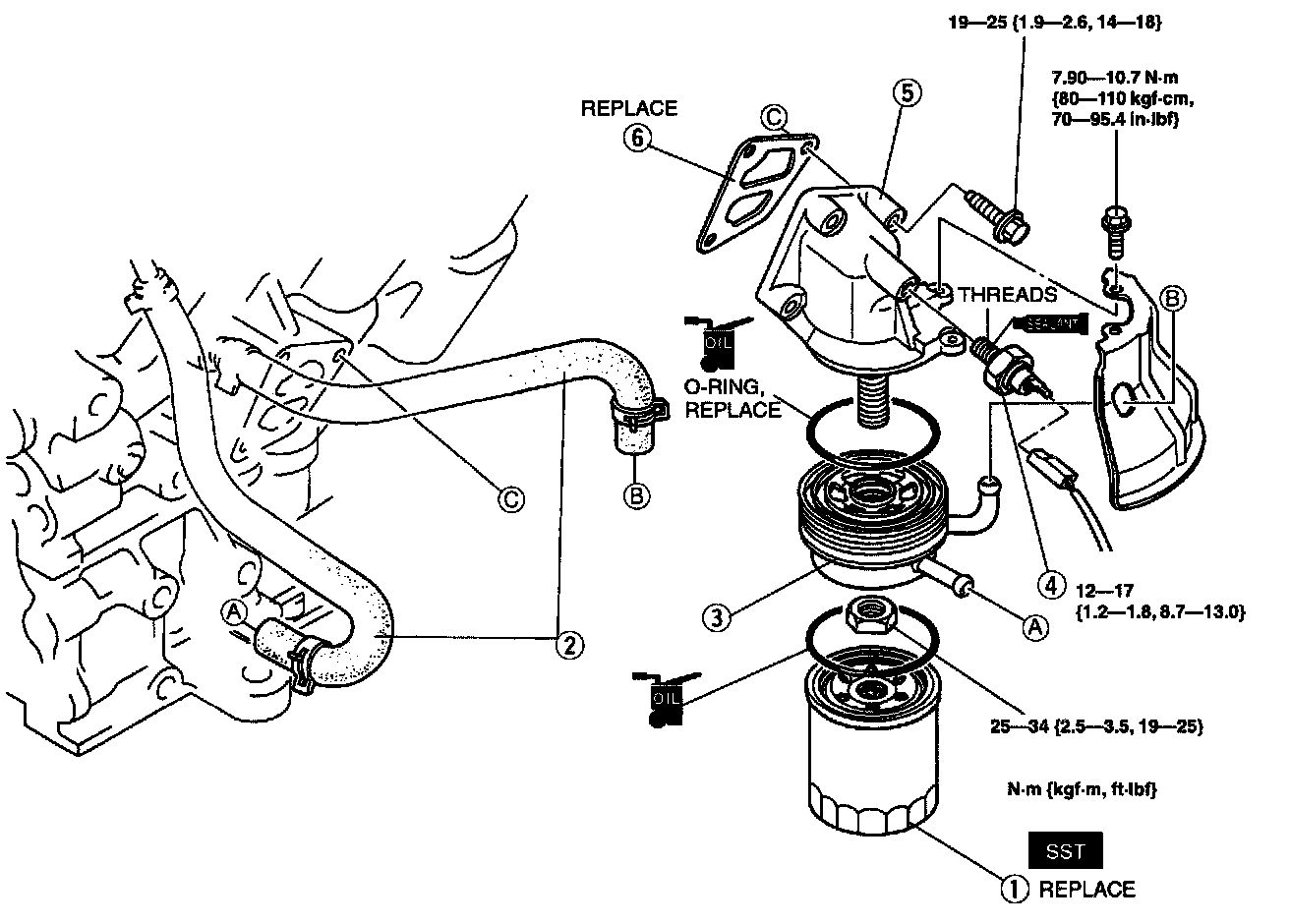

1. Oil filter
2. Oil cooler hose
3. Oil cooler
4. Oil pressure switch
5. Oil filter body
6. Gasket

REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.
Steps After Installation
1. Fill with the specified amount and type of engine coolant.
2. Check for leaks.
