Home >> Mazda >> 1994 >> 626 V6-2496cc 2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit Diagrams >> E-5

E-5

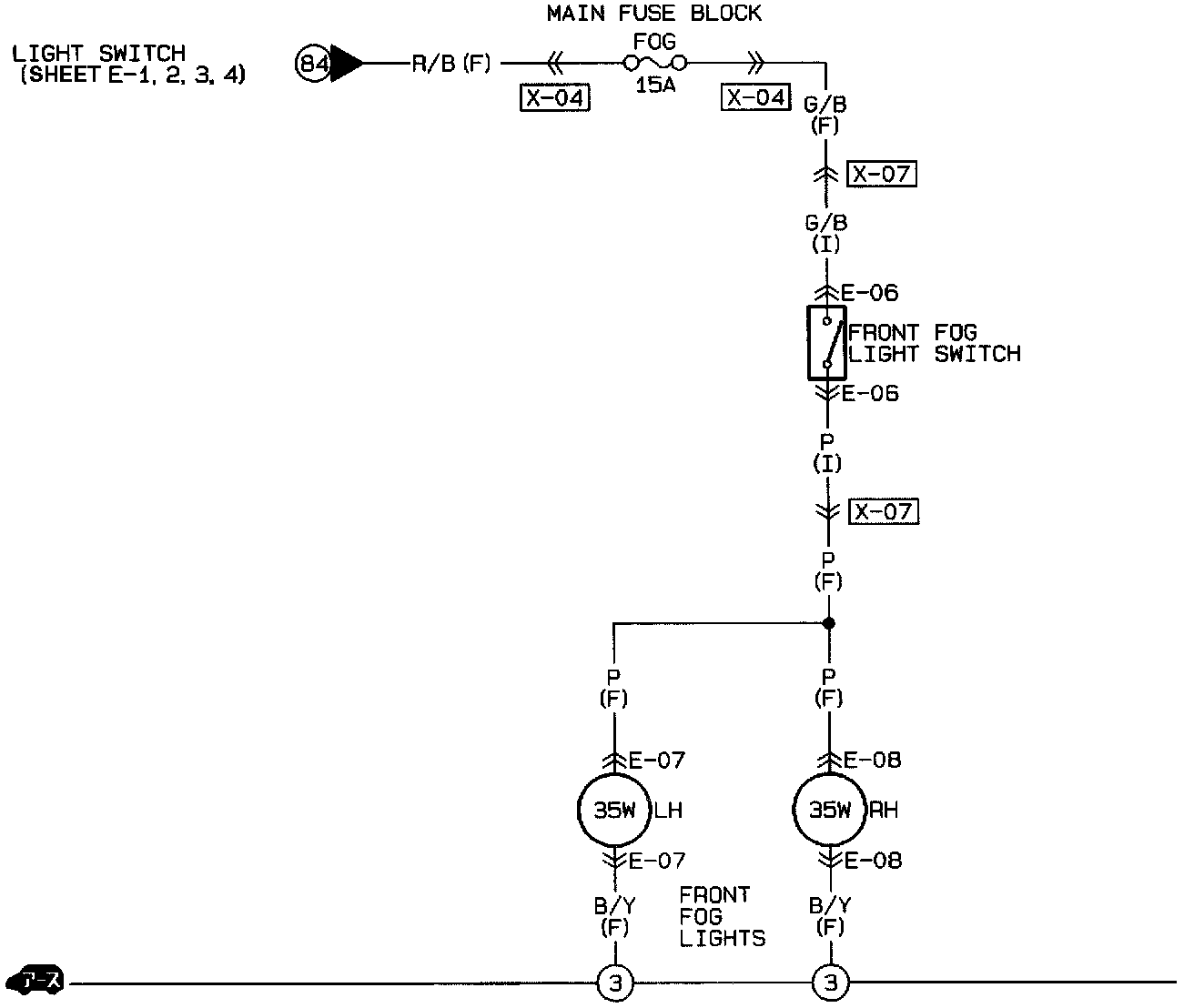

Front Fog Lights:
