Disassembly

CAUTIONS:
- Be especially careful when handling the control valve because it consists of the most precise and delicate parts of the transaxle.

- Neatly organize the removed parts so that similar parts do not get mixed up.

- Clean the removed parts with cleaning solvent, and dry them with compressed air. Clean out all holes and passages with compressed air.

- Wear eye protection when using compressed air to clean components.





PROCEDURE
1. Disassemble in the order shown in the illustration, referring to the following steps.





2. Remove manual control valve from the valve body. Remove the two solenoid body assembly bolts. Remove the solenoid body assembly.

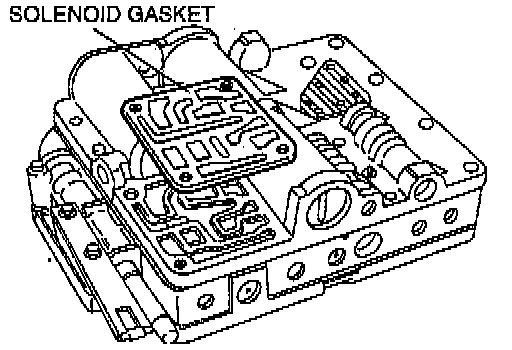

3. Remove the solenoid gasket from the accumulator body. Discard the solenoid gasket.

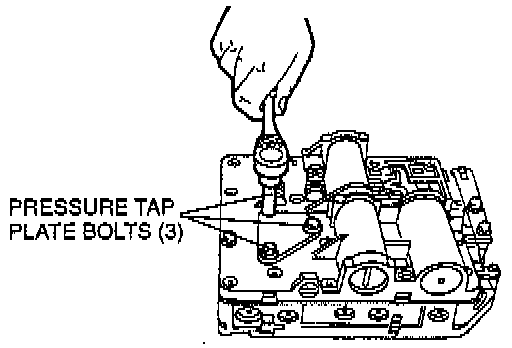

4. Remove the three pressure tap plate bolts. Remove the pressure tap plate.

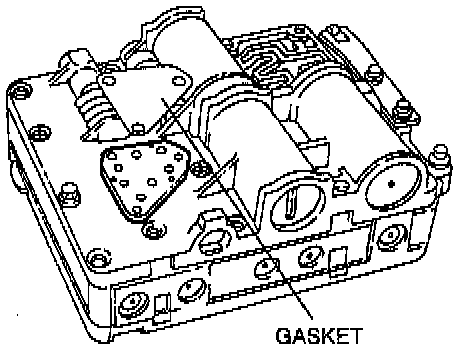

5. Remove the gasket from the accumulator body assembly. Discard the gasket.





6. Remove the three valve body-to-transfer plate bolts. Remove the detent lever.





7. Remove the three accumulator body assembly bolts.

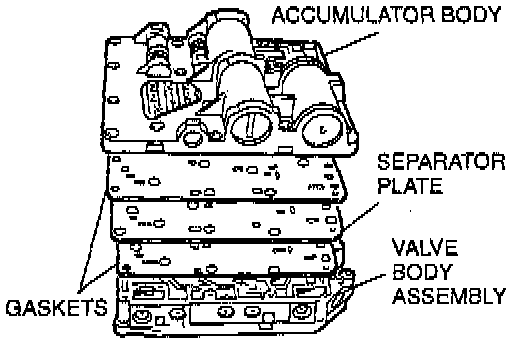

8. Remove the accumulator body, separator plate, and gaskets from the valve body assembly. Discard the gaskets.

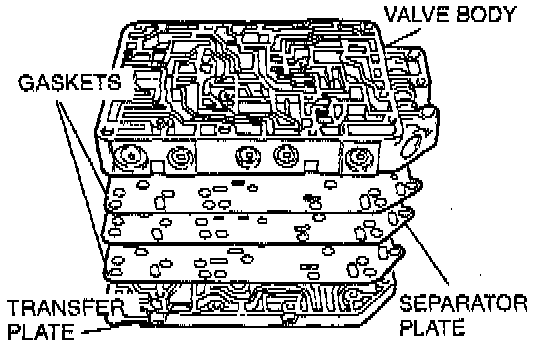

9. Remove the valve body, separator plate and gaskets from the transfer plate. Discard the gaskets.
10. Inspect all parts and repair or replace as necessary.
