Assembly

CAUTION:
- Before assembly, make sure all parts are perfectly clean.
- Apply ATF to all parts.
- Do not reuse the gaskets or O-rings.





PROCEDURE

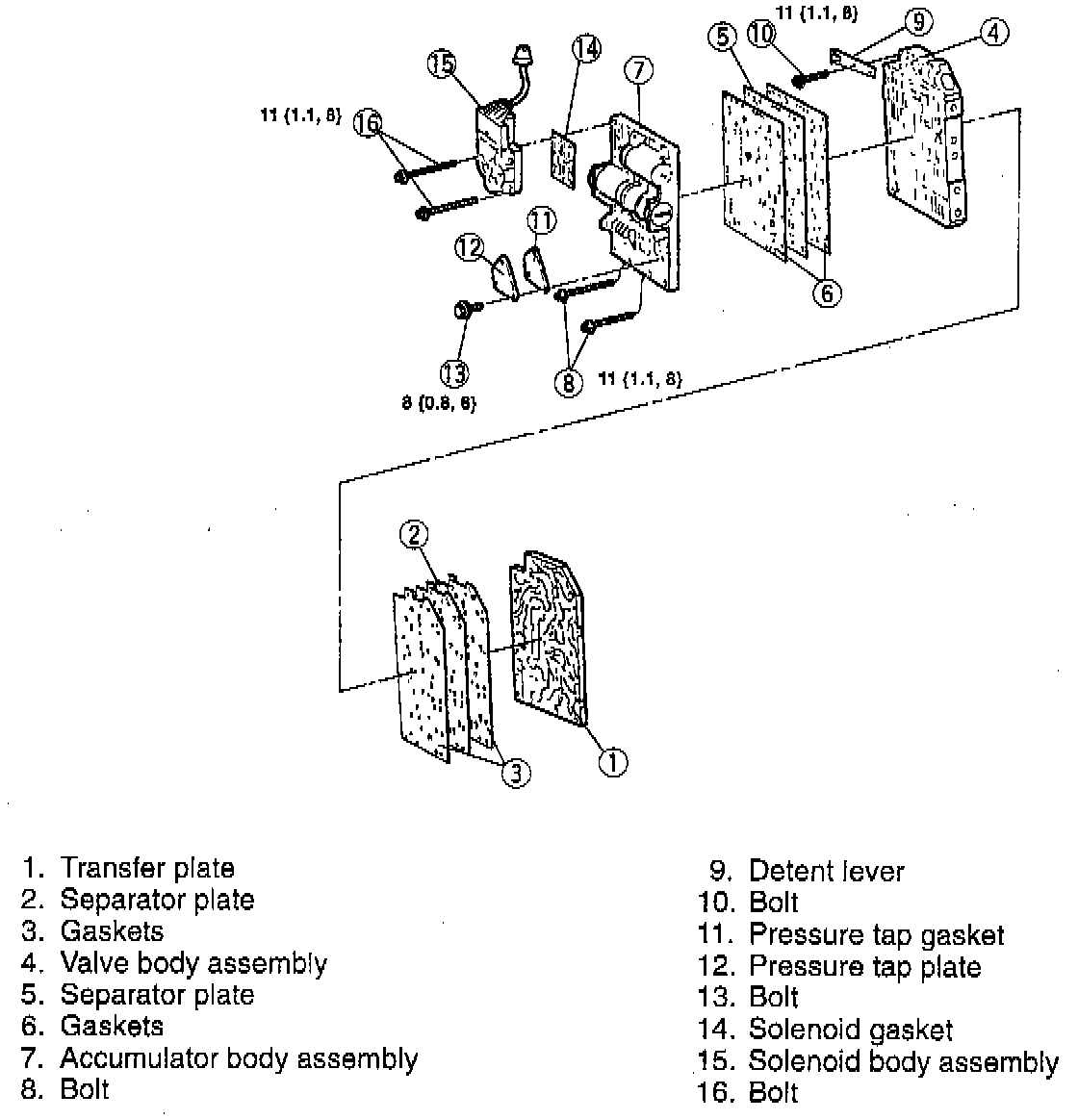

- Assemble as shown in the illustration, referring to the following steps:

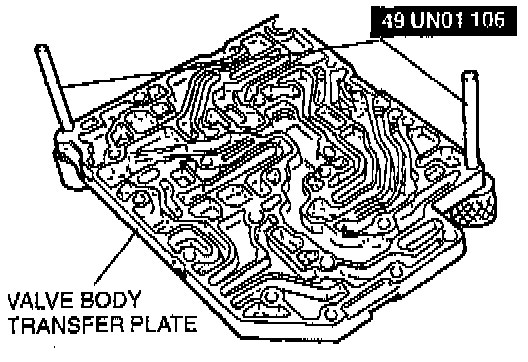

1. Install the Special Service Tool (SST) or equivalent in the valve body transfer plate.

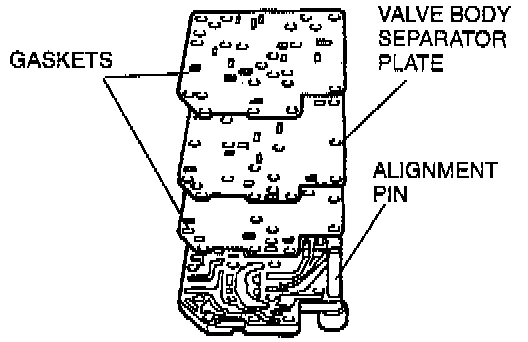

2. Install the valve body separator plate and new gaskets on the transfer plate.





3. Install the valve body assembly on the transfer plate.

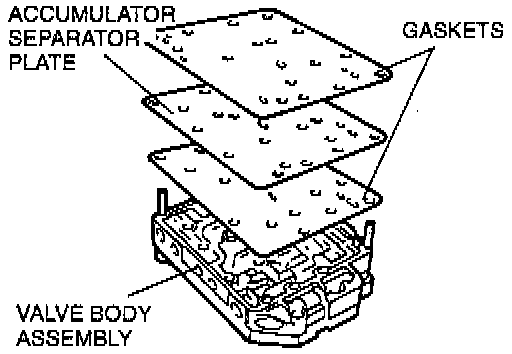

4. Install the accumulator body separator plate and new gaskets on the valve body assembly.

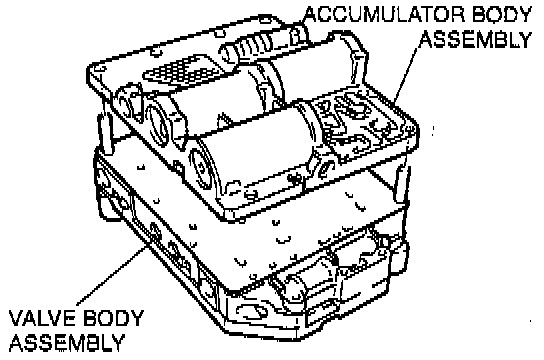

5. Install the accumulator body assembly on the valve body assembly.

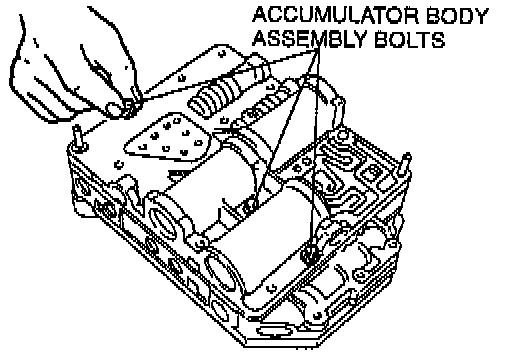

6. Install and tighten the three accumulator body assembly-to-transfer plate bolts. to 10 Nm (84 inch lbs.).

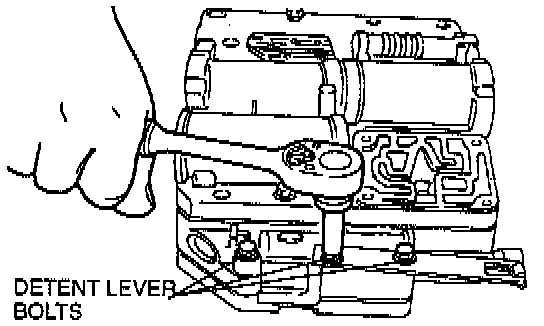

7. Install the three valve body-to-transfer plate bolts and detent lever to 10 Nm (84 inch lbs.).

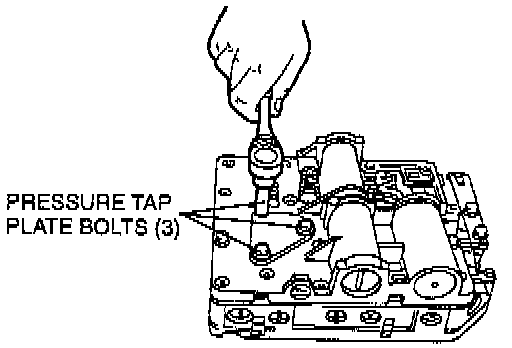

8. Install the pressure tap plate, gasket, and three bolts on the accumulator body assembly to 8 Nm (72 inch lbs.).

NOTE: Match the solenoid body gasket to the passages.





9. Install the solenoid body and a new gasket on the accumulator body.

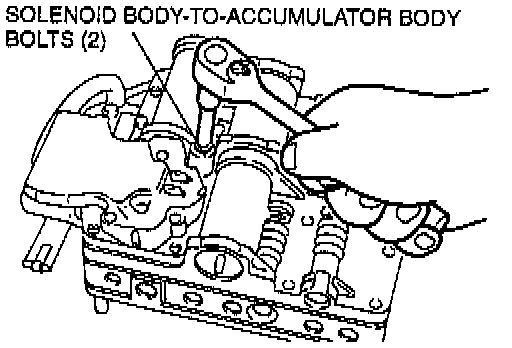

10. Install the two solenoid body-to-accumulator body bolts to 10 Nm (84 inch lbs.).
11. Remove the valve body alignment pins.
12. Install the manual control valve.
