Home >> Mazda >> 1994 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Transmission Speed Sensor >> Locations

Transmission Speed Sensor: Locations

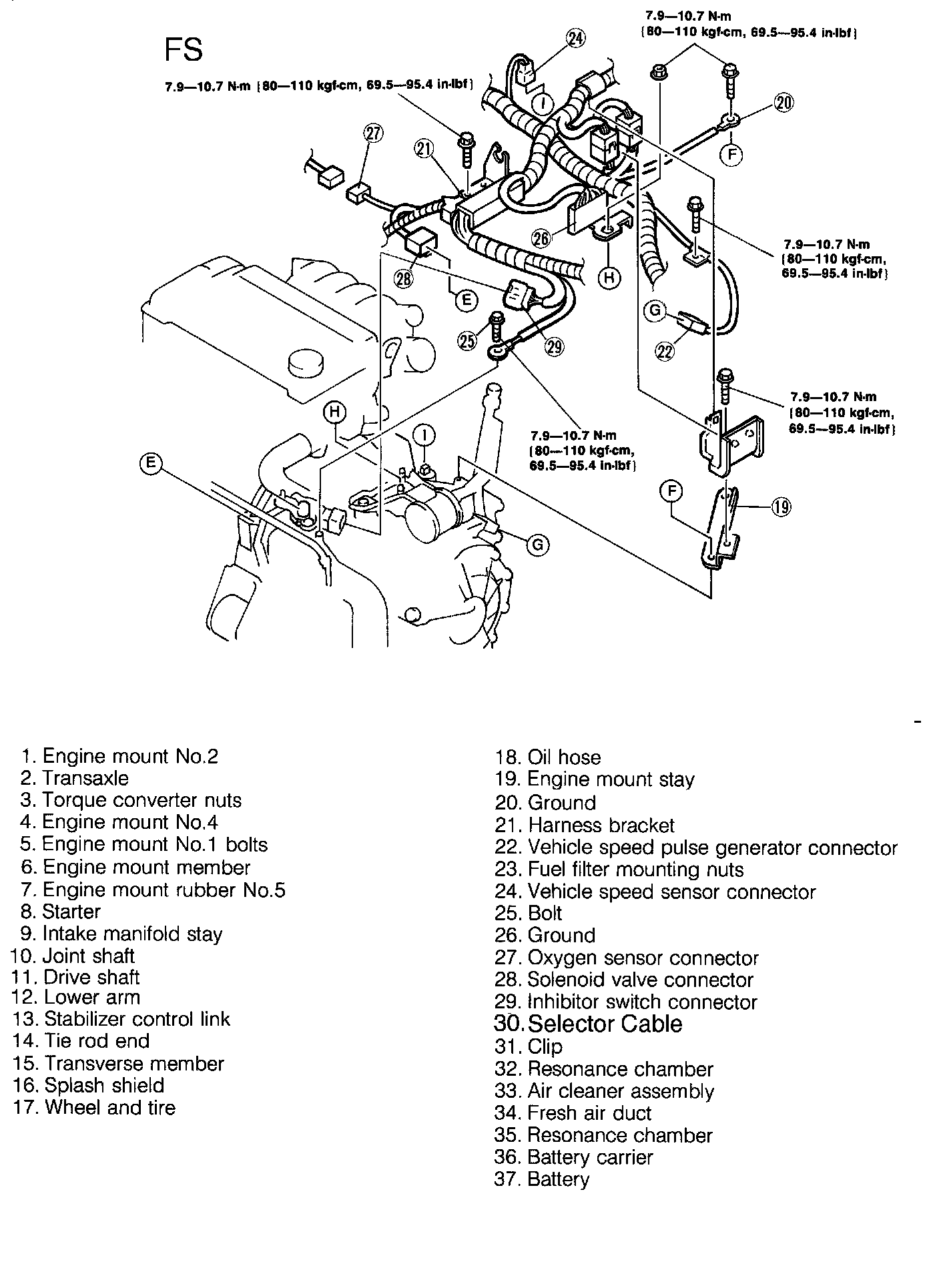

FS 2.0 L 4 Cylinder

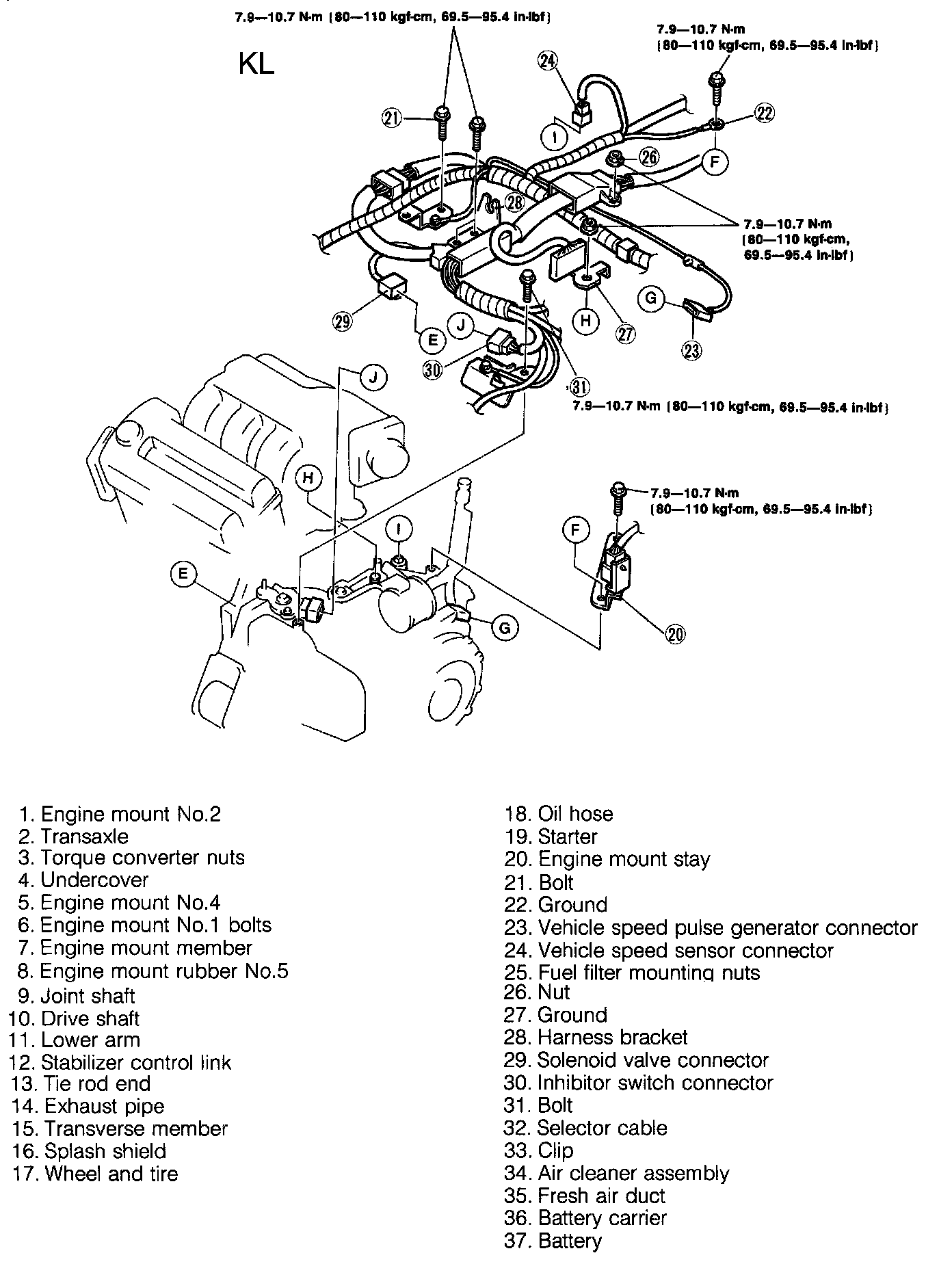

KL 2.5 L 6 Cylinder
