Disassembly and Assembly

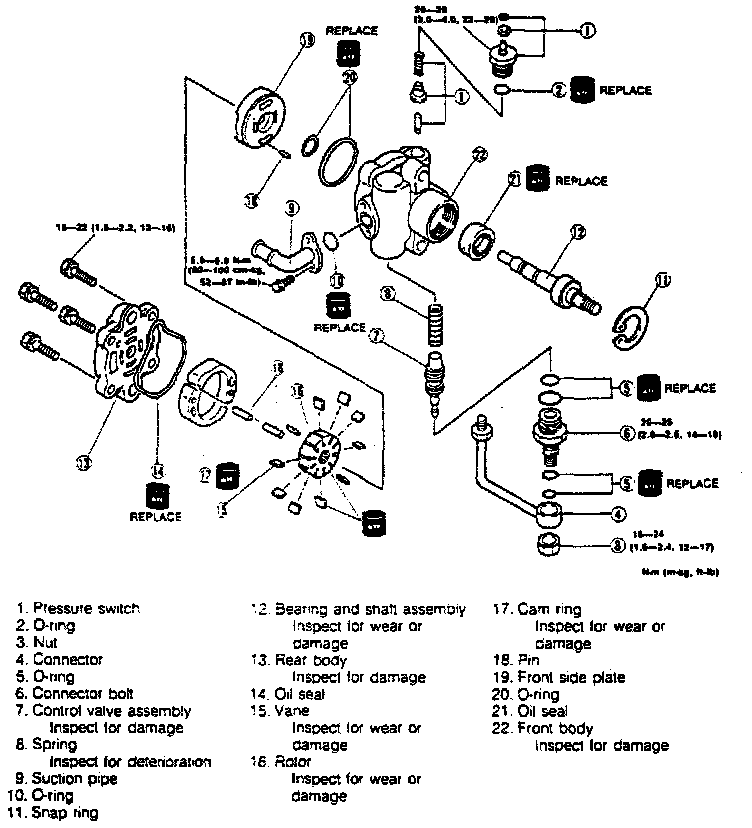

Fig. 28, Exploded View Of Power Steering Pump:

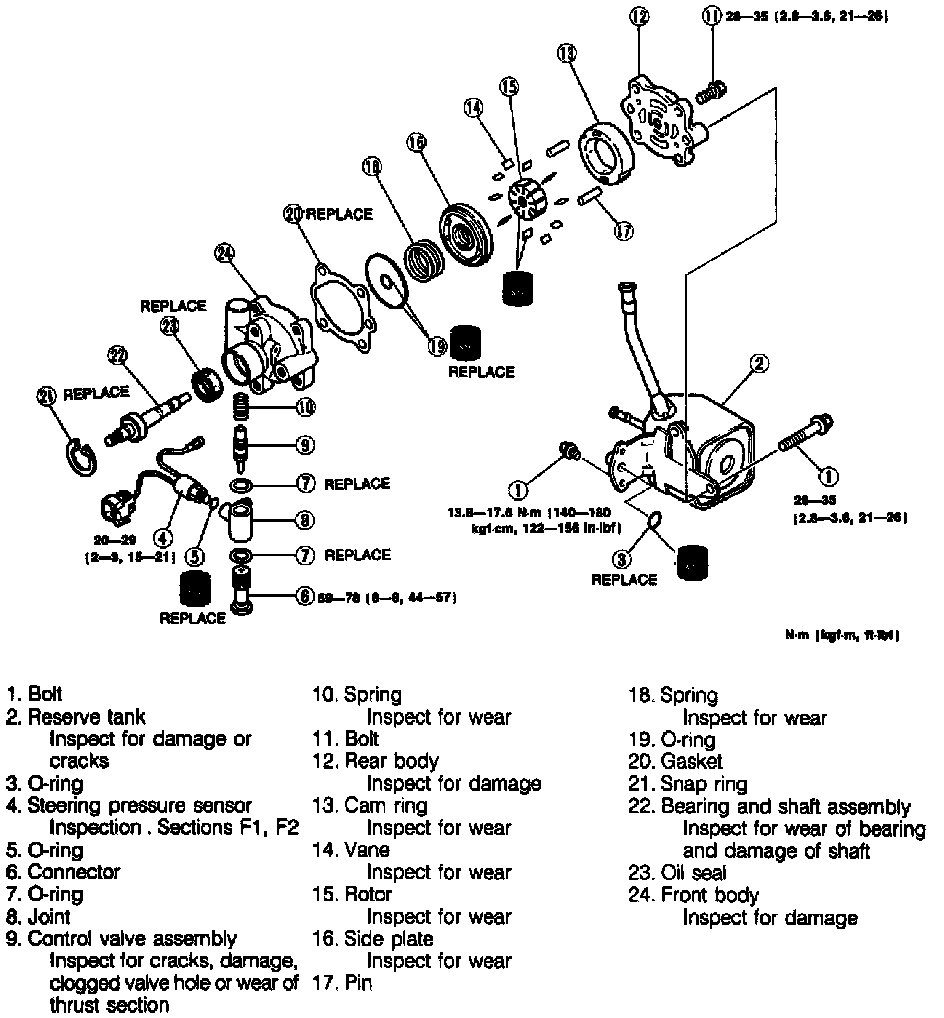

Fig. 46 Exploded View Of Power Steering Pump:

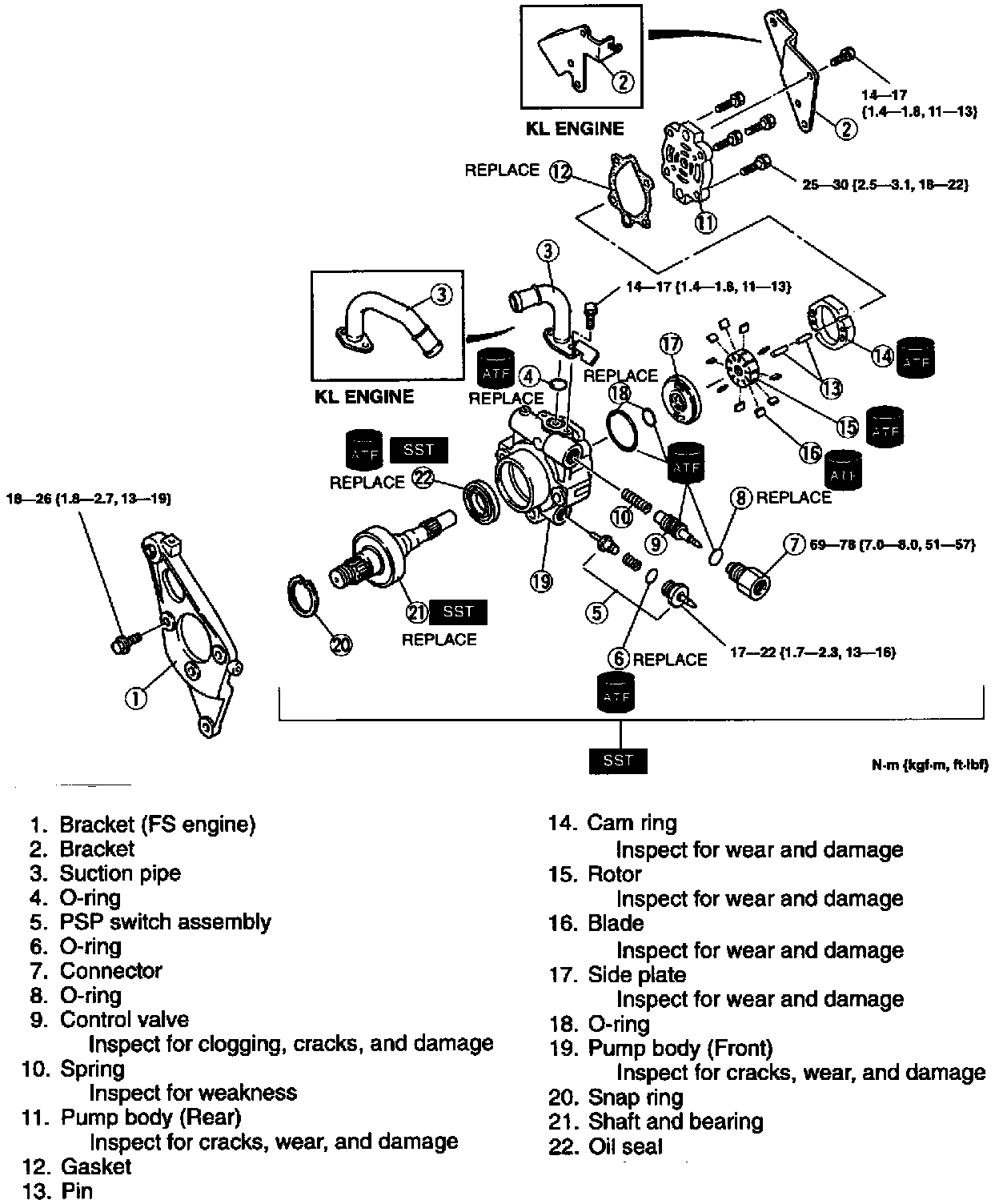

Fig. 47 Exploded View Of Power Steering Pump:

Refer above for disassembly and assembly procedure.
