Driver Side

Driver-side Air Bag Module

Removal / Installation

Warning:
- Handling the air bag module improperly can accidently deploy the air bag, which may seriously injure you. Read SERVICE WARNINGS before handling the air bag module.

1. Carry out the "Before Servicing" procedure under GENERAL PROCEDURES.

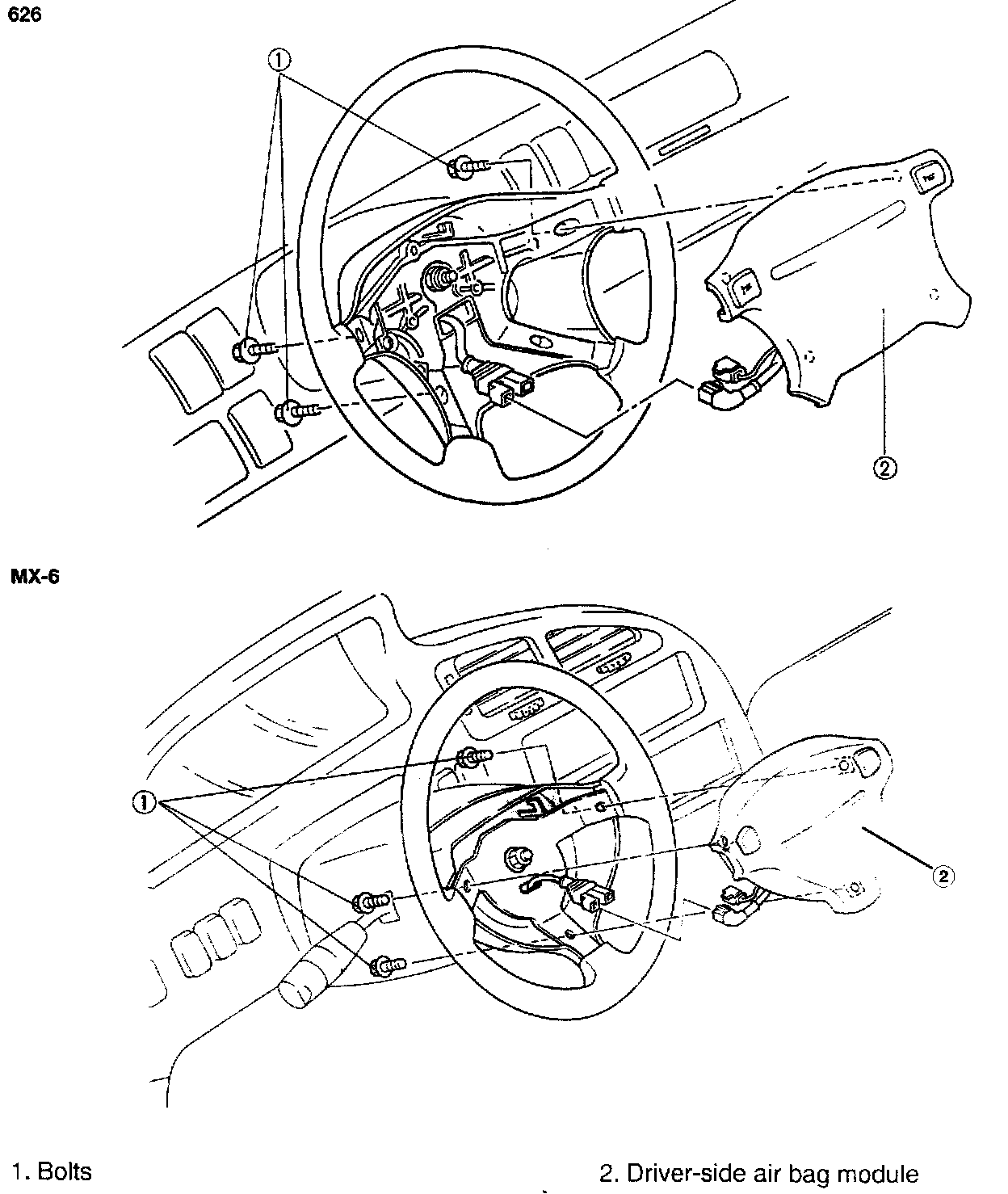

2. Remove in the order shown in the figure.
3. Install in the reverse order of removal, referring to Installation note.
4. Follow the troubleshooting flowchart to verify that the air bag system is operating normally.






Installation note
Bolts

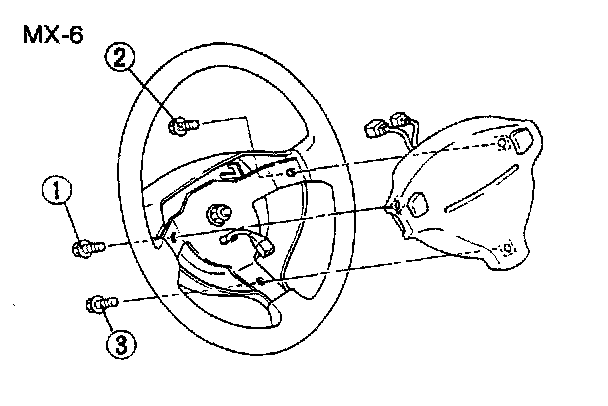

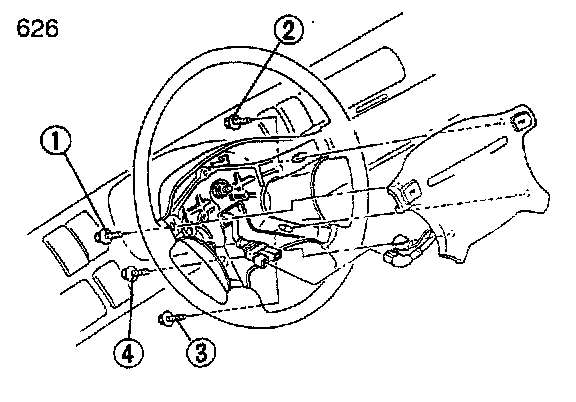

Tighten the bolts in the order shown in the figure.











Tightening torque:
7.9-11.7 N.m (80-120 kgf.cm, 70-104 in.lbf)
