Throttle Cable/Linkage: Adjustments

Accelerator Cable Adjustment:

1. Verify throttle valve is fully closed.
2. Check cable free play at engine end:

FREE PLAY: 0.06 - 0.16 in (1.5 - 4.0 mm)

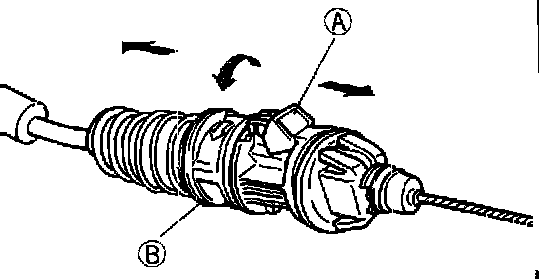

3. If not as specified, adjust free play by turning stopper B while pressing lock button A, with throttle valve fully closed.
4. Reset cable lock.
