626 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>

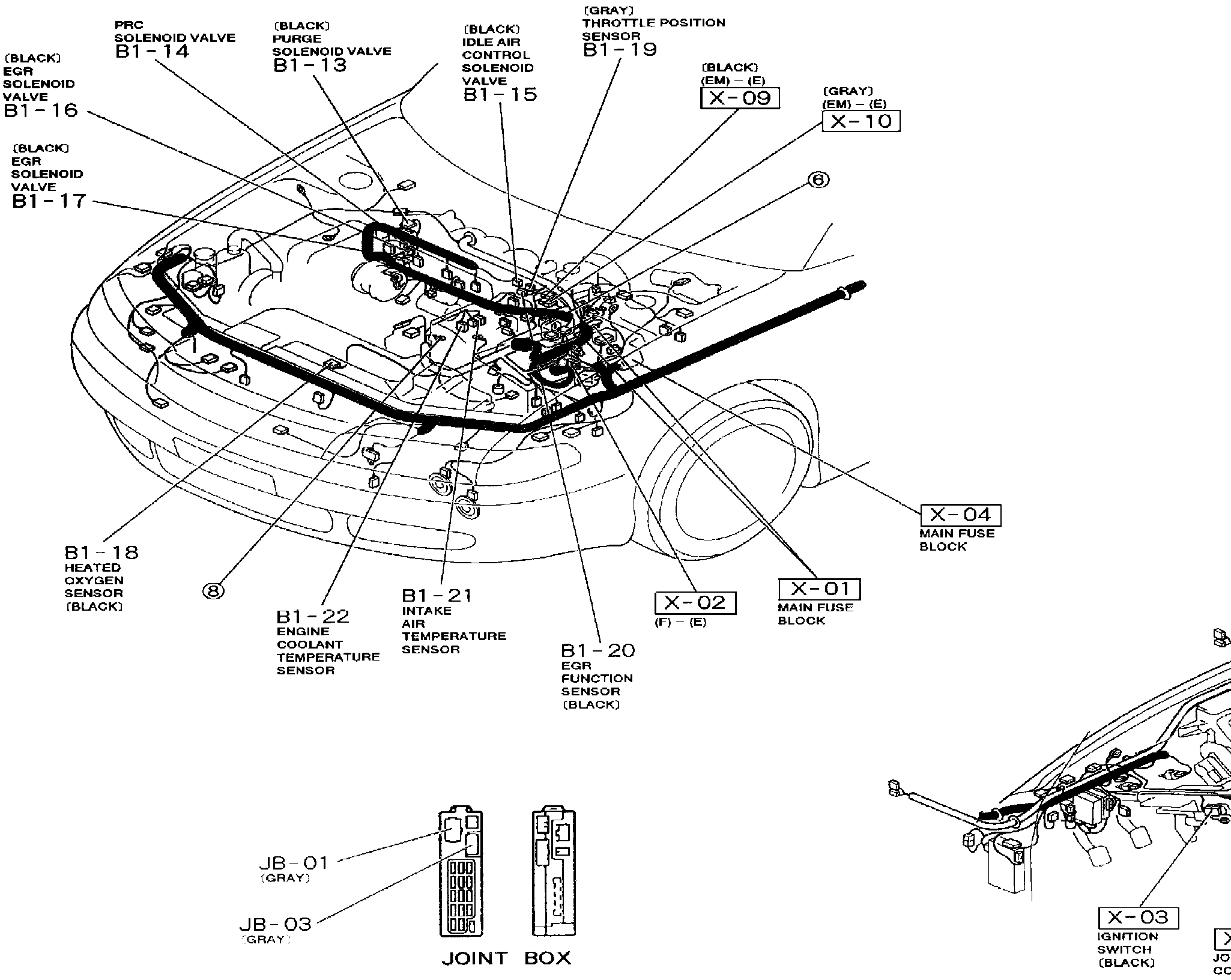

Connector Locations
>>
Engine Control System
>>
ATX
>>
B-1B
B-1B
<]{=Connector Locations:
