Air Mix Actuator

Air Mix Actuator

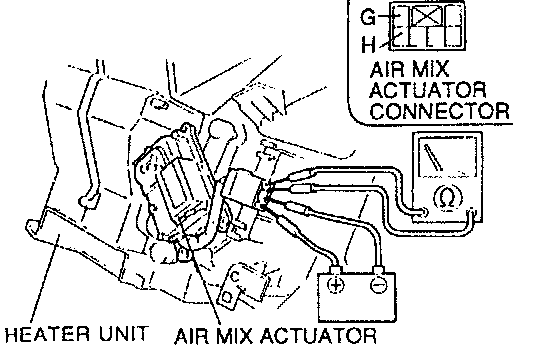

1. Disconnect the air mix actuator connector.

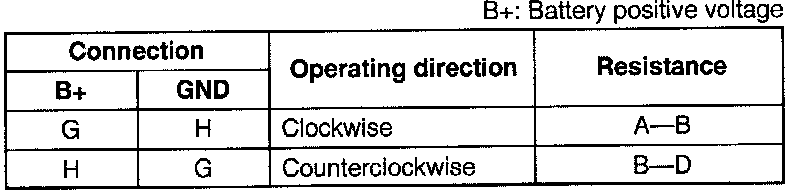

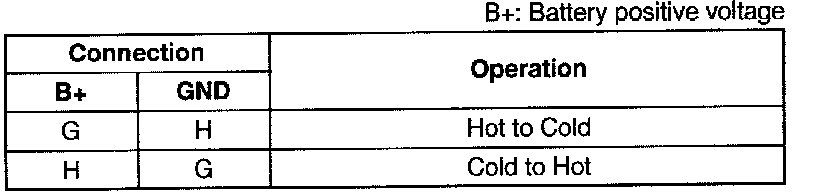

2. Connect battery positive voltage to terminals G and H of the air mix actuator and check the actuator operation.
3. If not as specified, replace the air mix actuator.

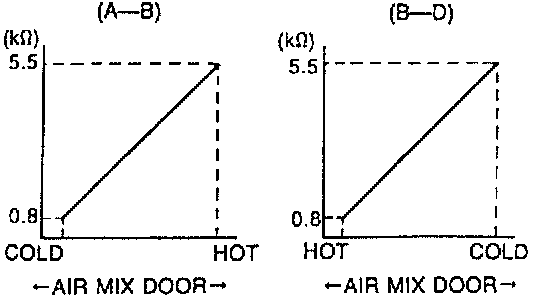

4. If correct, compare the measurement resistance to the characteristics shown in the figure.
5. If not as specified, replace the air mix actuator.
