Home >> Mazda >> 1994 >> 626 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit Diagrams >> C-A

C-A

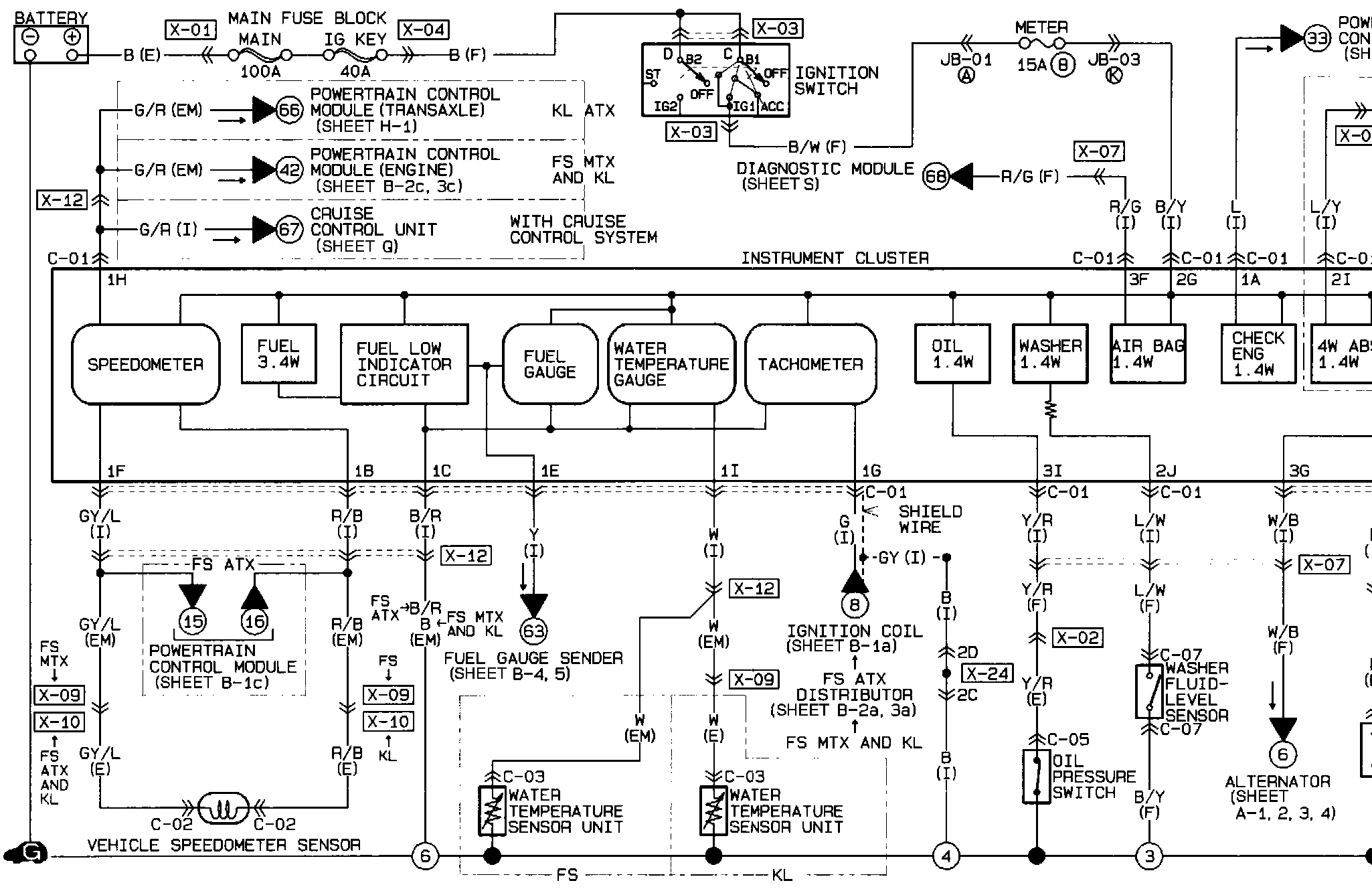

vu3tInstrument Cluster:
