Mazda
>>
1994
>>
626 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>
MTX
MTX

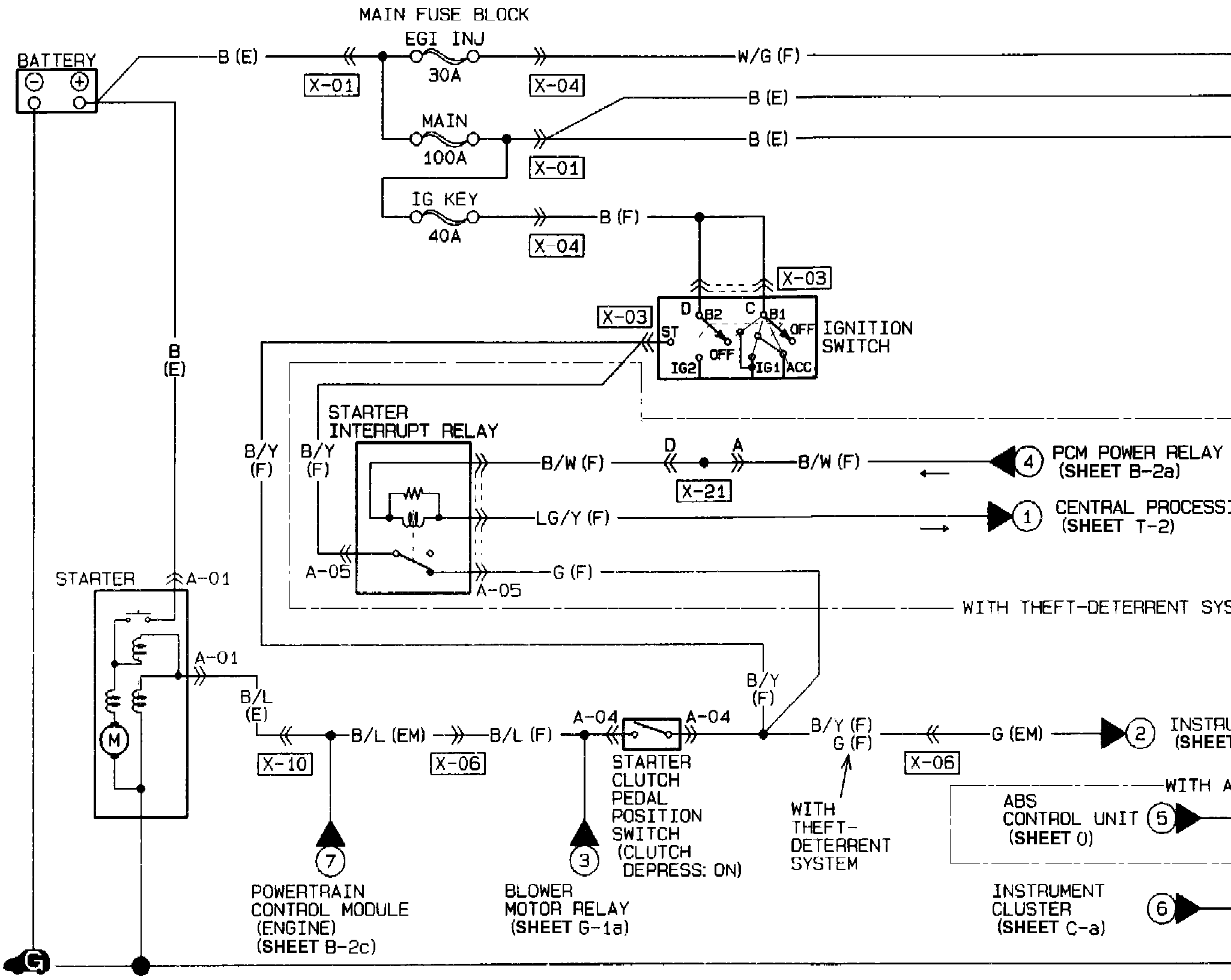

o�]MTX Charging System, Starting System:
