Home >> Mazda >> 1994 >> 323 L4-1597cc 1.6L SOHC >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine Control Module >> B-1

B-1

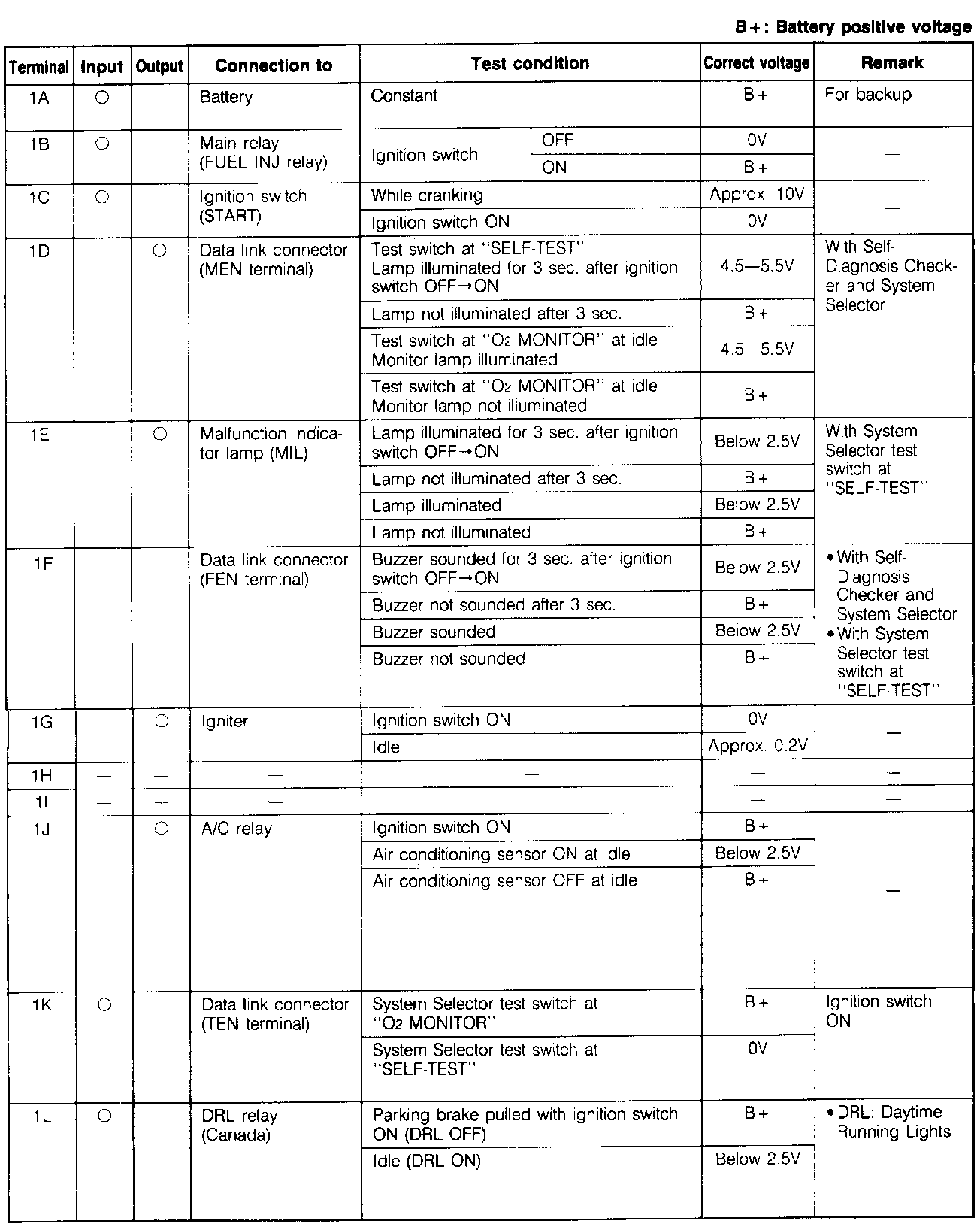

Terminal Voltage Chart:
