Oil Pan: Service and Repair

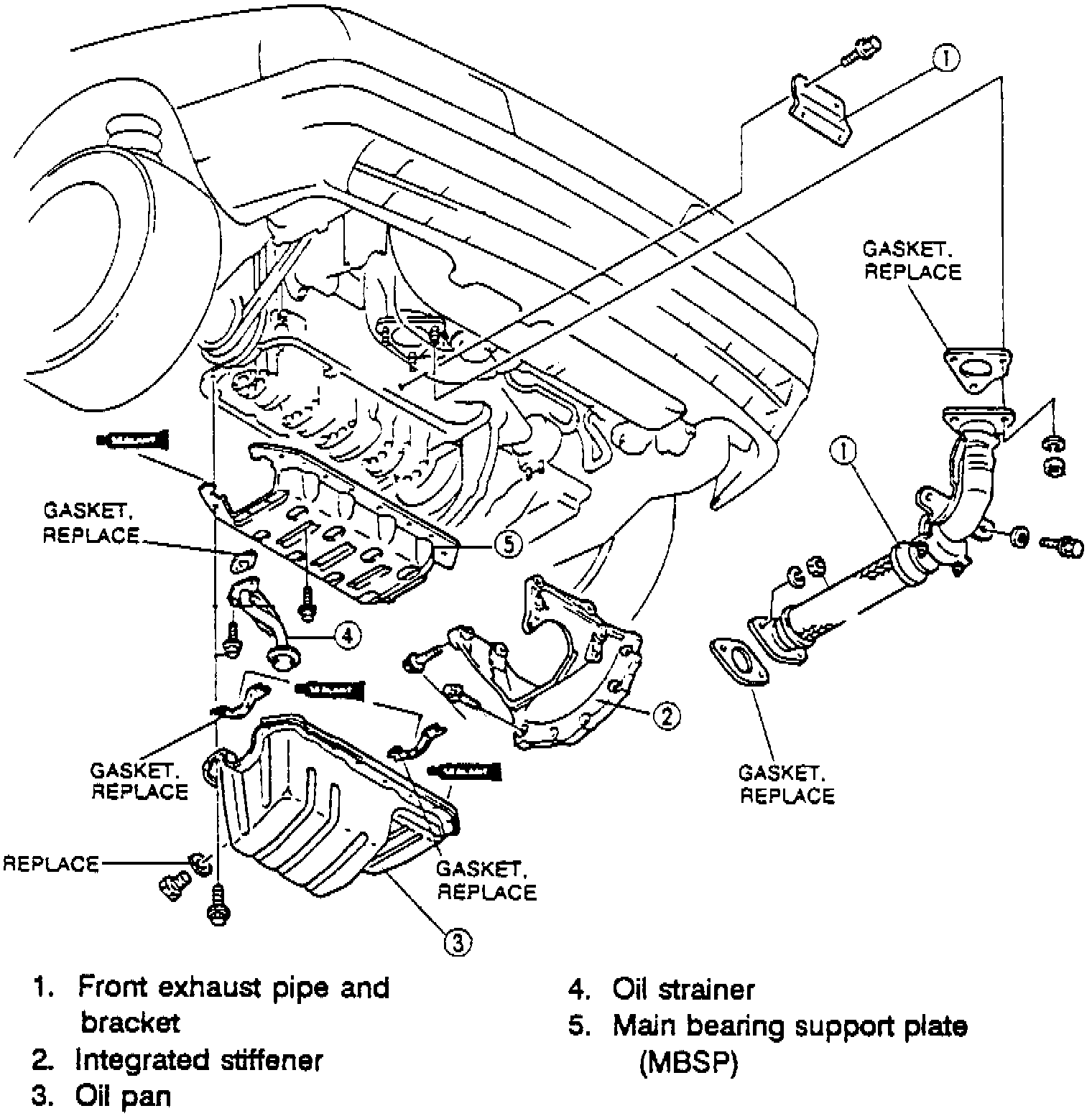

Fig. 79 Oil Pan Replacement:

1. Remove oil pan in numbered sequence shown, Fig. 79. To remove oil pan, insert screwdriver between main bearing support plate and oil pan.
2. Install oil pan reversing numbered sequence, Fig. 79. Tighten bolts to specifications shown in Fig. 79.
