Mazda
>>
1994
>>
323 L4-1597cc 1.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

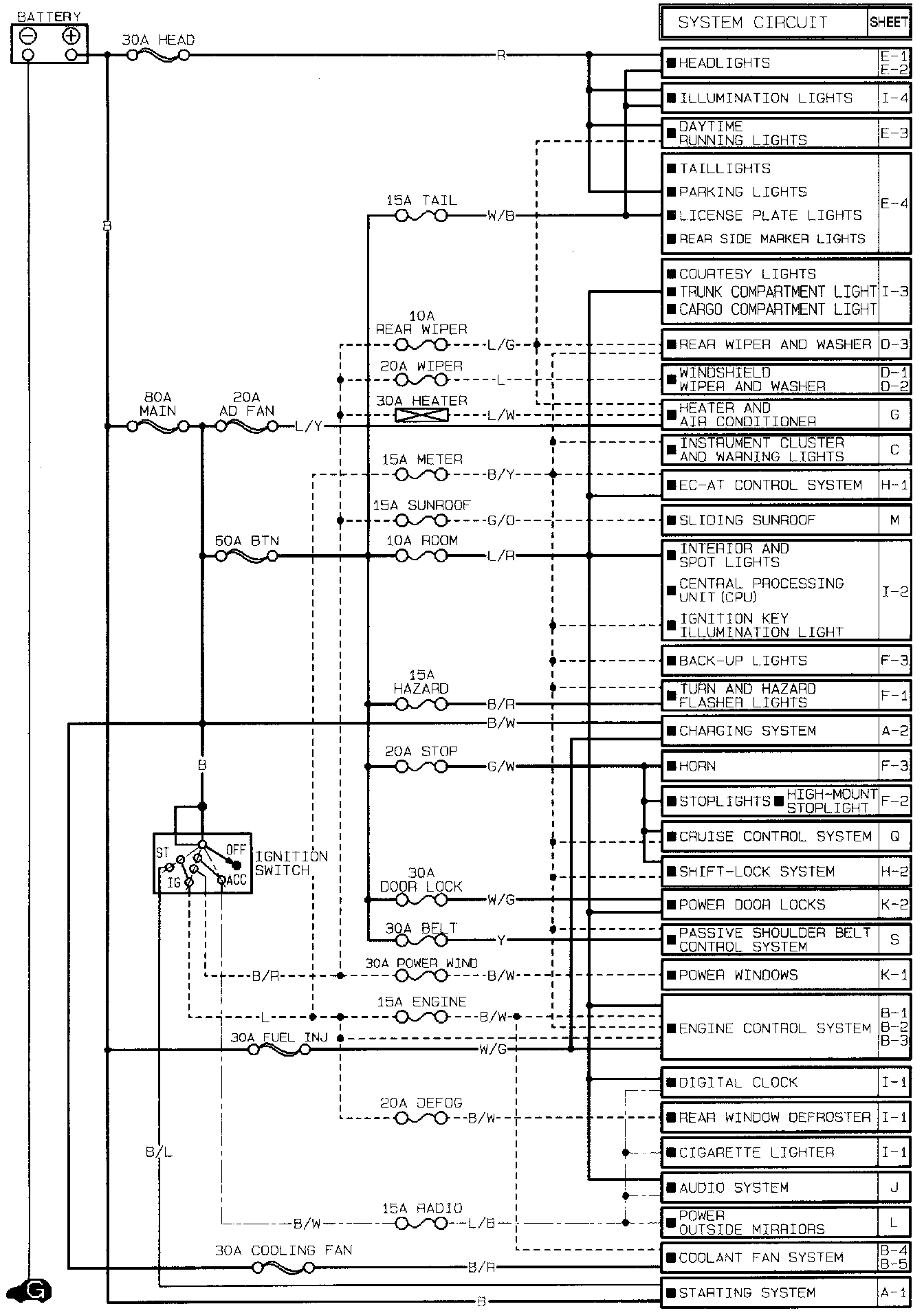

Electrical Wiring Schematic
Electrical Wiring Schematic
Electrical Wiring Schematic:
