Home >> Mazda >> 1994 >> 323 L4-1597cc 1.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit Diagrams >> D-3

D-3

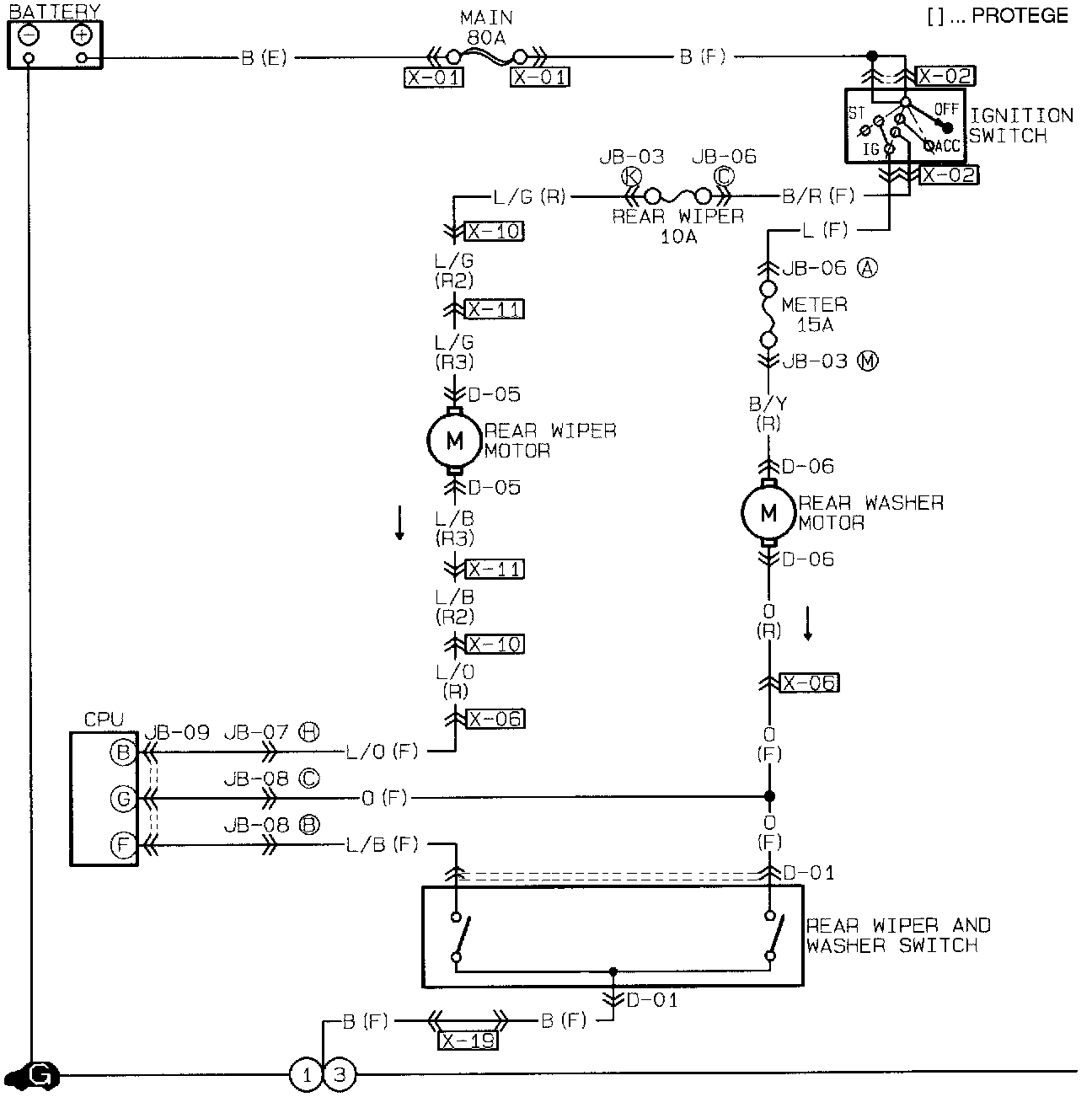

Rear Wiper And Washer:
