Mazda
>>
1993
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Diagram
Diagram

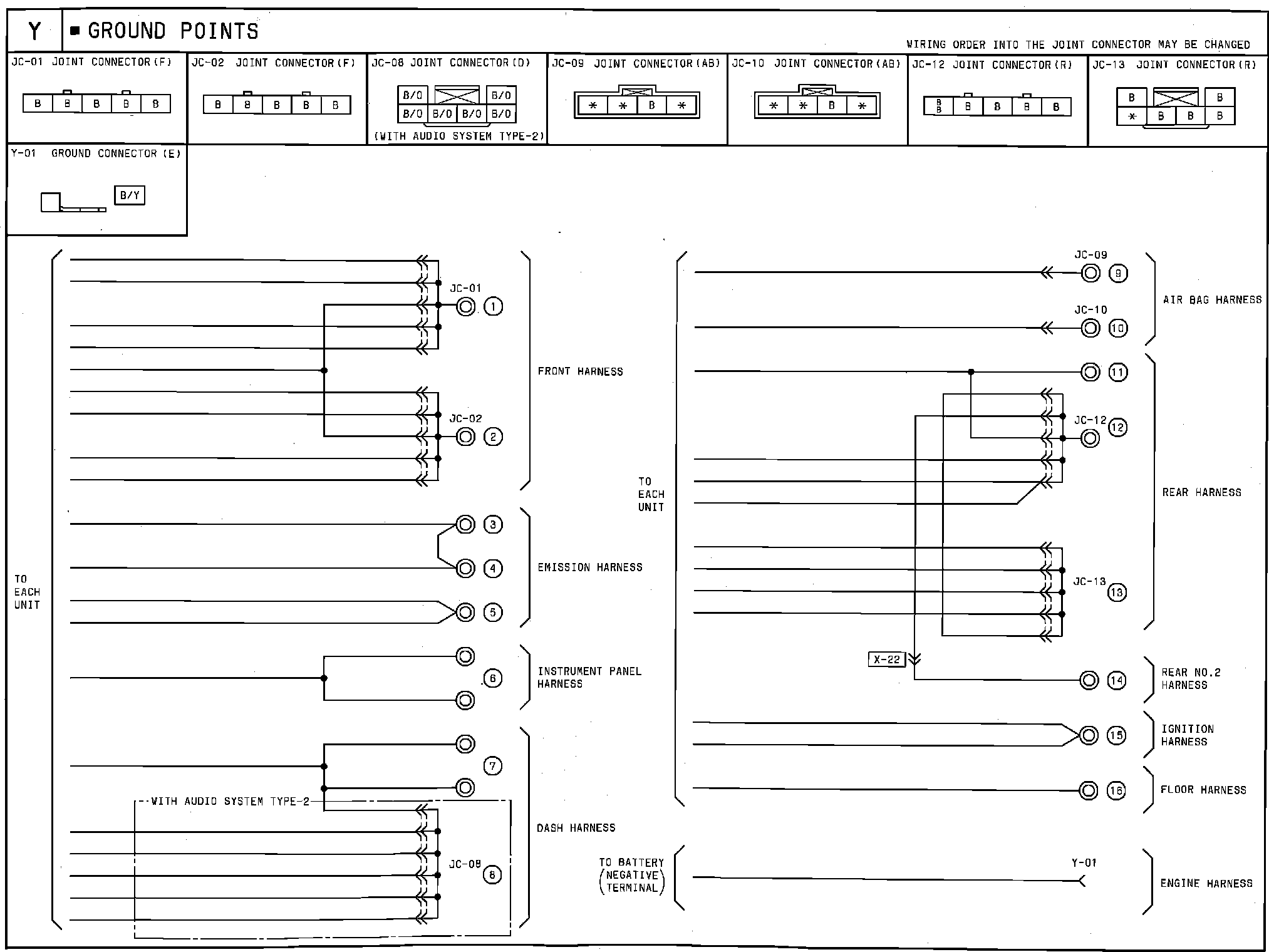

Ground Points:
