Diagram Information and Instructions
>>
Symbols Identification
>>
Component Symbols
Component Symbols

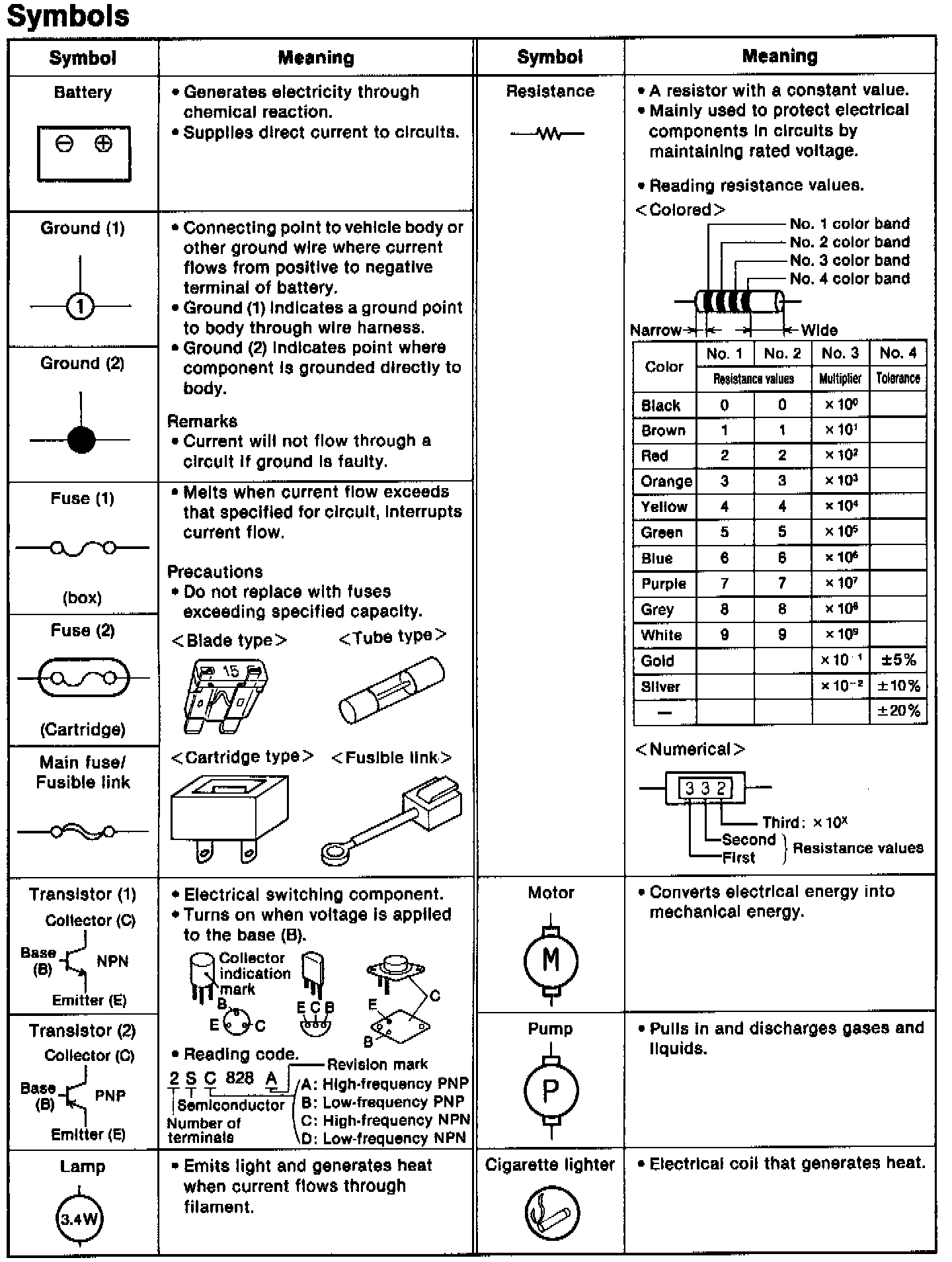

Component Symbols:

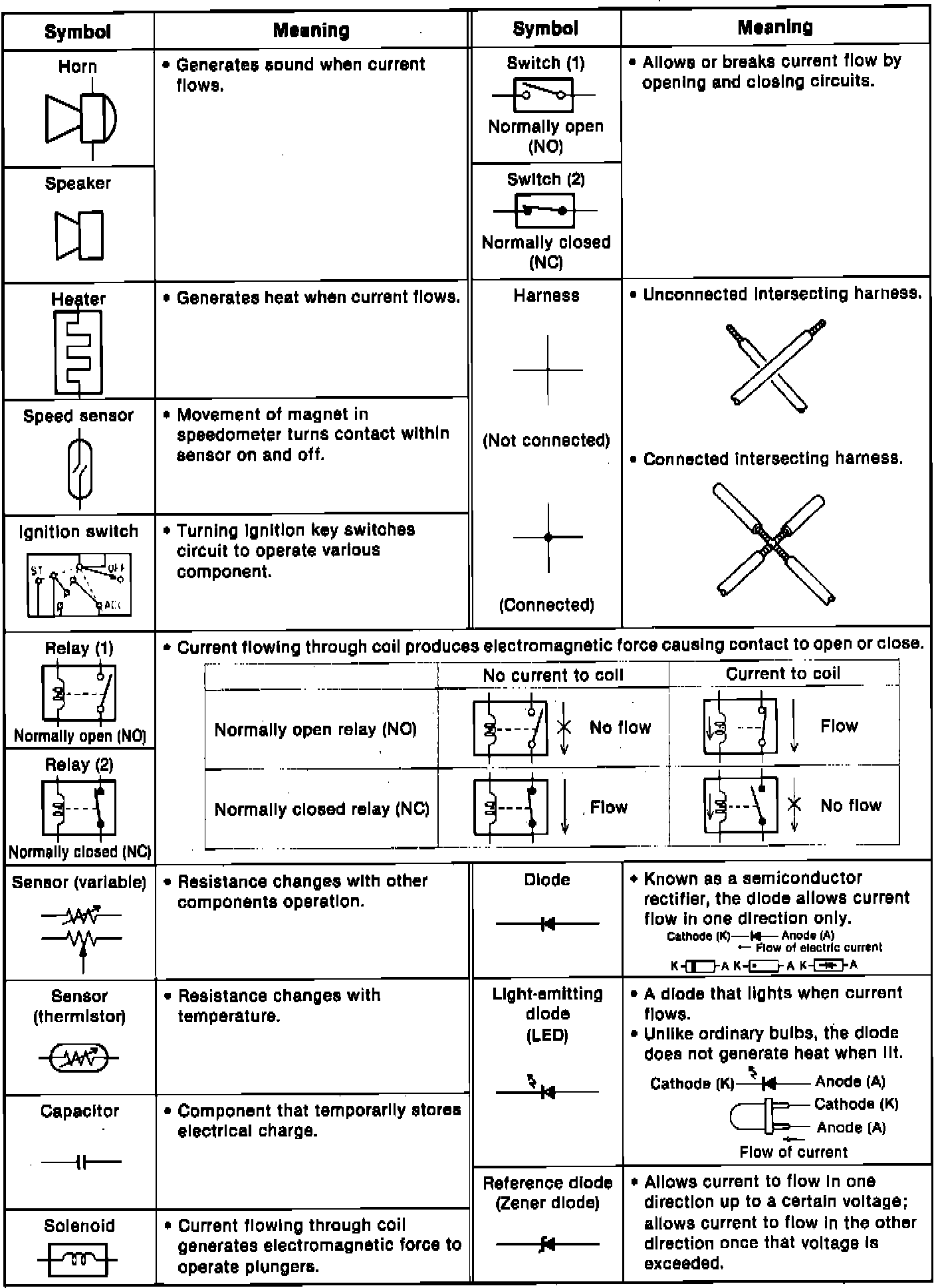

Component Symbols Cont.:
