Home >> Mazda >> 1993 >> MX-3 L4-1597cc 1.6L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Control System >> Federal

Federal

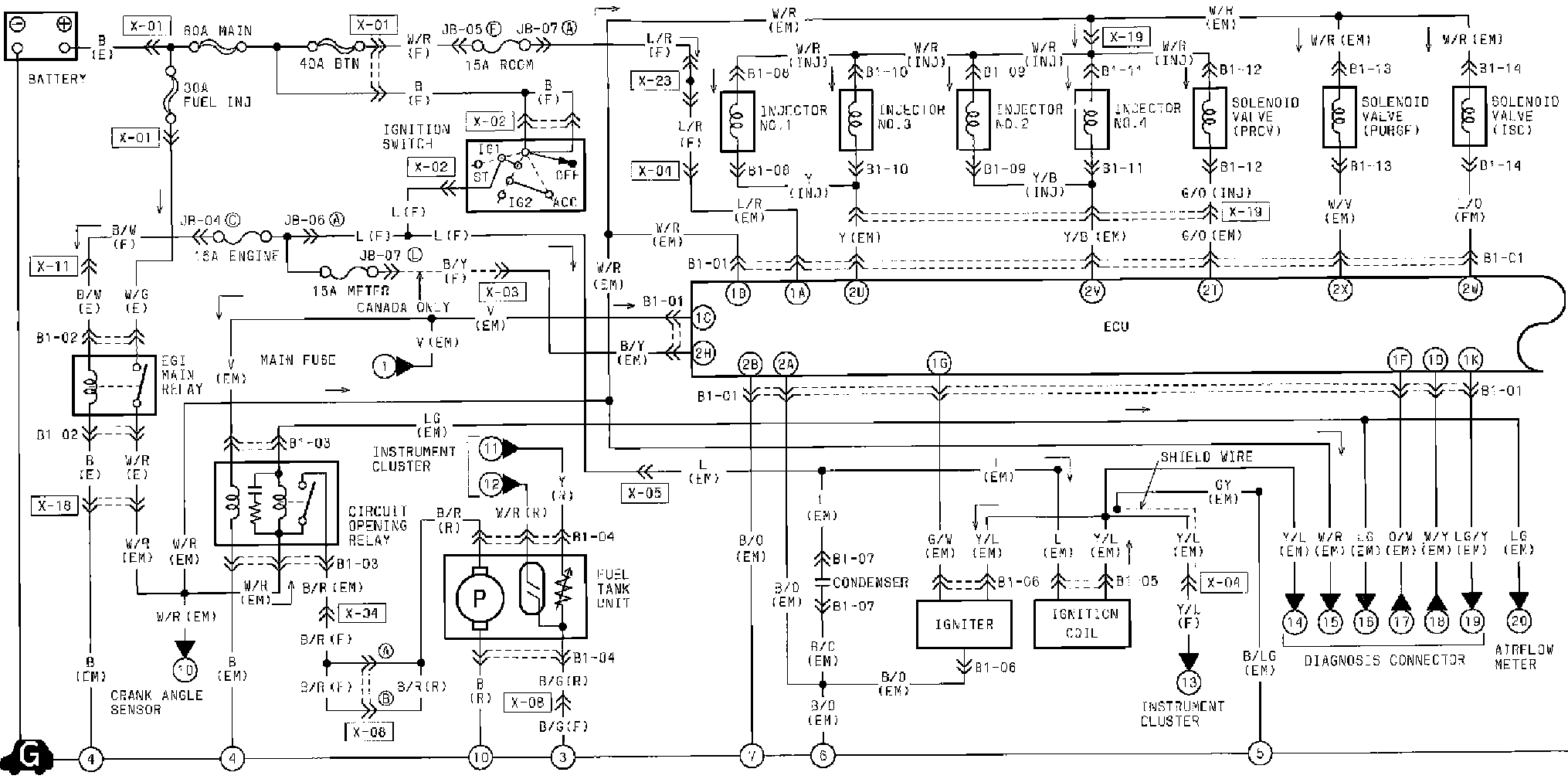

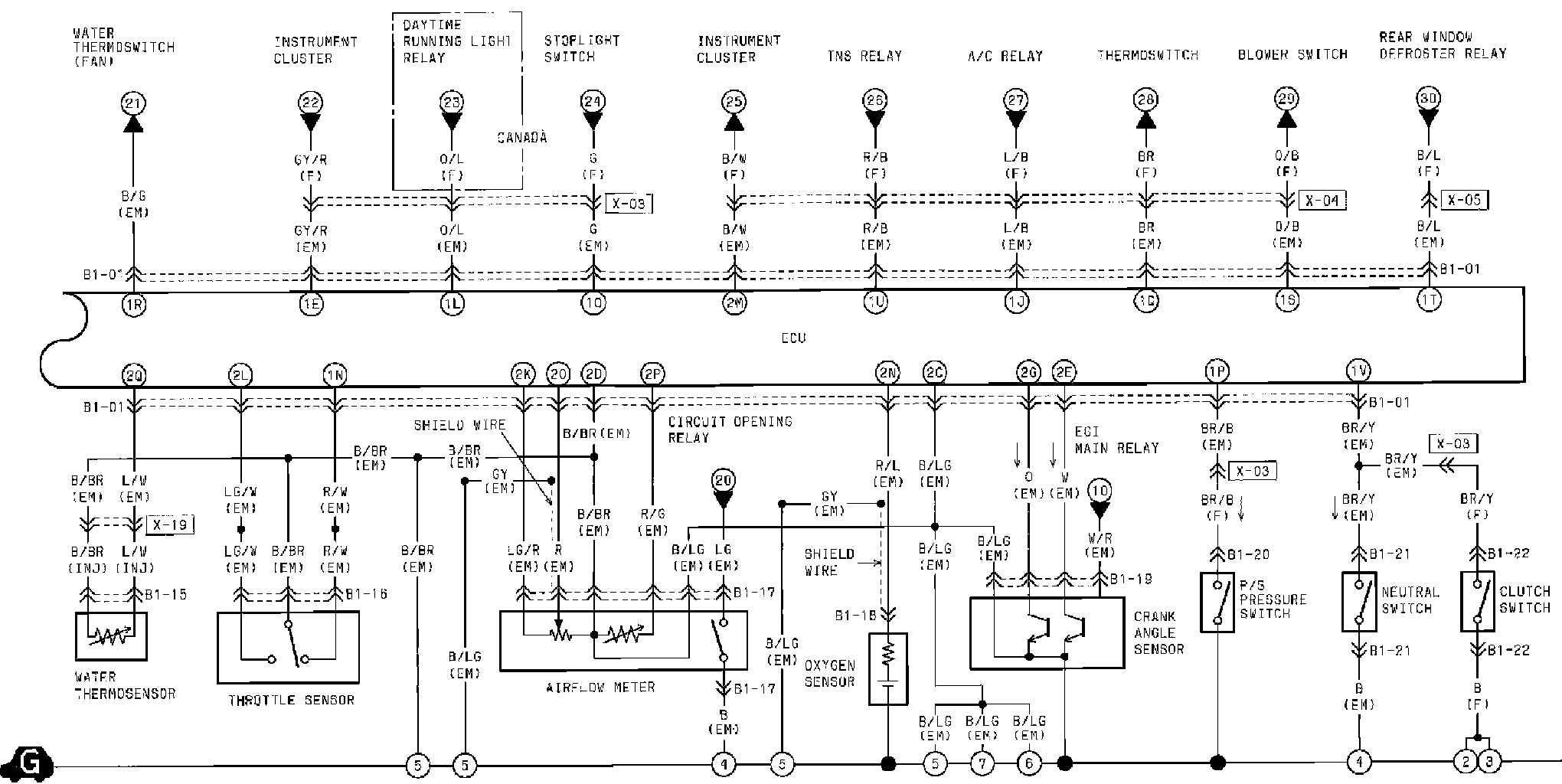

Engine Management, Fuel Control, And Ignition System:

Engine Management:
