Home
>>
Mazda
>>
1993
>>
MX-3 L4-1597cc 1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Joint Box & Fuse
Joint Box & Fuse

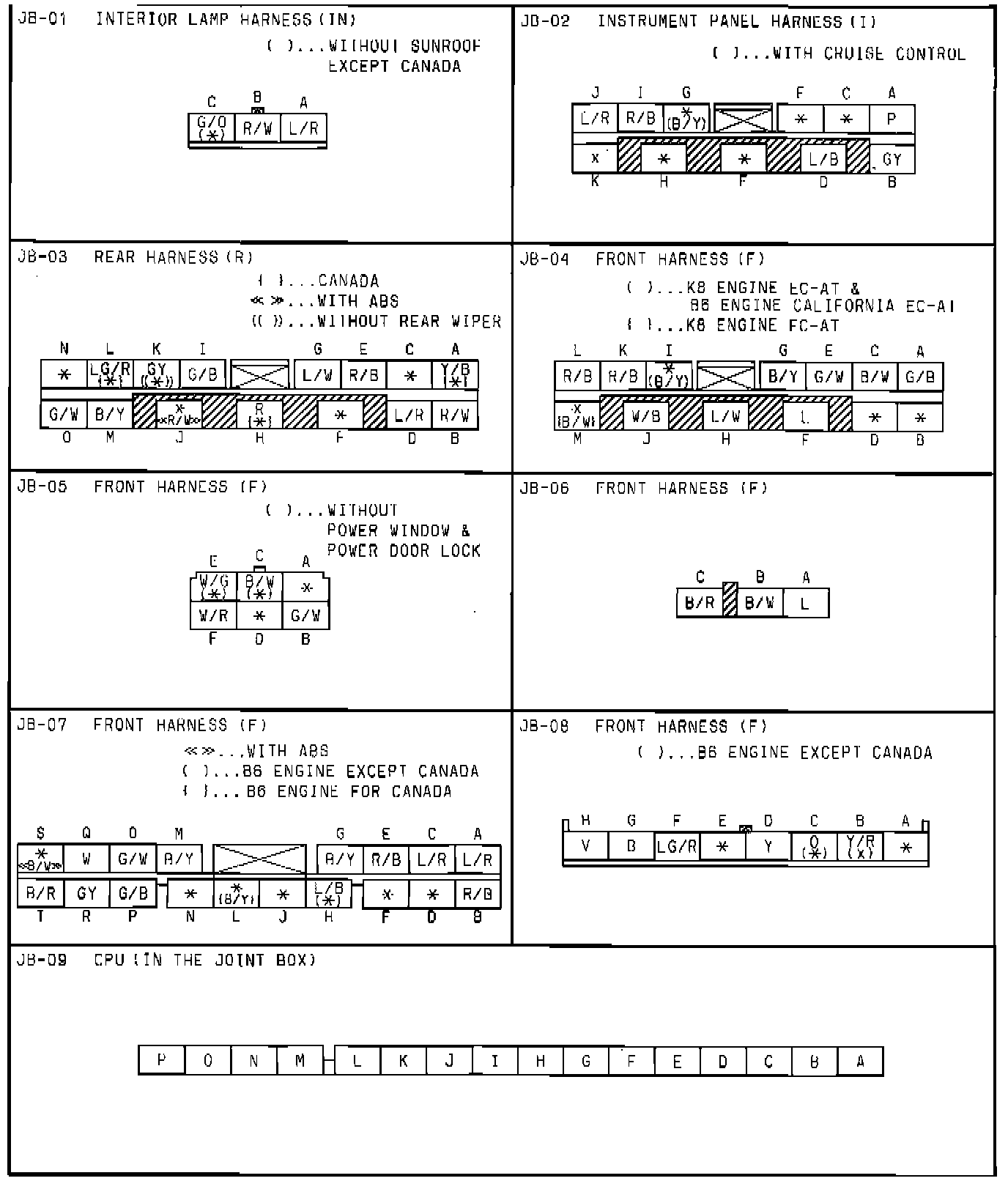

Joint Box Connectors:

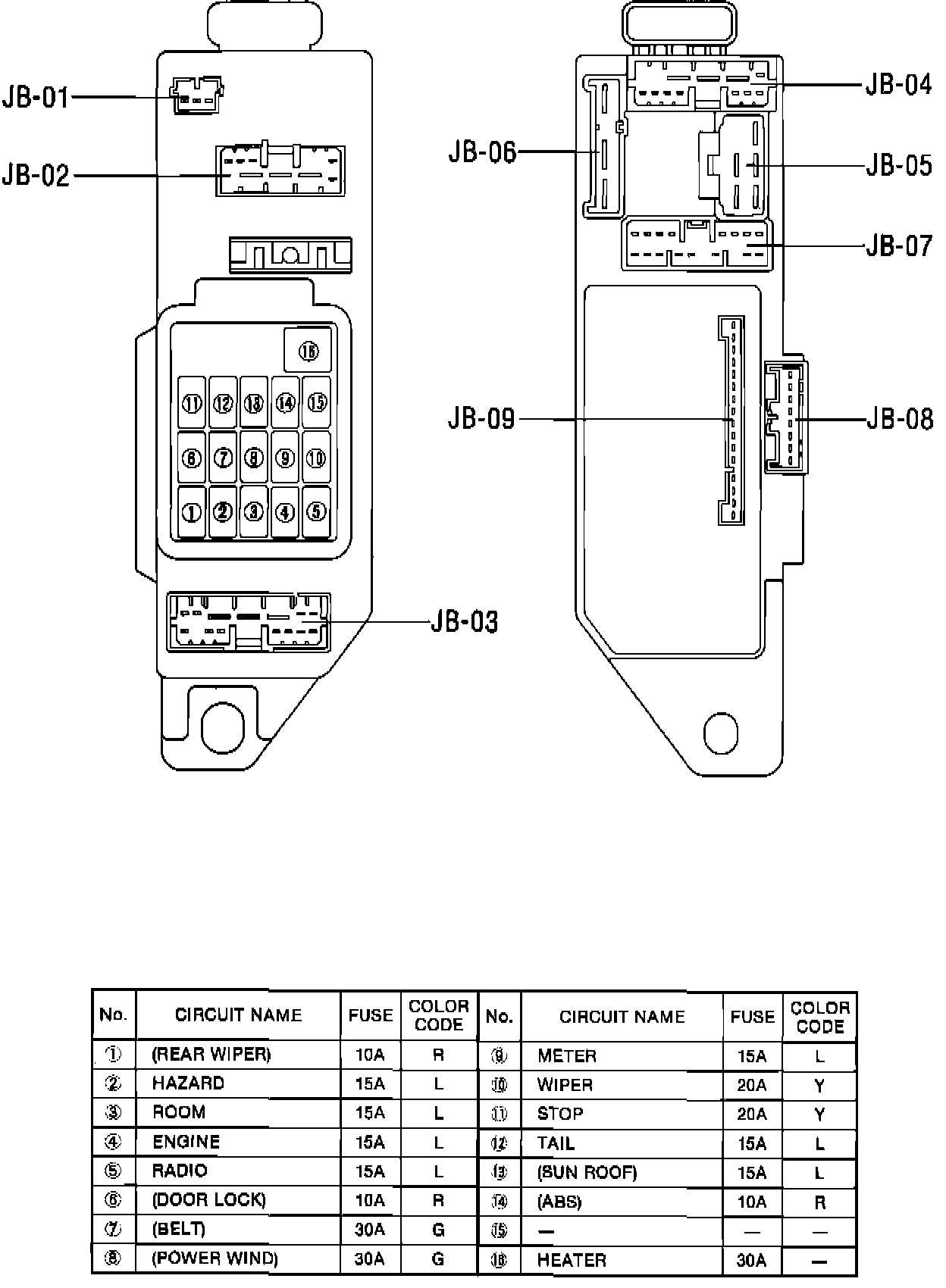

Joint Box:
