Throttle Cable/Linkage: Service and Repair

Accelerator Pedal And Cable R&R:

^ Remove in order shown.
^ Reverse procedure to install.
^ Adjust accelerator cable play after replacement. Refer to Adjustments.

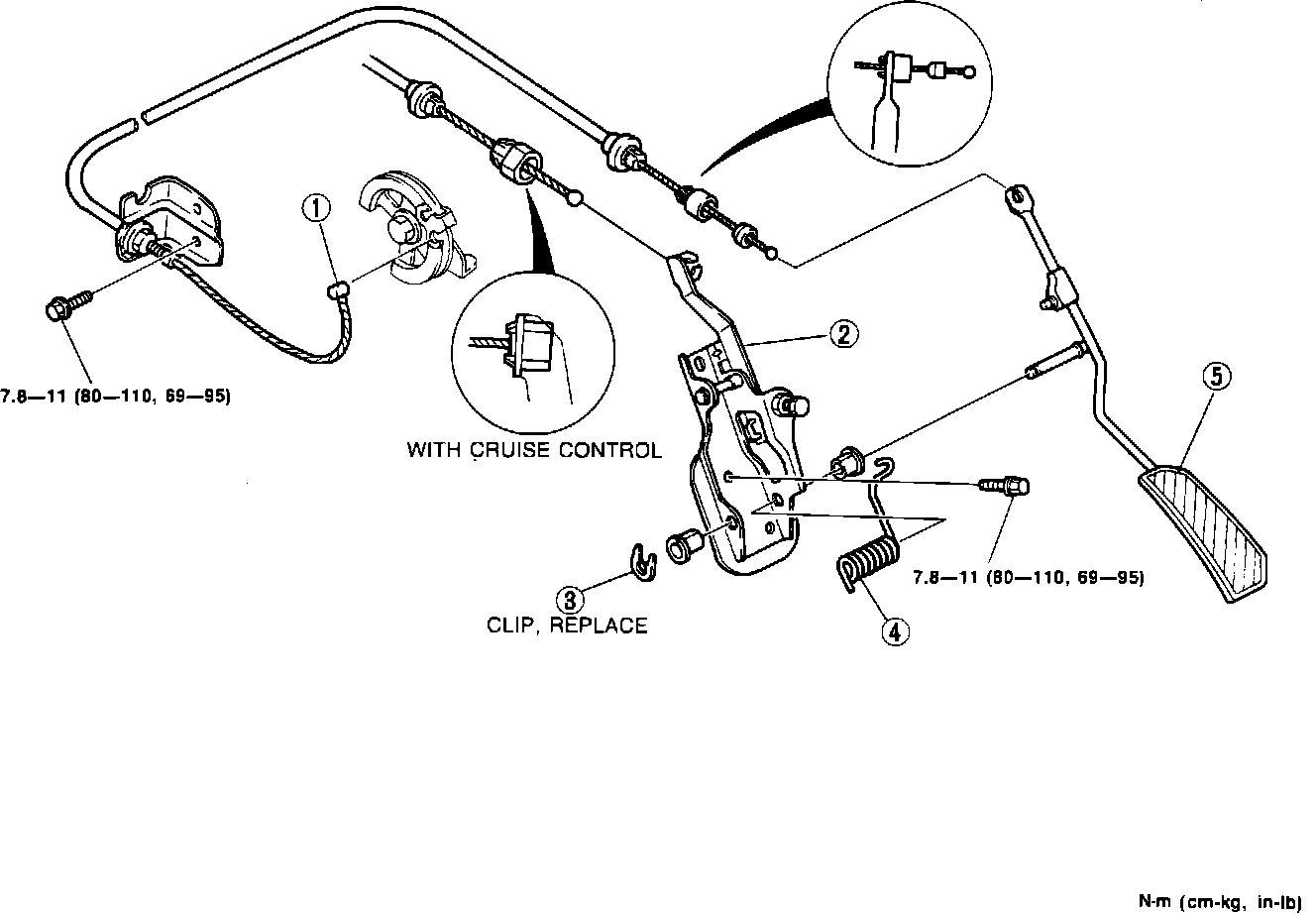

COMPONENTS

1. Accelerator cable
2. Retainer
3. Clip
4. Return spring
5. Accelerator pedal
