Fuel Pressure Control Solenoid: Description and Operation

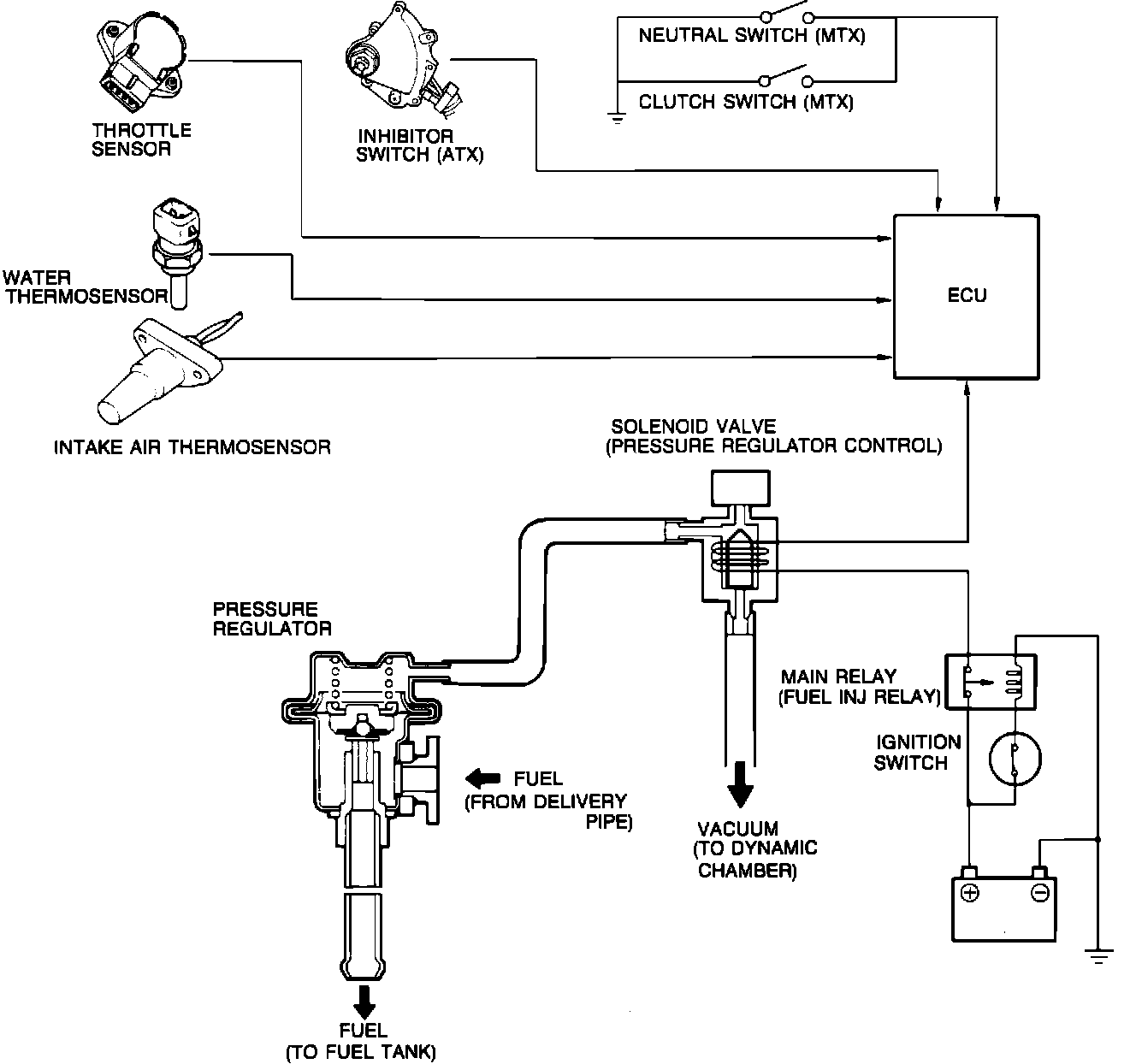

Pressure Regulator Control System:

The Pressure Regulator Control Solenoid Valve, attached to the top right side of the intake manifold, is an ECU controlled component of the pressure regulator control (PRC) system. This system is used on California specification vehicles.

The PRC system raises fuel pressure to prevent fuel percolation during hot engine restart. Under specified conditions, the ECU closes the solenoid valve to block vacuum to the fuel pressure regulator. This allows the pressure regulator to control fuel pressure without vacuum modulation. Fuel pressure is raised to slightly more than 284 kPa (41 psi).

Under the following conditions, the ECU activates the PRC system for approximately 120 seconds after starting:

^ Coolant temperature above 90°C (194°F).
^ Intake air temperature above 50°C (122°F).
^ Throttle valve fully closed.
