Home >> Mazda >> 1992 >> Protege L4-1839cc 1.8L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Service and Repair

Instrument Cluster / Carrier: Service and Repair

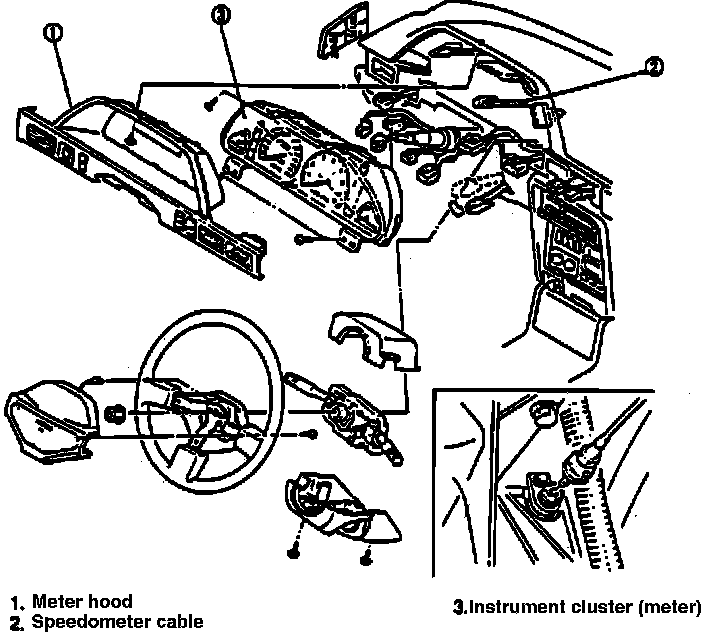

Fig. 2 Instrument Cluster Replacement.:

Refer to Fig. 2, for instrument cluster replacement procedure.
