Symptom Charts



F4A-EL Transmission

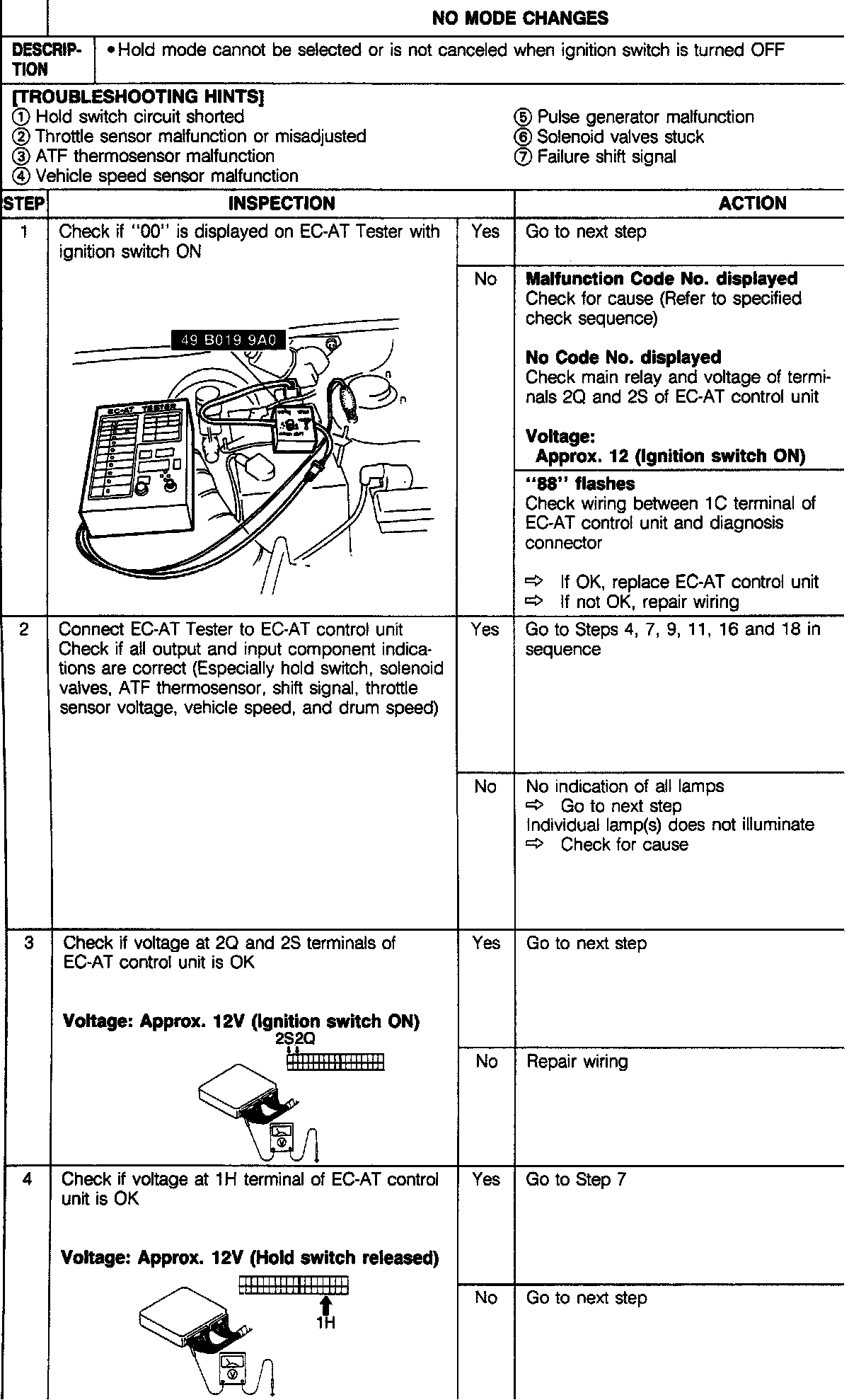

STEP 1-4

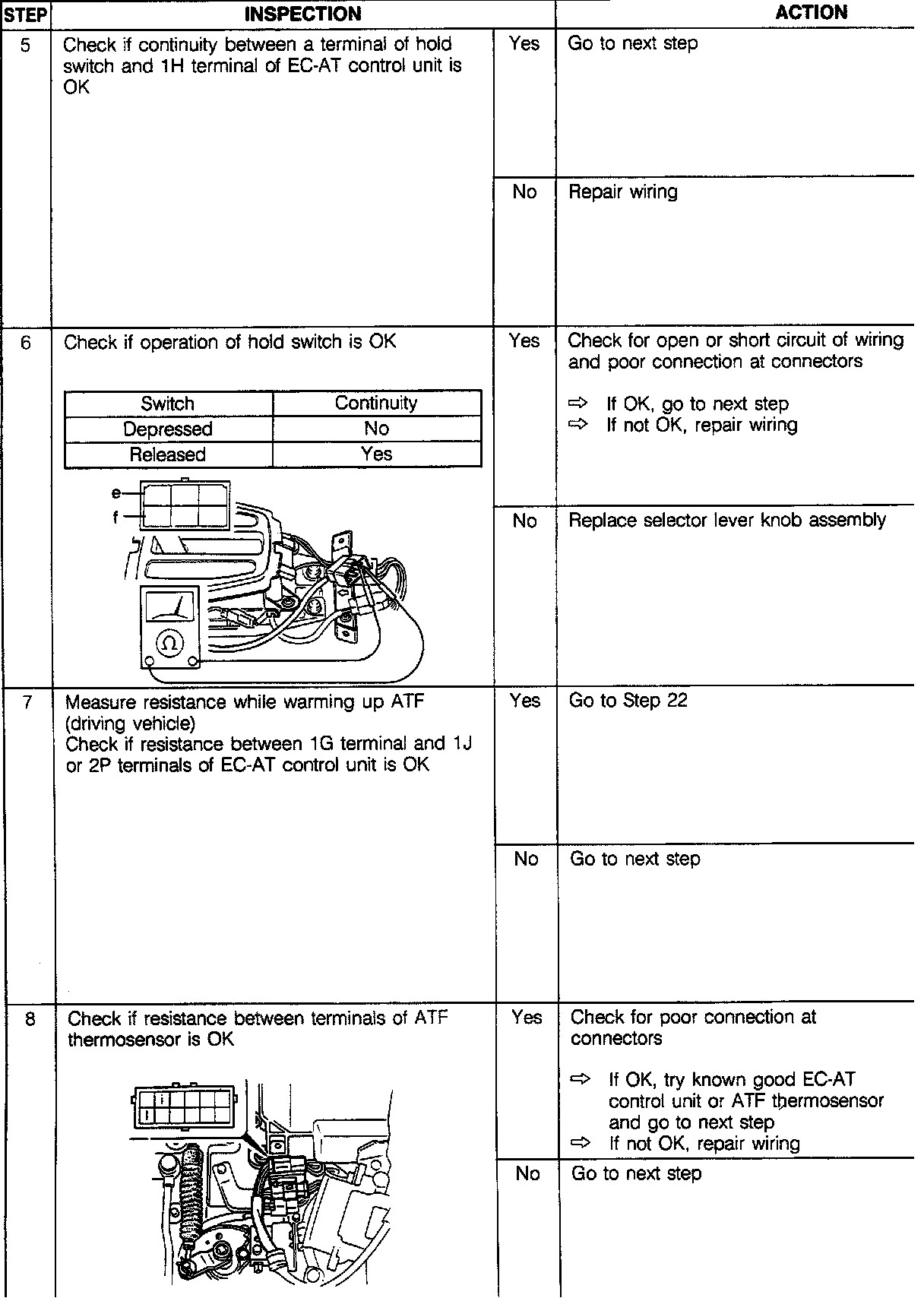

STEP 5-8

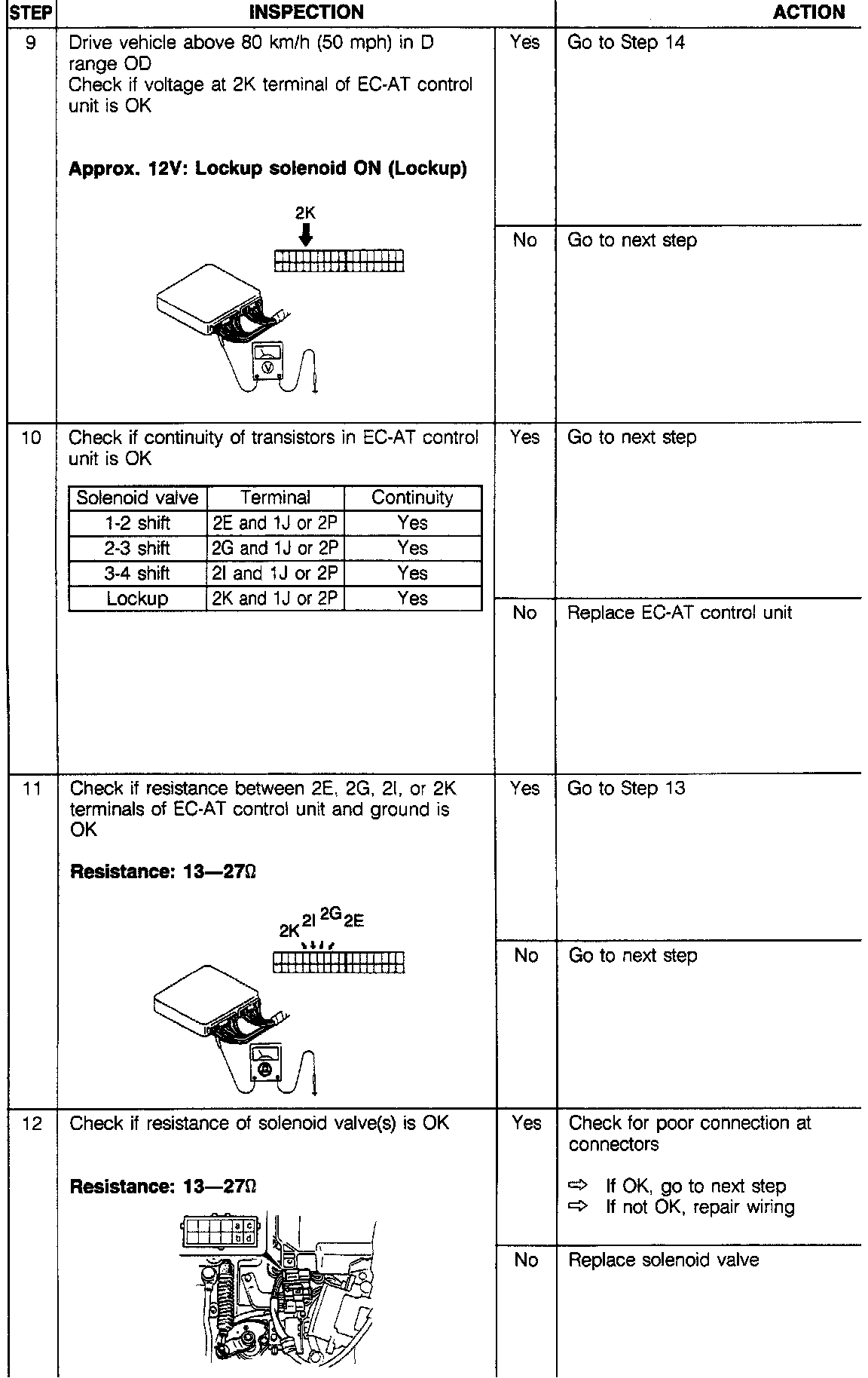

STEP 9-12

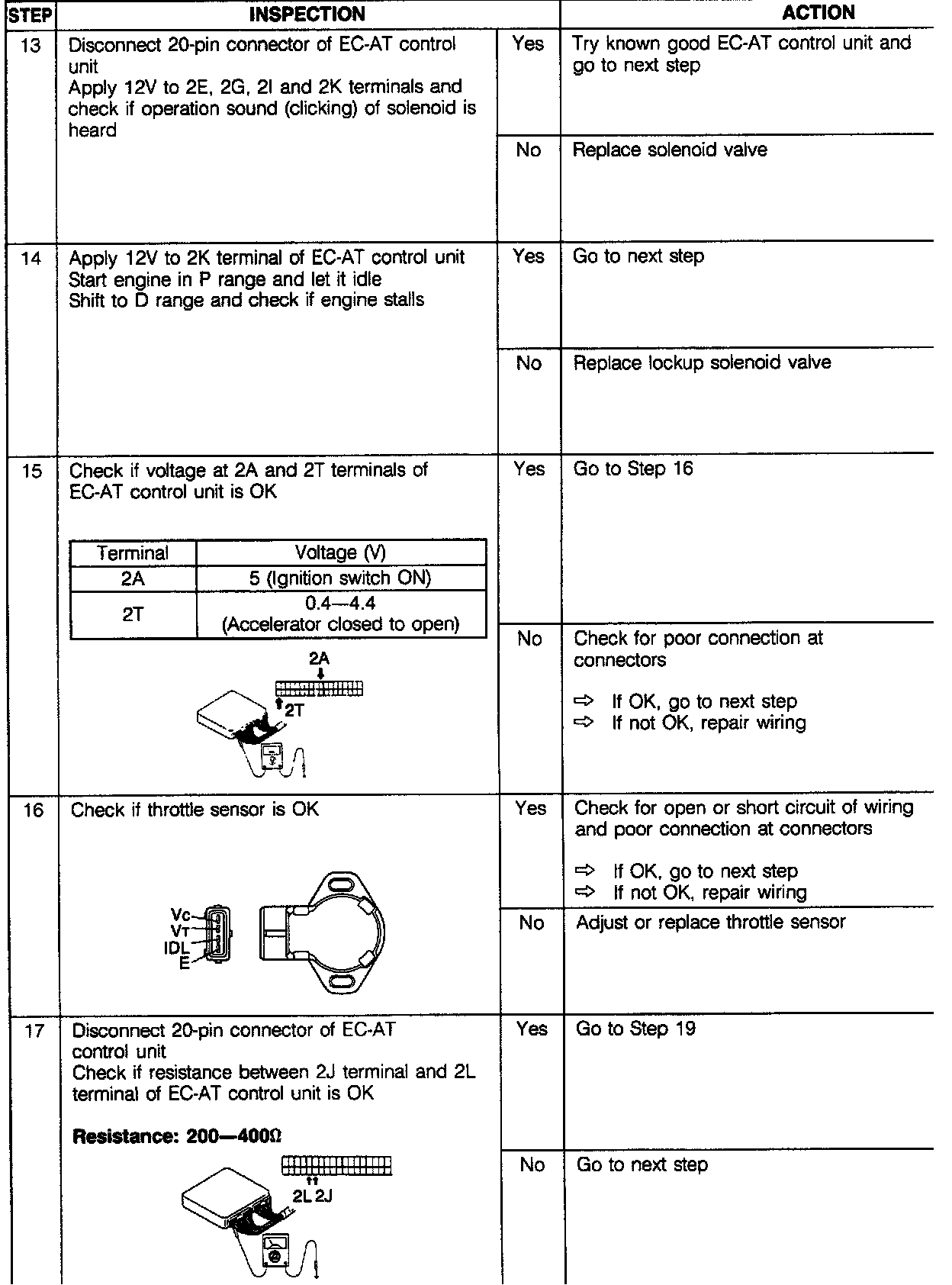

STEP 13-16

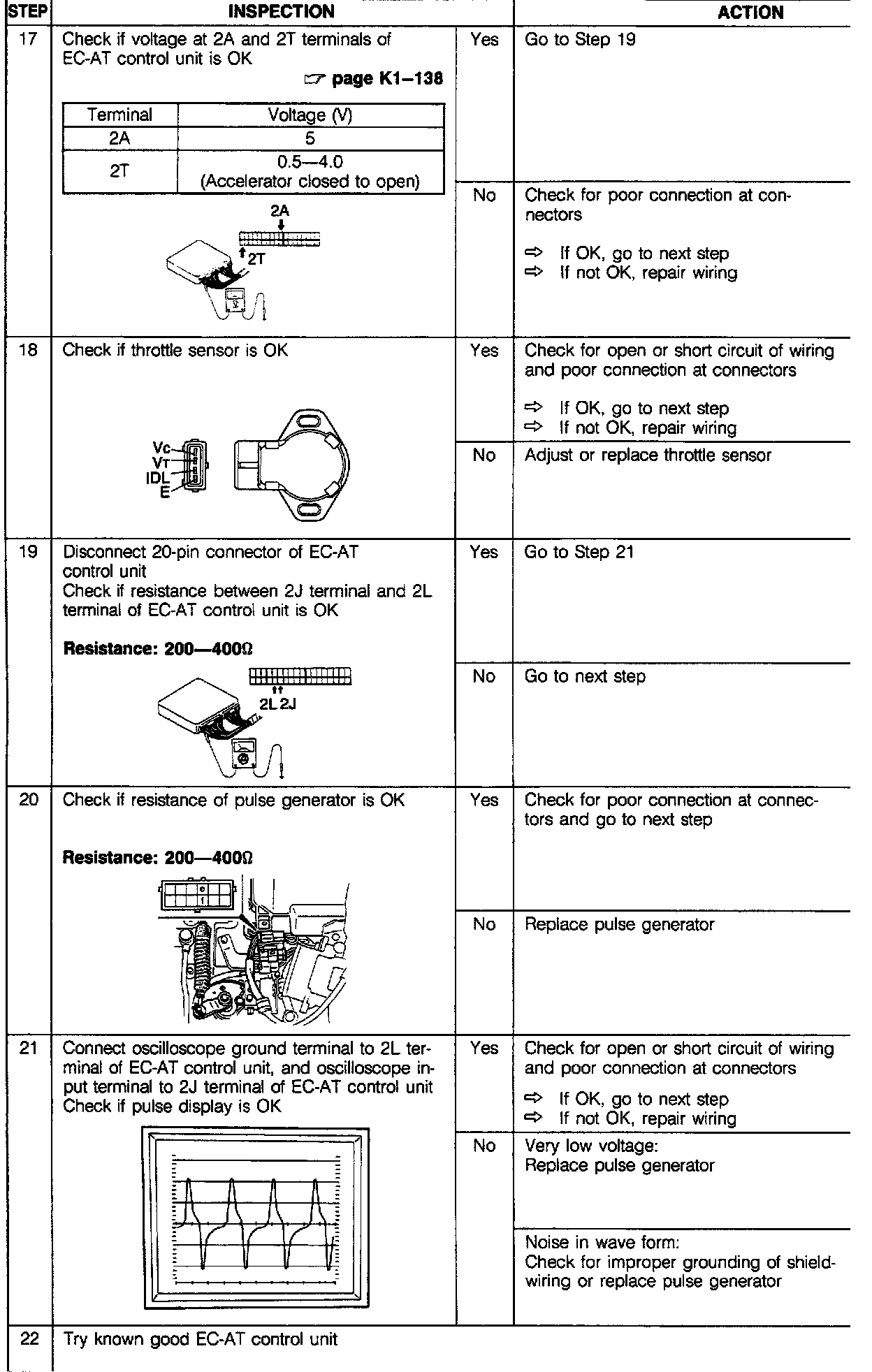

STEP 18-22

G4AX-EL Transmission

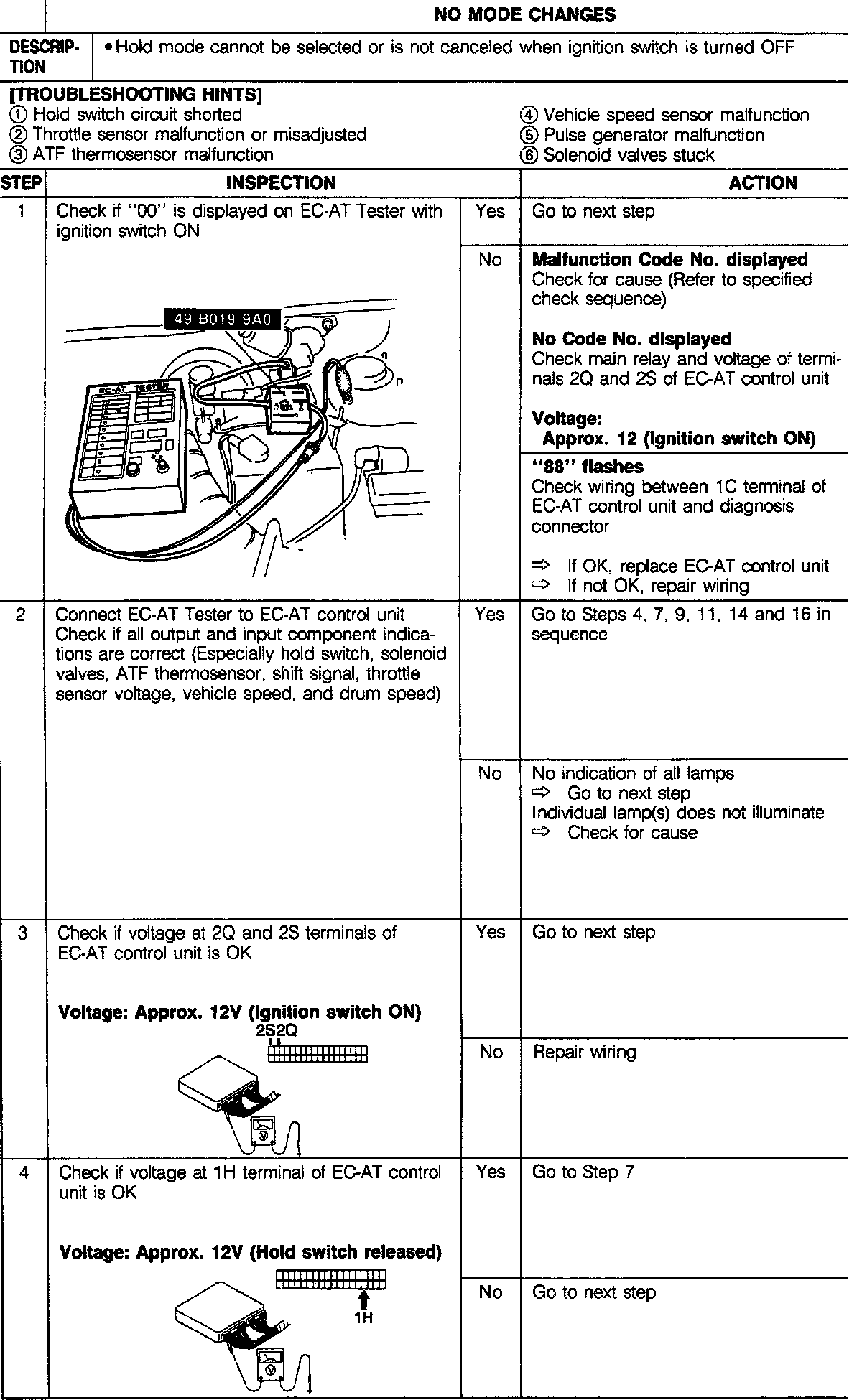

STEP 1-4

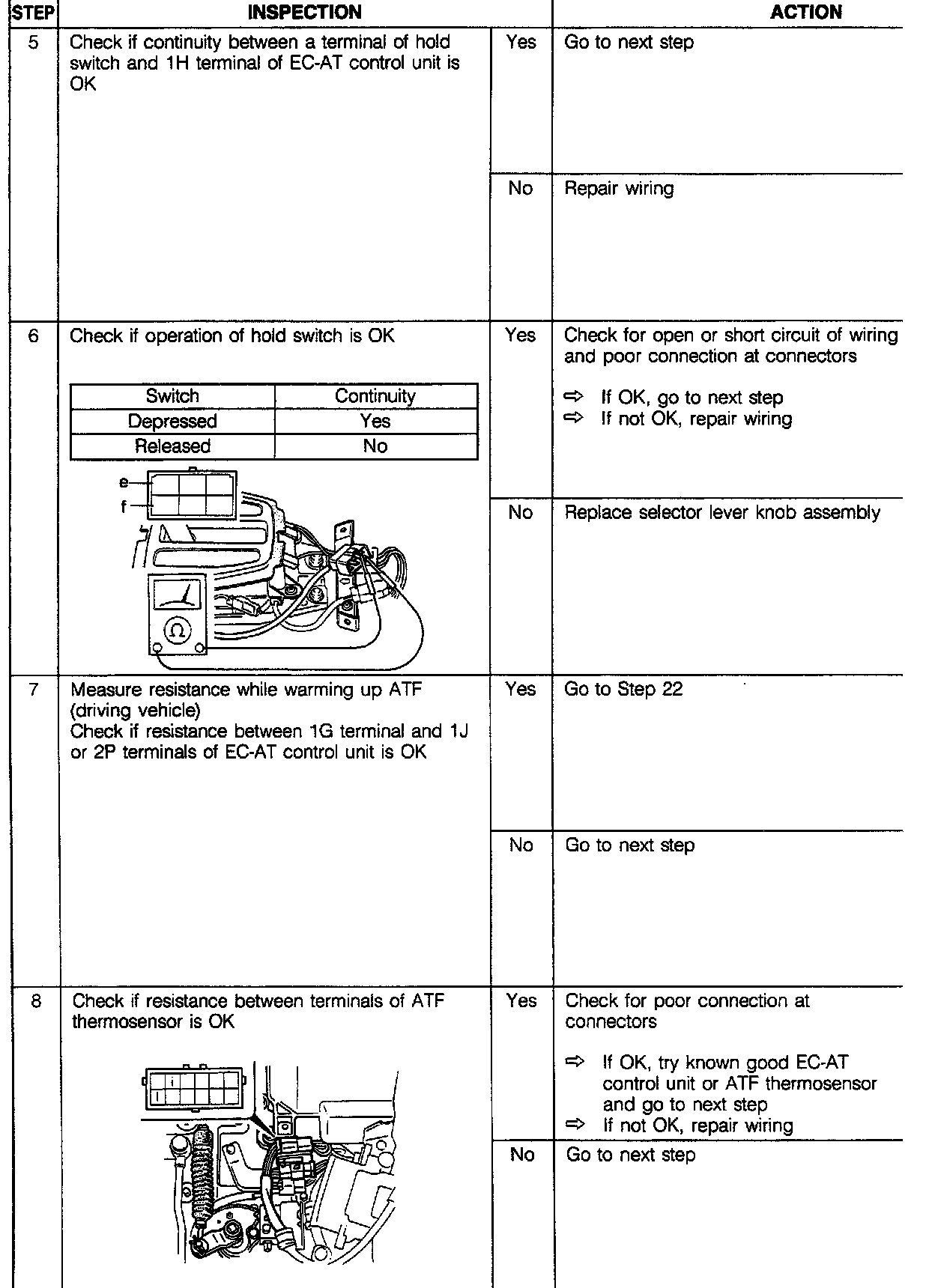

STEP 5-8

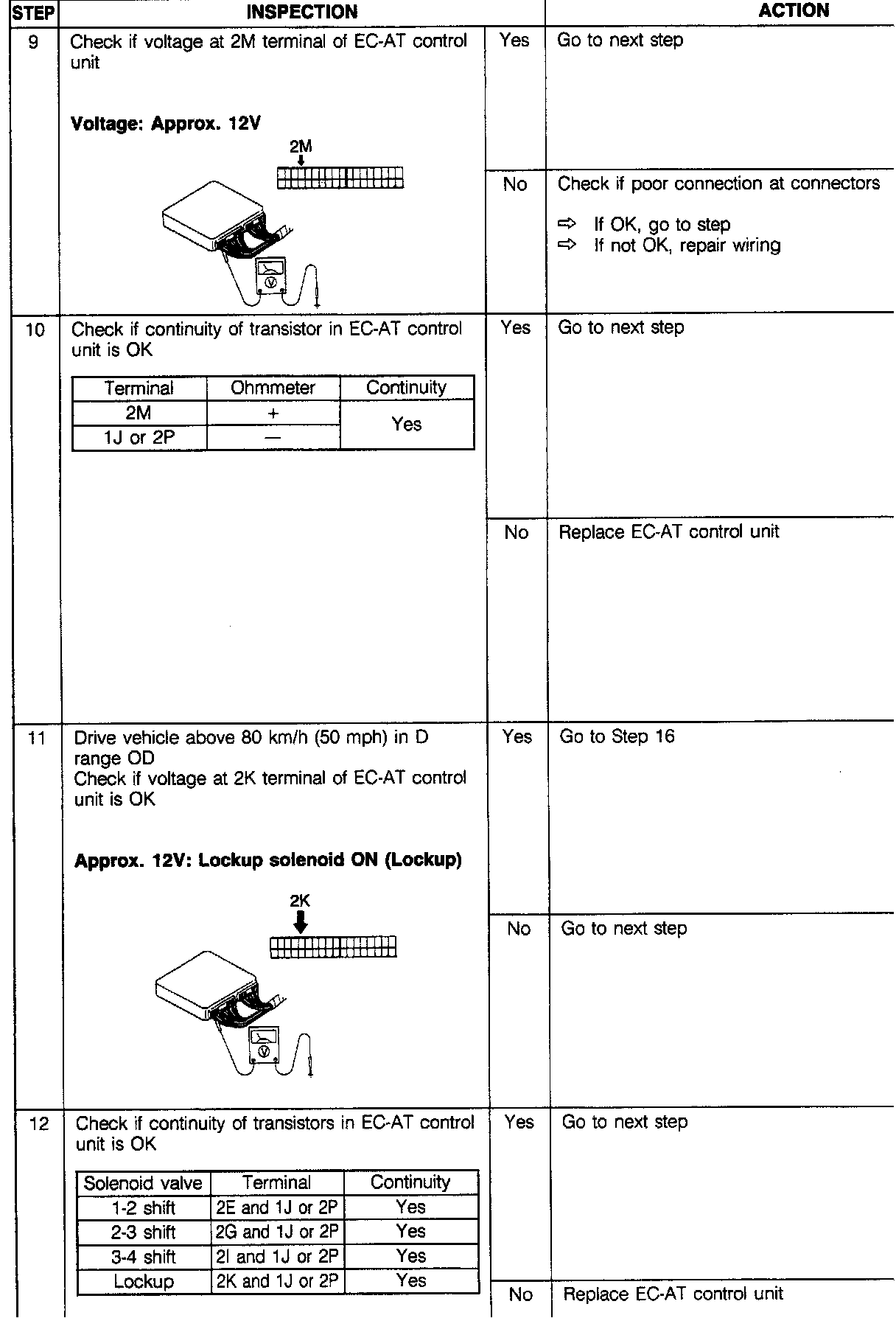

STEP 9-12

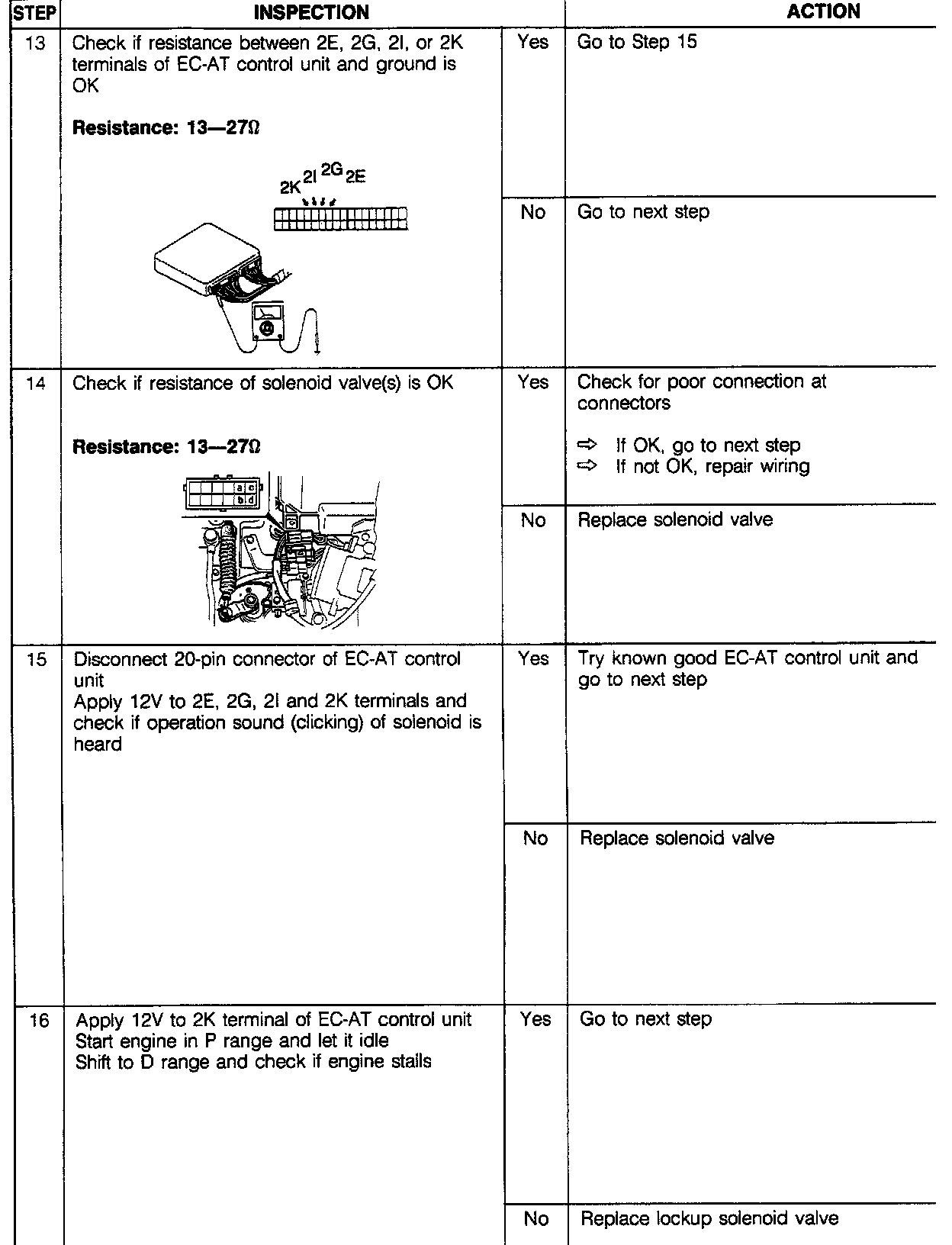

STEP 13-17

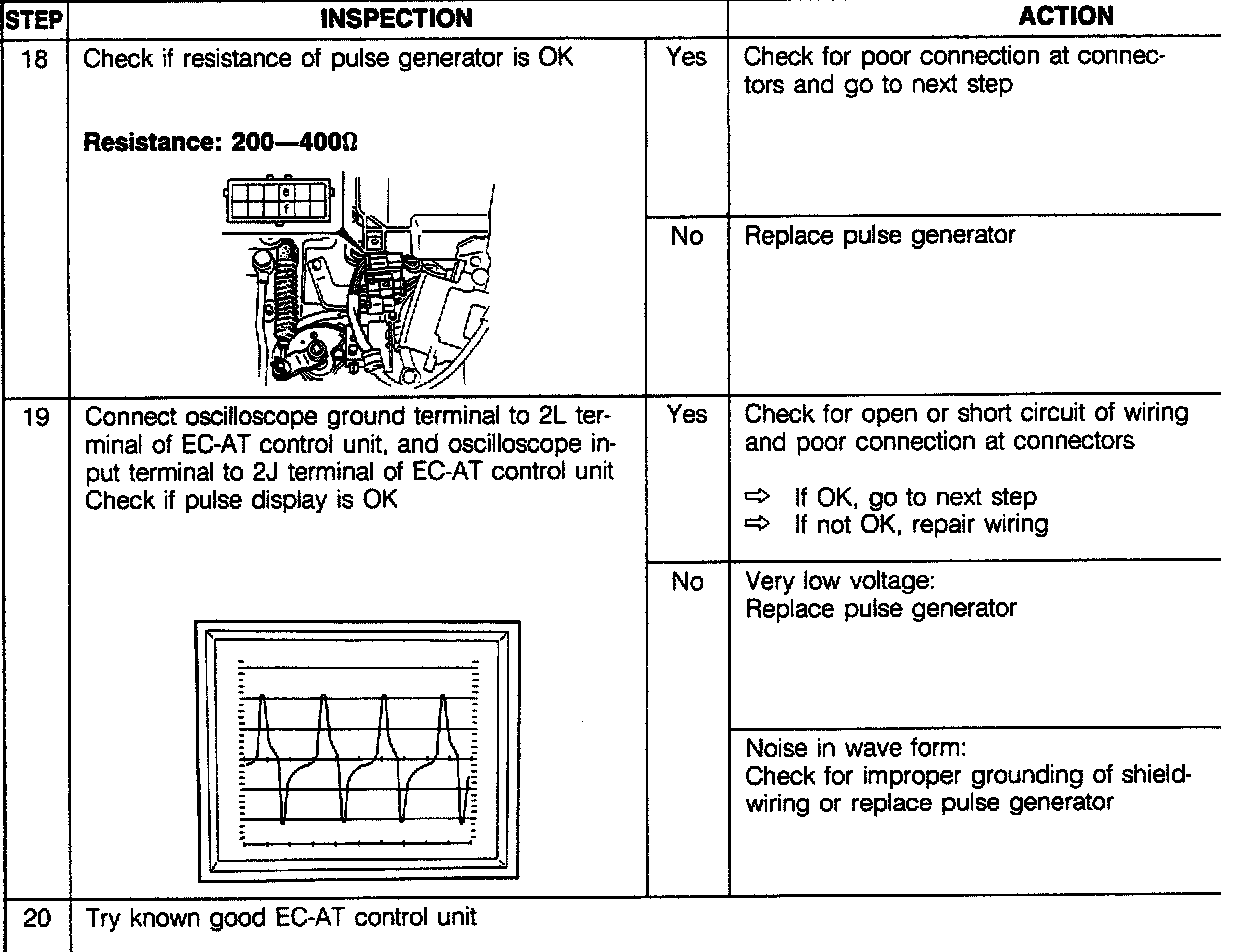

STEP 18-20
