Oil Pan: Service and Repair

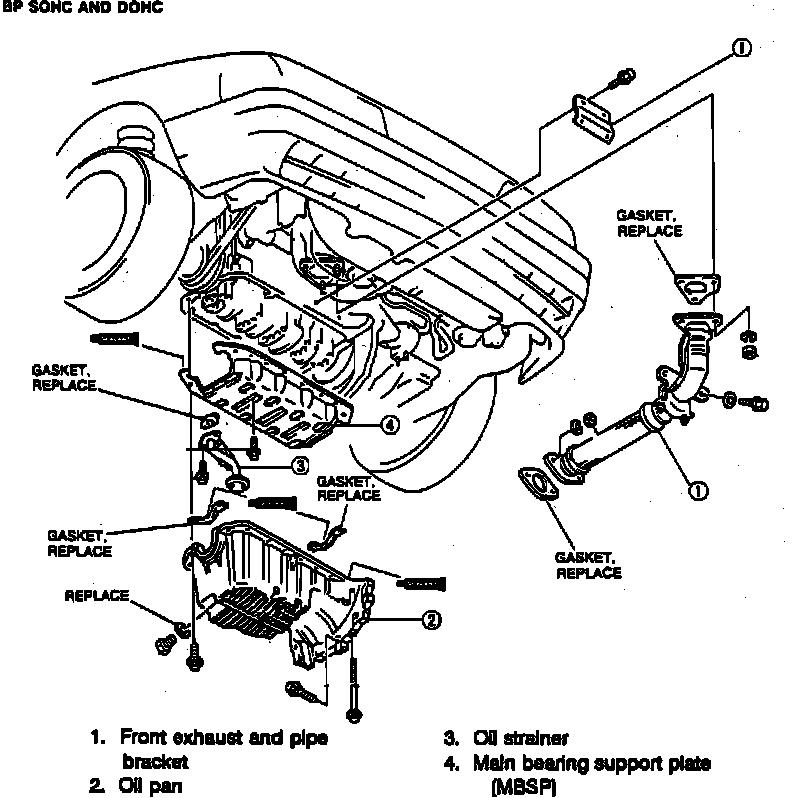

Fig. 106 Oil Pan Replacement. 1990-92 1.8L/4-112 Engine:

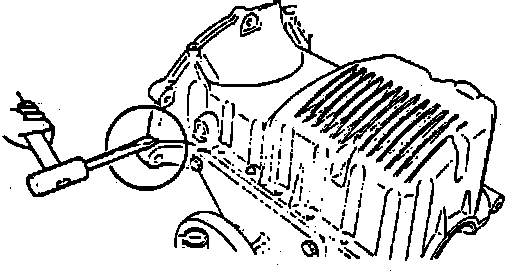

Fig. 85 Oil Pan Removal:

1. Remove oil pan in numbered sequence, Fig. 106, noting the following:
a. Remove oil pan by prying only at points shown in Fig. 85.
b. Remove main bearing support plate mounting bolt to main bearing cap, then the main bearing support plate.

Fig. 106 Oil Pan Replacement. 1990-92 1.8L/4-112 Engine:

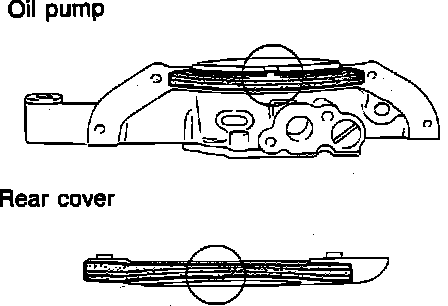

Fig. 104 Oil Pump Body & Rear Cover Gasket Installation:

2. Install oil pan reversing numbered sequence, Fig. 106, noting the following:
a. Apply continuous bead of sealant to main bearing support plate along inside of bolt holes.
b. If old oil pan mounting bolts are used, remove sealant from bolt threads.
c. Install gaskets onto oil pump body and rear cover with projections in notches, Fig. 104.
