DTC 41
DTC 41

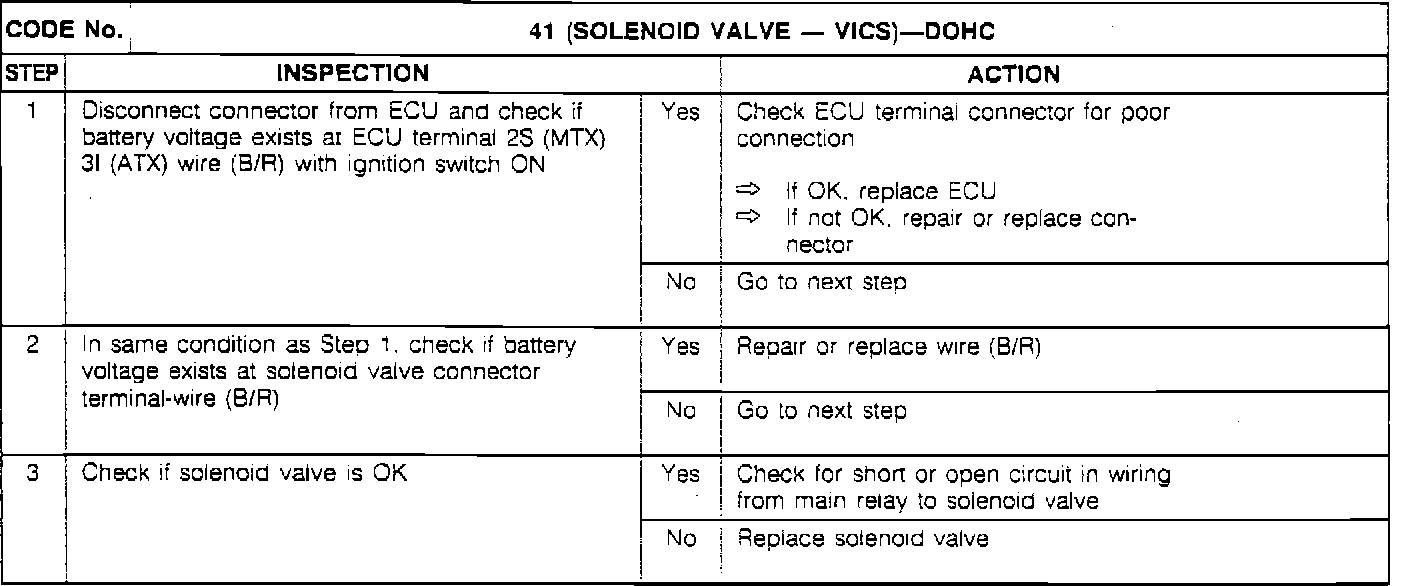

Code No.41 Diagnostic Chart:
DIAGNOSTIC CHART
Circuit Diagram For Control Solenoids:
CIRCUIT DIAGRAM
