MX-6 L4-2184cc 2.2L SOHC F2
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Turn Signals
>>
Locations
>>
Connector Locations
Connector Locations

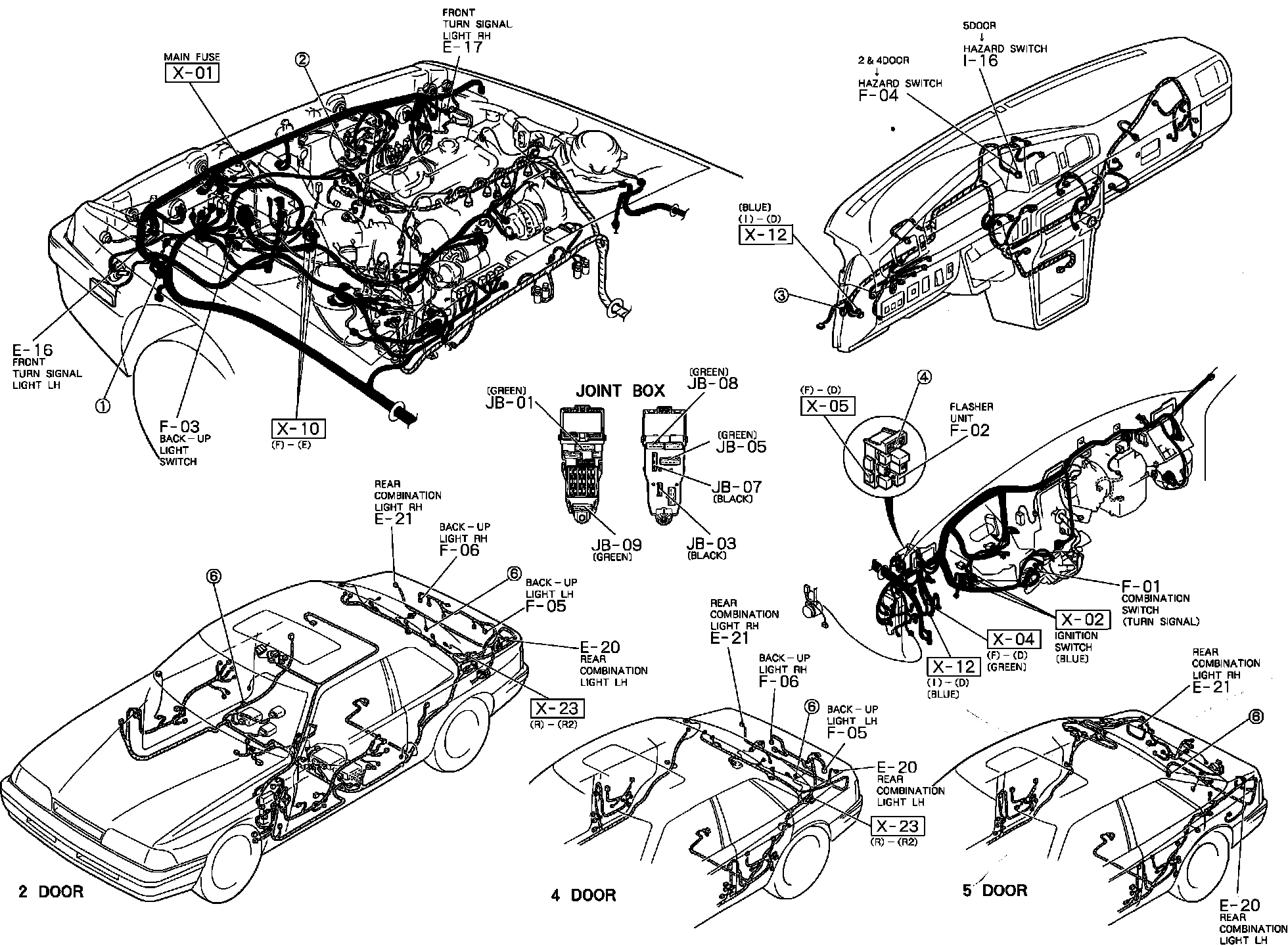

Back-Up, Turn And Hazard Flasher Lights. Harness And Connector Locations:
