Wiper Motor: Service and Repair

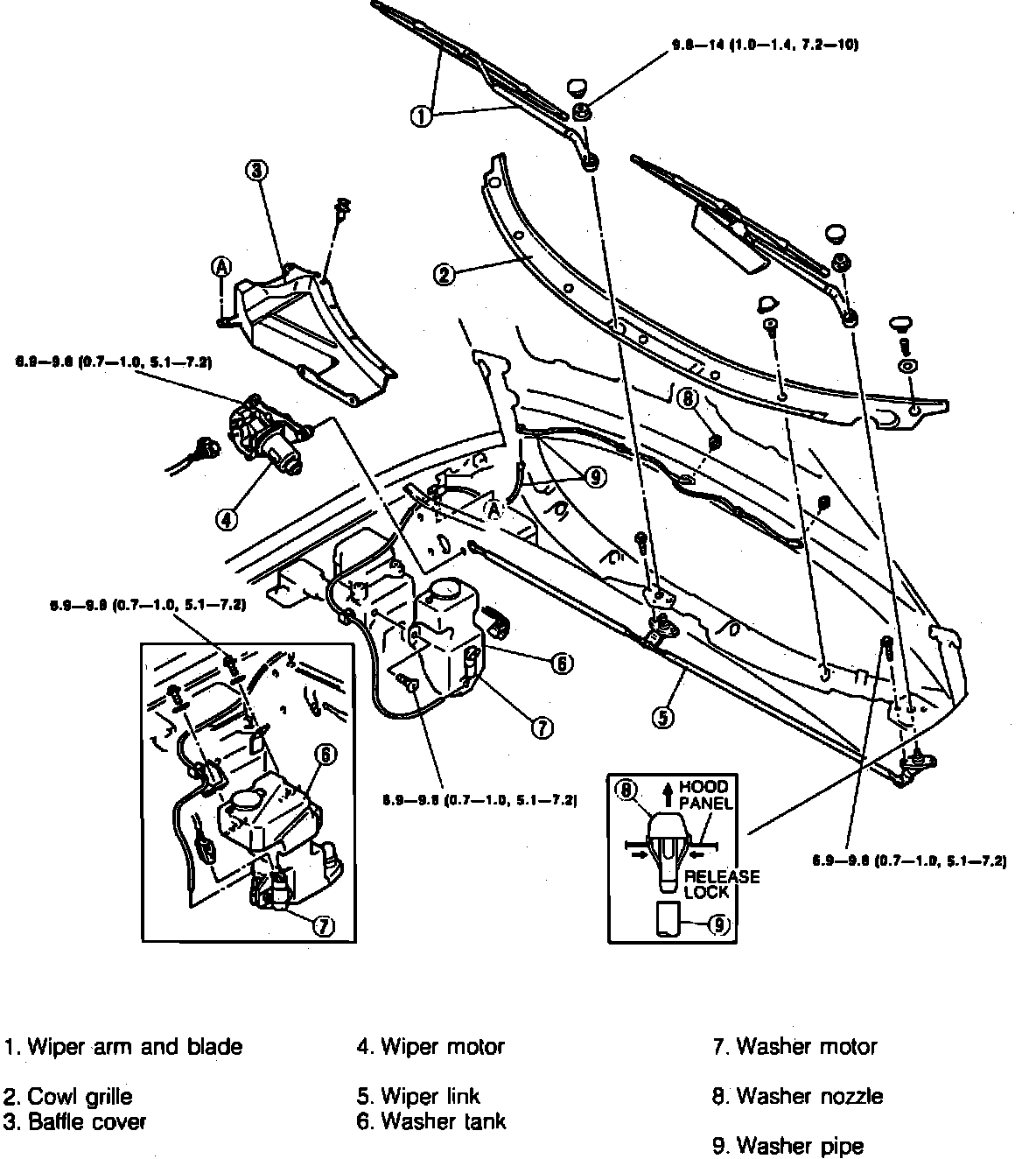

Fig. 9 Exploded View Of Wiper Assembly:

1. Prior to disconnecting battery ground cable, deactivate audio system anti-theft, if equipped, refer to Accessories and Optional Equipment/Radio, Stereo, and Compact Disc/Service and Repair.
2. Disconnect battery ground cable.
3. Remove baffle cover, Fig. 9.
4. Disconnect wiper motor electrical connector.
5. Remove motor attaching bolts, then the wiper motor.
6. Reverse procedure to install.
