Upper Arm

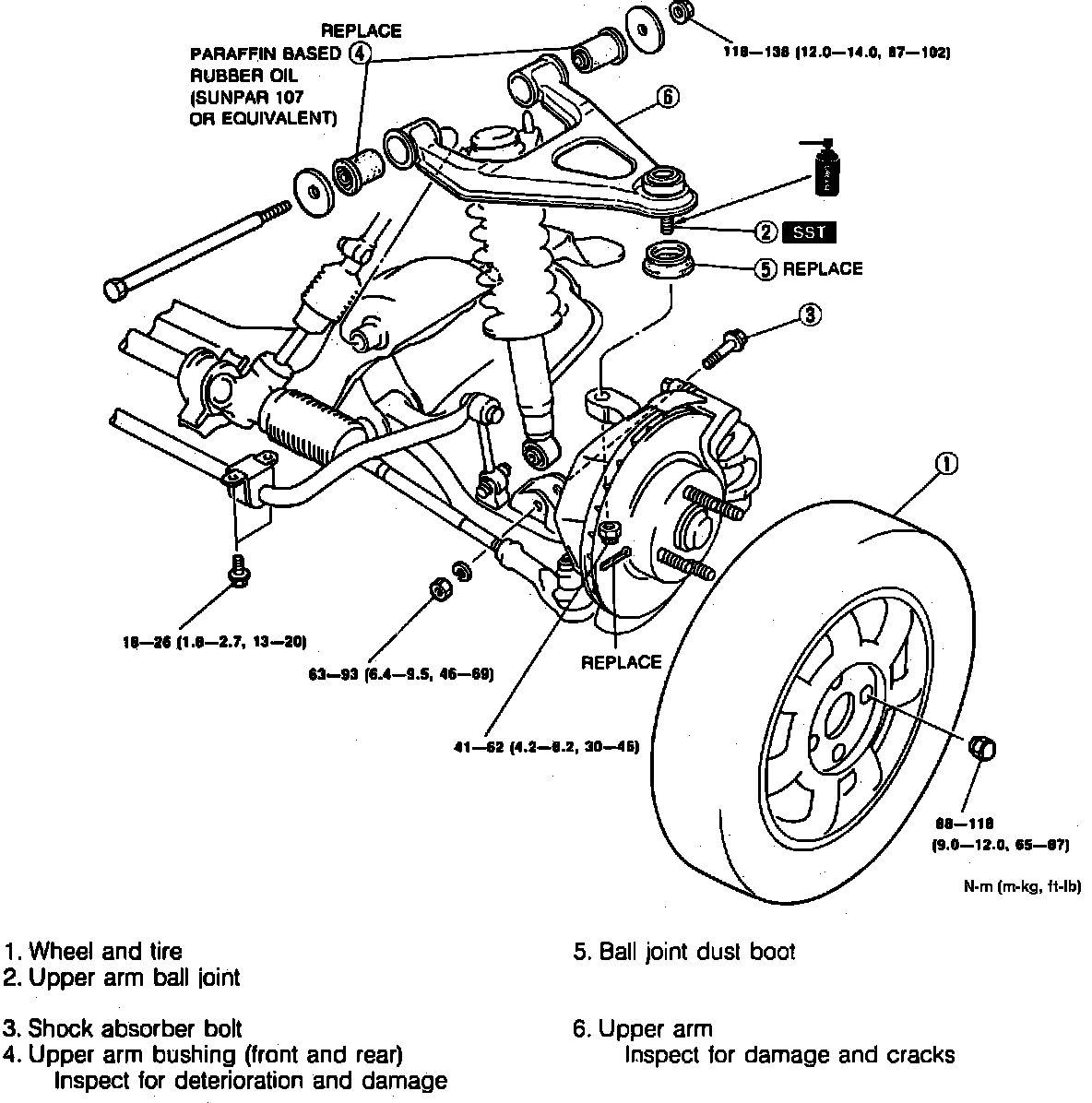

Fig. 4 Upper Arm & Related Components:

1. Raise and support vehicle.
2. Remove wheel and tire.
3. Remove components in numerical sequence shown, Fig. 4.
4. Reverse procedure to install, noting the following:
a. When installing loosely tighten lower arm, shock absorber, and stabilizer control link bolts.
b. Using puller tool No. 490118850C or equivalent, separate ball joint from knuckle.
