Lower Arm

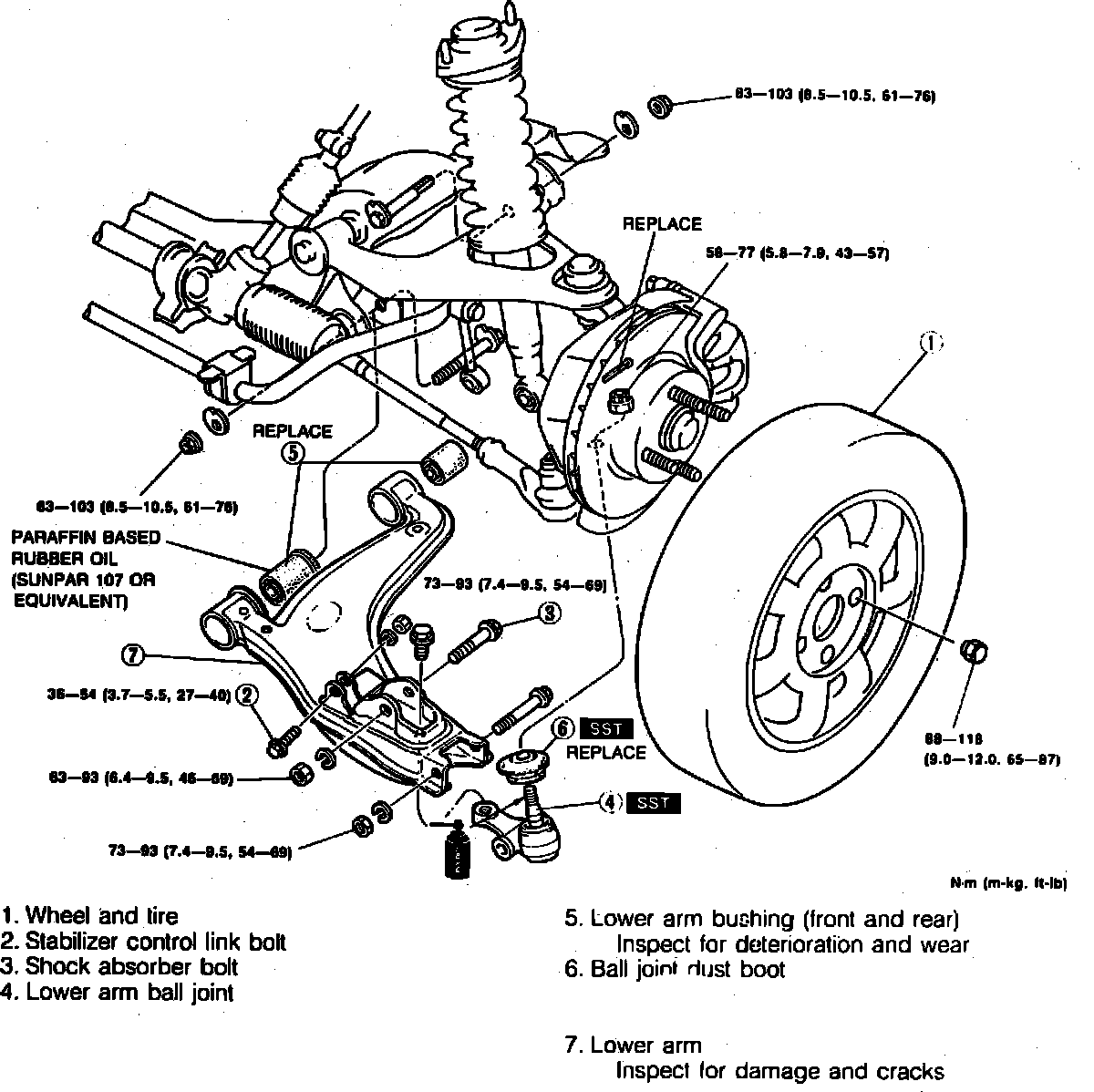

Fig. 3 Lower Arm & Related Components:

1. Raise and support vehicle.
2. Remove wheel and tire.
3. Remove components in numerical sequence shown, Fig. 3.
4. Reverse procedure to install, noting the following:
a. When installing loosely tighten lower arm, shock absorber, and stabilizer control link bolts.
b. Using puller tool No. 490727575 or equivalent, separate ball joint from knuckle.
