Accelerator Pedal: Adjustments

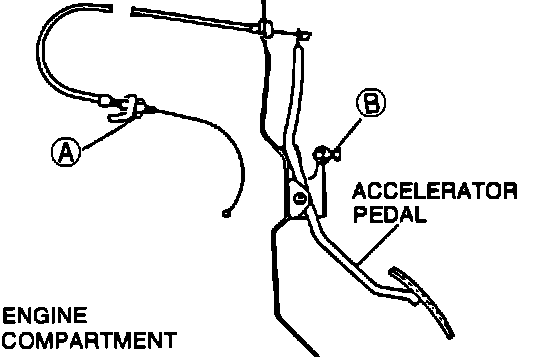

Accelerator Pedal And Cable Adjustment:

1. Check cable deflection between end of sheath and cable attachment at throttle body. If it exceeds 0.039 - 0.118 in (1 - 3 mm), adjust by turning nut "A."
2. Depress accelerator pedal to floor and verify that throttle valve opens fully. If not, adjust bolt "B."
