Home >> Mazda >> 1992 >> MX-5 Miata L4-1597cc 1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp

Courtesy Lamp

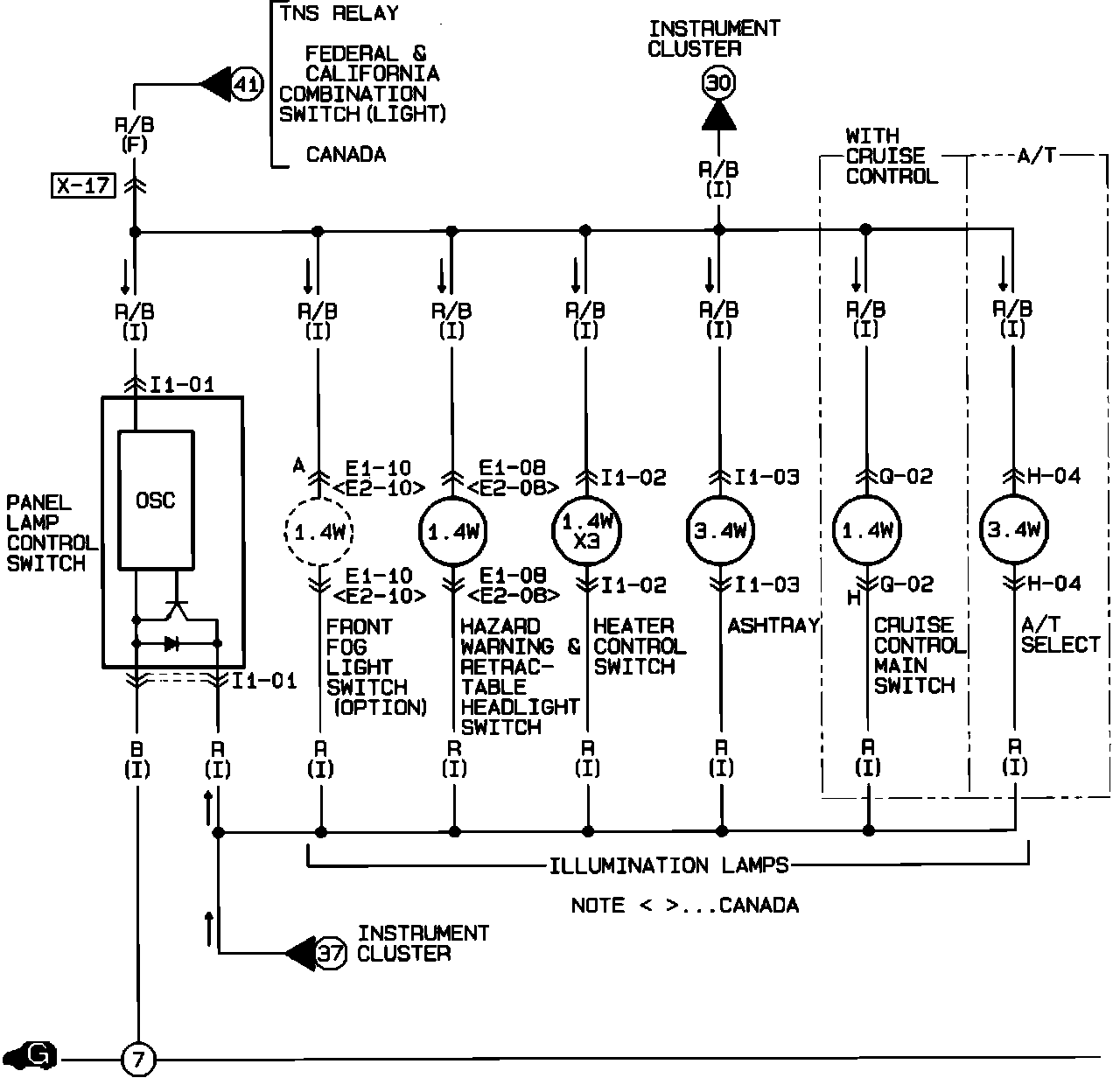

Panel Lamp Control System.:

Interior Lamps. Cigar Lighter And Rear Window Defogger.:
